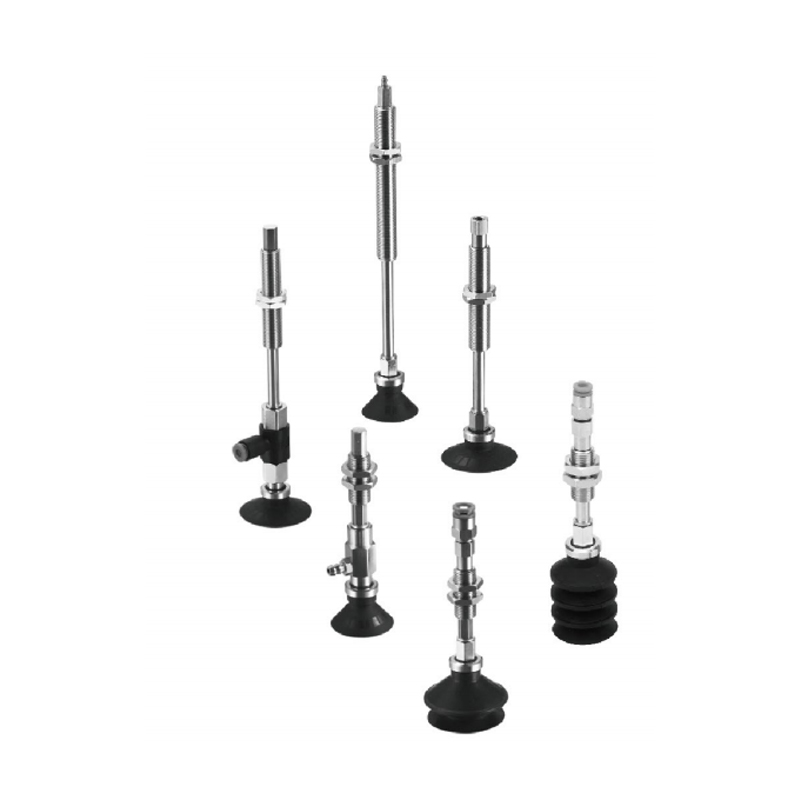

ZP-serien Vakuumsugkopp med snäppring, adapter & buffertfäste (Ø9~Ø50) är en vakuumsugkoppsenhet med integrerad låsringsmekanism och buffertfunktion, som är lämplig för sugkoppar med olika specifikationer (Ø9~Ø50) för att uppnå stabilt grepp och arbetsstyckets skydd.

Kärnfunktioner
1. Låsning och anti-fall design: Den inbyggda mekaniska låsringen drar automatiskt åt sugkoppen för att undvika oavsiktligt bortfall orsakat av negativa tryckfluktuationer.
2. Flexibel buffertstruktur: Det inbyggda elastiska elementet absorberar arbetsstyckets kontaktpåverkan och minskar risken för skador på precisionsytan.
3. Modulärt adaptergränssnitt: Det standardiserade gränssnittet för gänga/snabbbyte är kompatibelt med vanliga vakuumsystem och stöder snabbt utbyte av sugkoppsspecifikationer.
4. Tunn och kompakt layout: Designen med låg installationshöjd är lämplig för layout med små utrymmen och optimerar ändbelastningen på robotarmen.
5. Brett utbud av täckning för arbetsförhållanden: Lämplig för konventionella undertrycksförhållanden, kompatibel med hantering av icke-porösa material som metall/glas/plast.

E-post: manager@cktworld.com
Ladda ner
FÖREGÅENDE：Ingen tidigare artikel
NÄSTA：ZP-serien vakuumsugkopp med låsring (Ø9~Ø50)

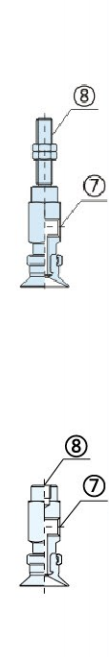

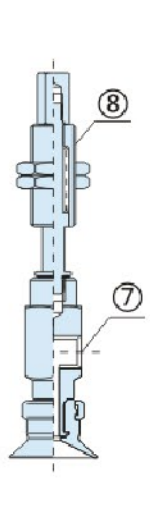

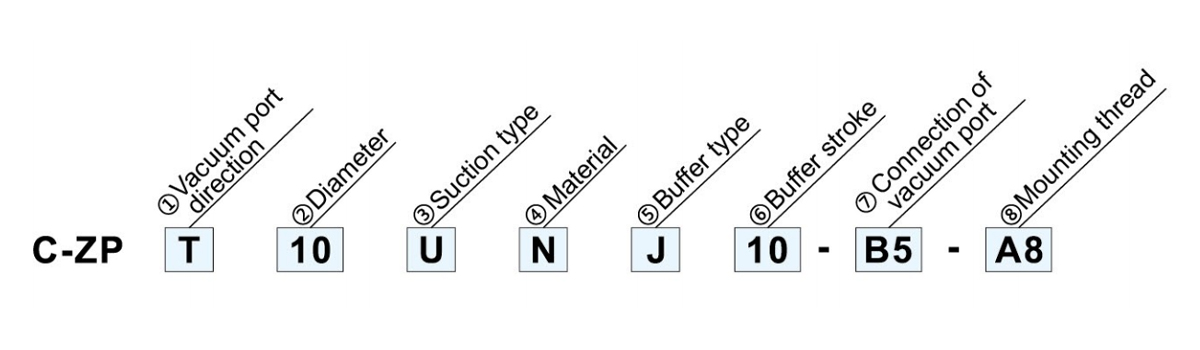

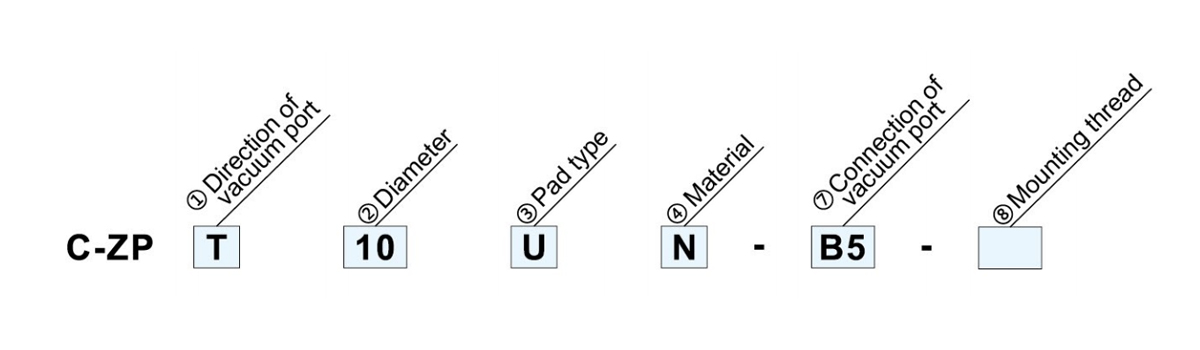

  • ④Material□ ② Diameter（mm）○/③Sugtyp☆ E* F* G*
    N NBR 09 10 13 14 16 20 25 30 32 40 50
    S Silikon Ø9 Ø10 Ø13 Ø14 Ø16 Ø20 Ø25 Ø30 Ø32 Ø40 Ø50
    U Platt - ● ● - ● ● ● - ● ● ●
    C Med revben - ● ● - ● ● ● - ● ● ●
    D Djupt - ● - - ● - ● - - ● -
    ① Riktning för
    vakuumport     		B 2   bälg - ● ● - ● ● ● - ● ● ●
    J 3/4 bälg ● - - ● ● - ● ● - - -

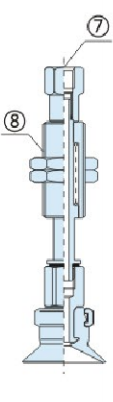

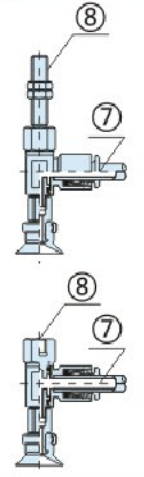

    T Vertikal ⑦Anslutning av vakuumport Yttergänga A5 M5×0,8 ● - -
    A6 M6×1,0 ● ● ●
    A8 M8×1,0 - ● ●
    A01 R1/8 ● ● ●
    Invändig gänga B5 M5×0,8 ● ● -
    B6 M6×1,0 ● ● ●
    B8 M8×1,25 - ● ●
    B01 Rc1/8 ● ● ●
    R Lateral Snabbkoppling 04 Ø4 ● ●
    06 Ø6 ● ● ●
    08 Ø8 - ○ ●
    ⑧Montering gänga Utvändig tråd A5 M5×0,8 ● - -
    A6 M6×1,0 ● ● ●
    A8 M8×1,0 - ● ·
    Interntråd B5 M5×0,8 ● ● -
    B6 M6×1,0 ● ● ●
    B8 M8×1,25 - ● ●
    Y ⑦ Anslutning av vakuumport◇ B5 M5×0,8 ● ● ●
    Hullingspassning U4 φ4 PU slang ● ● -
    N4 φ4 Nylonslang ● ● -
    U6 φ6 PU slang ● ● ●
    N6 φ6 nylonslang ● ● ●
    Yttre sexkantssnabbkoppling 03 Ø3 ● - -
    23 Ø3,2 ● - -
    04 Ø4 ● ● -
    06 Ø6 ● ●
    Inre sexkantssnabbkoppling 03S Ø3 ● - -

    23S

    		Ø3,2 ● - -
    04S Ø4 ● ● -
    06S Ø6 ● ● ●
    ⑧ Monteringsgänga Externt
    tråd     		A5 M5×0,8 ● - -
    A6 M6×1,0 ● ● ●
    A8 M8×1,0 - ● ●
    Invändig gänga B5 M5×0,8 ● ● -
    B6 M6×1,0 ● ● ●
    B8 M8×1,25 - ● ●

    Sugkoppar är gummikomponenter och åldrande är oundvikligt. Åldringshastigheten beror på faktorer som användningsmetoder, miljö och temperaturförhållanden. Regelbundet underhåll bör utföras. Om skador, sprickor, sprickor eller slitage inträffar ska sugkoppen bytas ut omedelbart. När du byter ut sugkoppen ska du inte skada dess yttre yta.

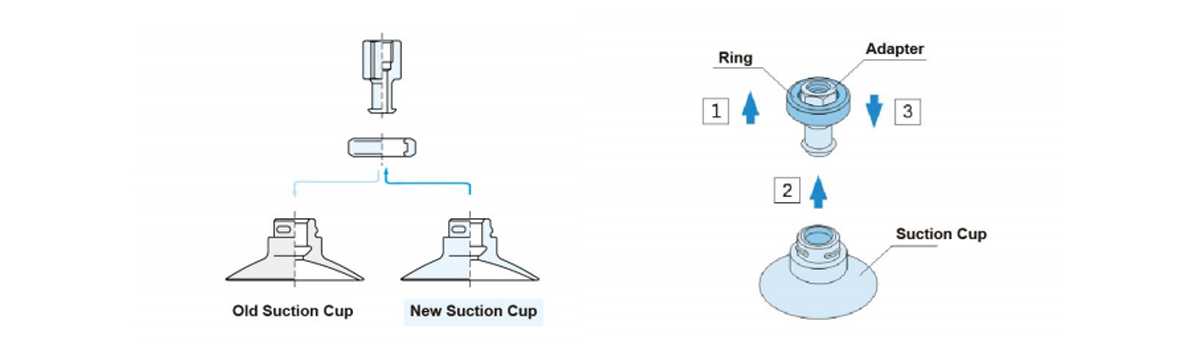

    STEG:

    1. Ta av ringen.
    2. Ta bort adaptern.
    3. Fixera den nya sugkoppens utbuktning och sätt sedan in adaptern med den nya sugkoppen.

    ④Material□ ②Diameter(mm)○/③Sugtyp☆ E* F* G*
    N NBR 09 10 13 14 16 20 25 30 32 40 50
    S Silikon Ø9 Ø10 Ø13 Ø14 Ø16 Ø20 Ø25 Ø30 Ø32 Ø40 Ø50
    U Platt - ● ● - ● ● ● - ● ● ●
    ⑤ Buffert     typ● C Med revben - ● ● - ● ● ● - ● ● ●
    J Roterande D Djupt ● - - ● - ● - - ● -
    K Det går inte att rotera B 2 bälgar ● ● - ● ● ● - ● ● ●
    J 3/4 bälg ● - - ● ● - · ● - - -
    ⑥Buffertslag■ 10 10   mm ● ● ●
    20 20   mm ● ● ●
    30 30   mm ● ● ●
    ①Anslutning av vakuumport 40 40   mm ● ● -
    50 50   mm ● ● ●
    T Vertikal ⑦Anslutning  av  vakuumport◇ Invändig gänga B5 M5×0,8 ● ● ●
    B01 Rc1/8 - - ●
    Hullingsfäste U4 中4 PU slang ● - -
    N4 φ4 nylonslang ● - -
    U6 φ6 PU slang ● ● ●
    N6 中6 nylonslang ● ● ●
    Yttre sexkantssnabbkoppling 03 Ø3 ● - -
    23 Ø3,2 ● - -
    04 Ø4 ● ● -
    06 Ø6 ● ● ●





    R     		Inre sexkantssnabbkoppling 03S Ø3 ● - -
    23S Ø3,2 ● - -
    04S Ø4 ● ● -
    06S Ø6 ● ● ●
    Lateral Snabbkoppling 04 Ø4 ● ● -
    06 Ø6 ● ● ●
    08 Ø8 - ● ●
    Y Inre B5 M5×0,8 ● ● ●
    Hullingsfäste U4 φ4 PU slang ● ● -
    N4 φ4 nylonslang ● ● 一
    U6 φ6 PU slang ● ● ●
    N6 φ6 nylonslang ● ● ●
    Yttre sexkantssnabbkoppling 03 Ø3 ● - -
    23 Ø3,2 ● - -
    04 Ø4 ● ● -
    06 Ø6 ● ● ●
    Inre hexagon quick conector 03S Ø3 ● - -
    23S Ø3,2 ● - -
    04S Ø4 ● ● -
    06S Ø6 ● ● ●
    ⑧ Monteringsgänga Externt thread A10 M10×1,0 ● ● -
    A14 M14×1,0 - ● ●

    Montering
    Tråd     		Montering Nut
    Åtdragningsmoment (N.m)     		Spring Buffer Force(N)
    0 Stroke Fullt slag
    M10×1,0 2,5-3,5 1.0 3.0
    M14×1,0 6,5-7,5 2.0 5.0

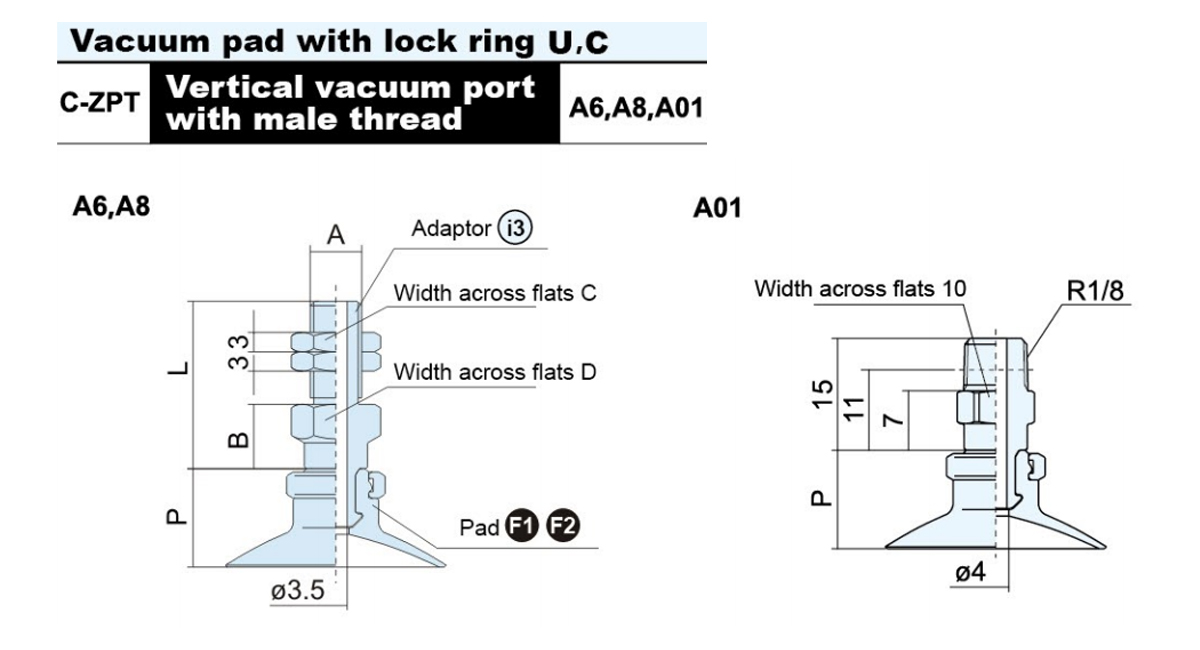

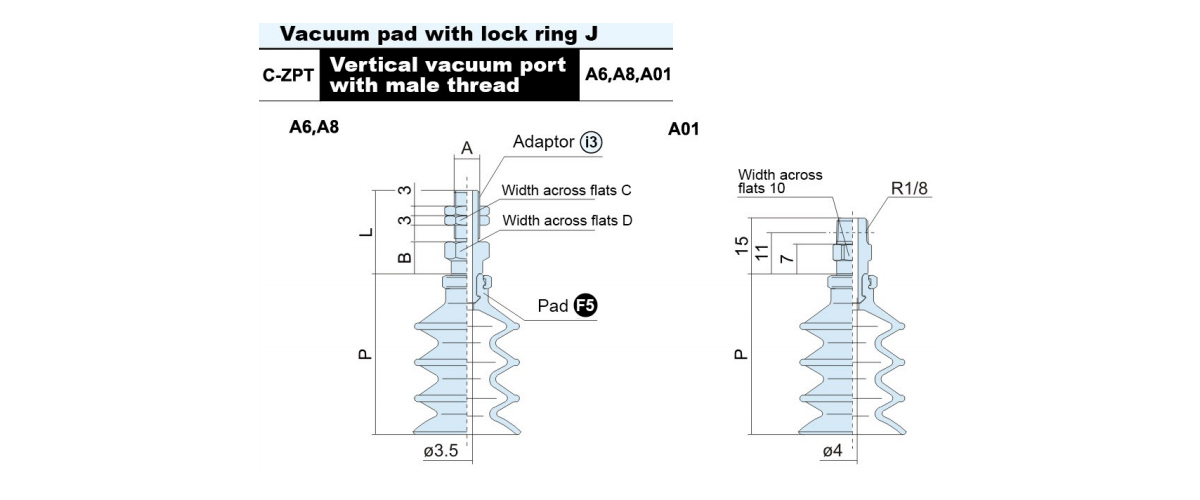

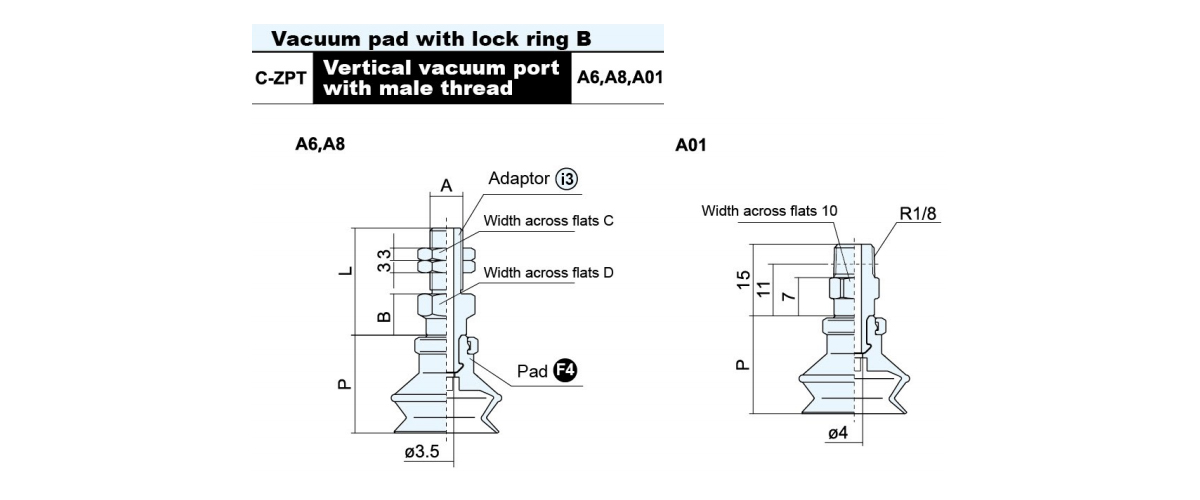

  • Model A B C L ○Pad diameter P Adaptor Model
    10 13 16

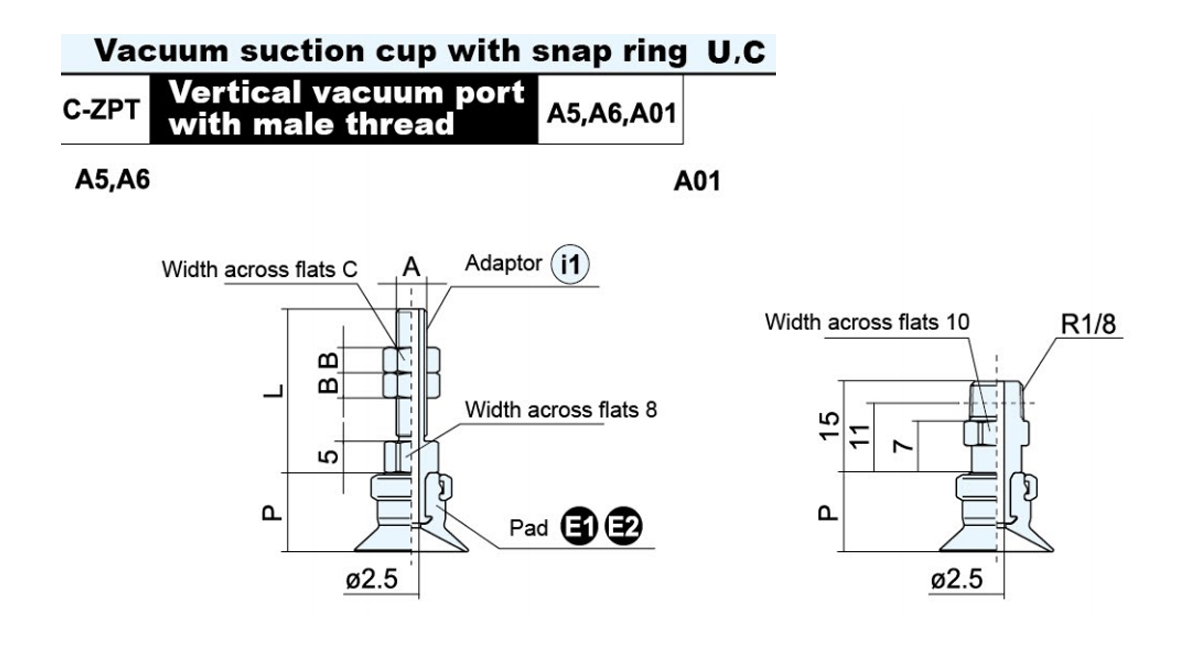

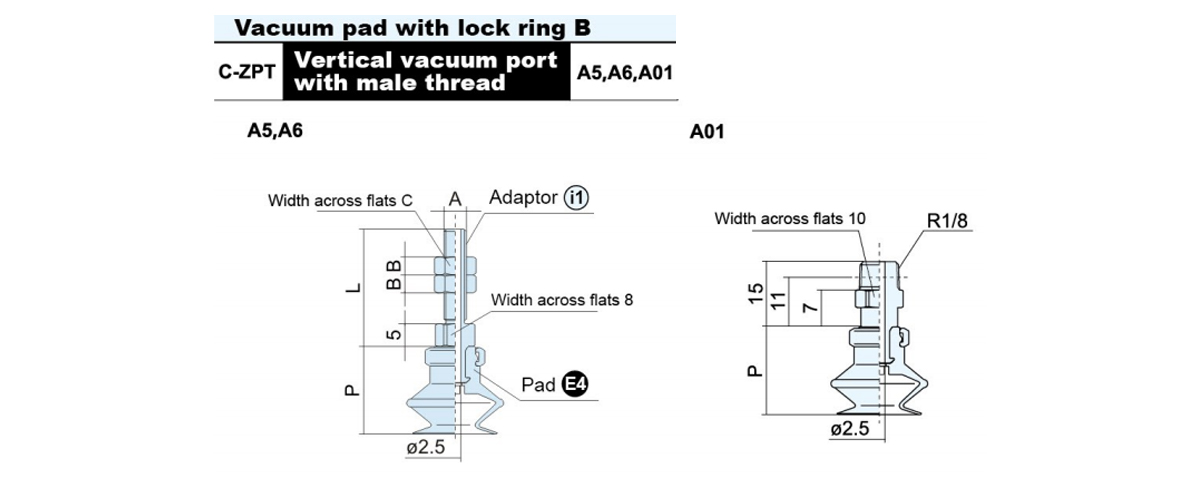

    C-ZPT○☆□-A5 M5×0.8 7 4 26 12 12 12.5 ZPT2-A5
    C-ZPT○☆□-A6 M6×1.0 8 3 31 ZPT2-A6
    C-ZPT○☆□-A01 - - ZPT2-A01
    ○ Symbol of pad diameter:10,13,16       ☆ Pad type:Flat(U),with  ribs(C)
    □Material:NBR(N),Silicone(S)

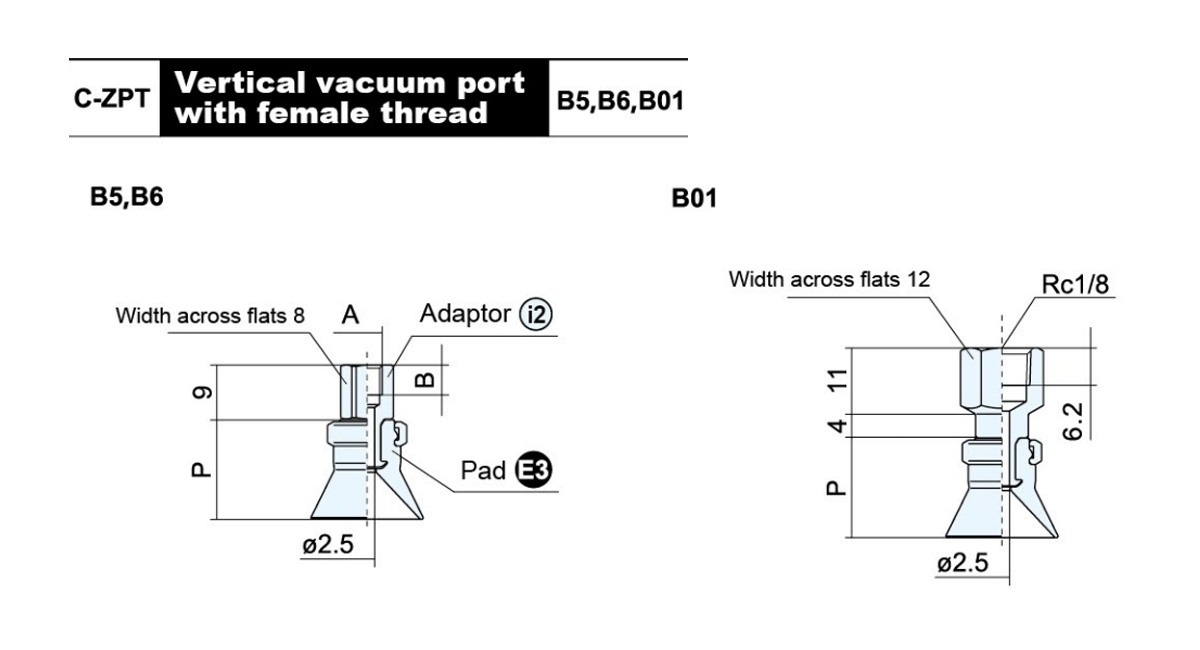

    Model A B ○Pad diameter P Adaptor Model
    10 13 16

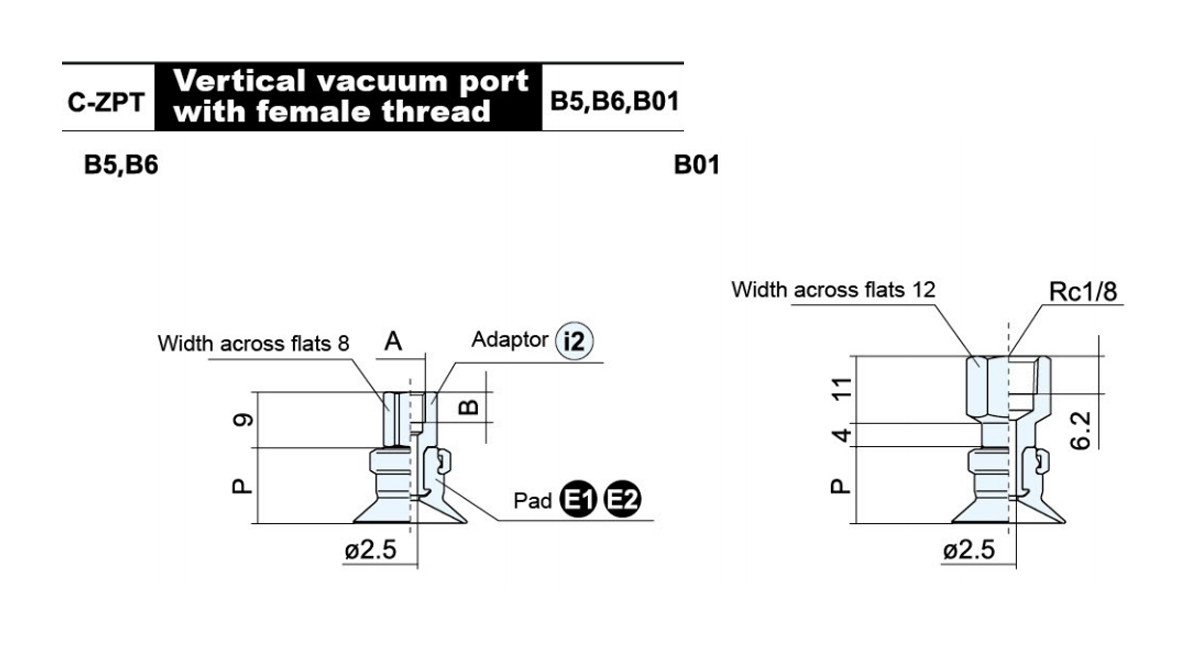

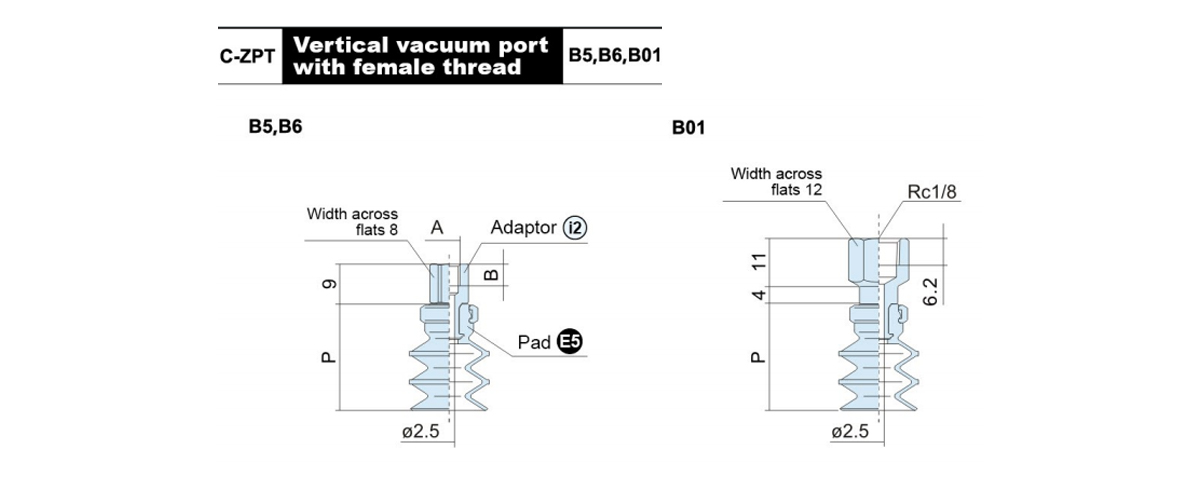

    C-ZPT○☆□-B5 M5×0.8 5 12 12 12.5 ZPT2-B5
    C-ZPT○☆□-B6 M6×1.0 6 ZPT2-B6
    C-ZPT○☆□-B01 - ZPT2-B01
    ○Symbol of pad diameter:10,13,16
    ☆Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)

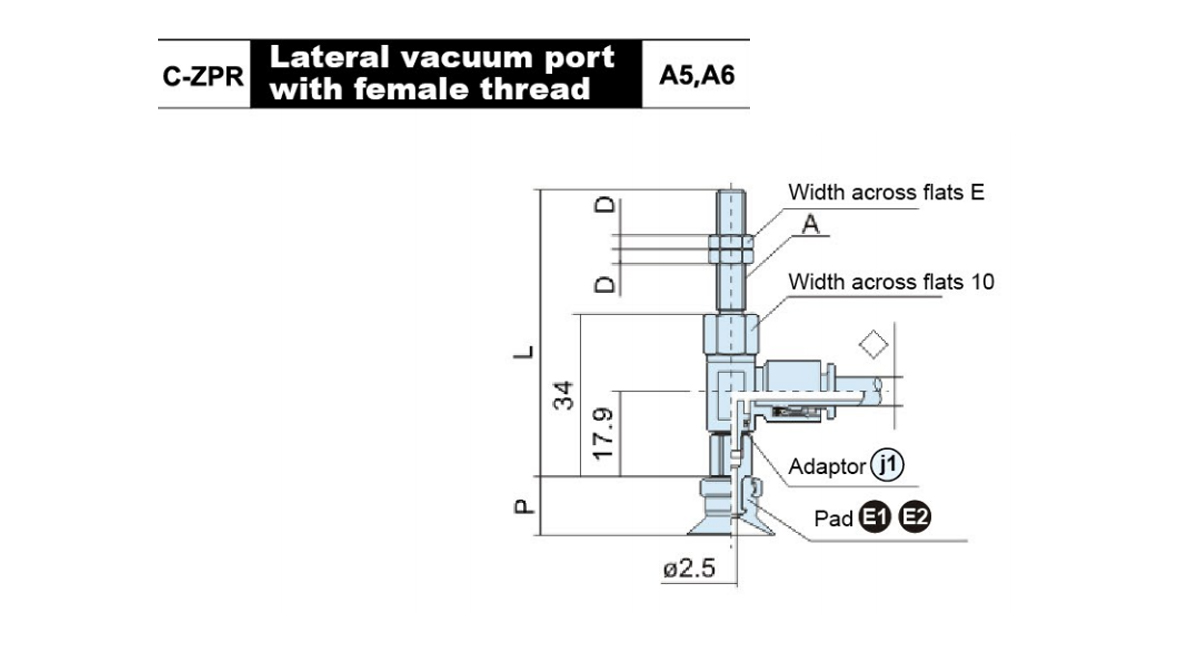

    Model A D E L ○Pad diameter P Adaptor Model
    10 13 16

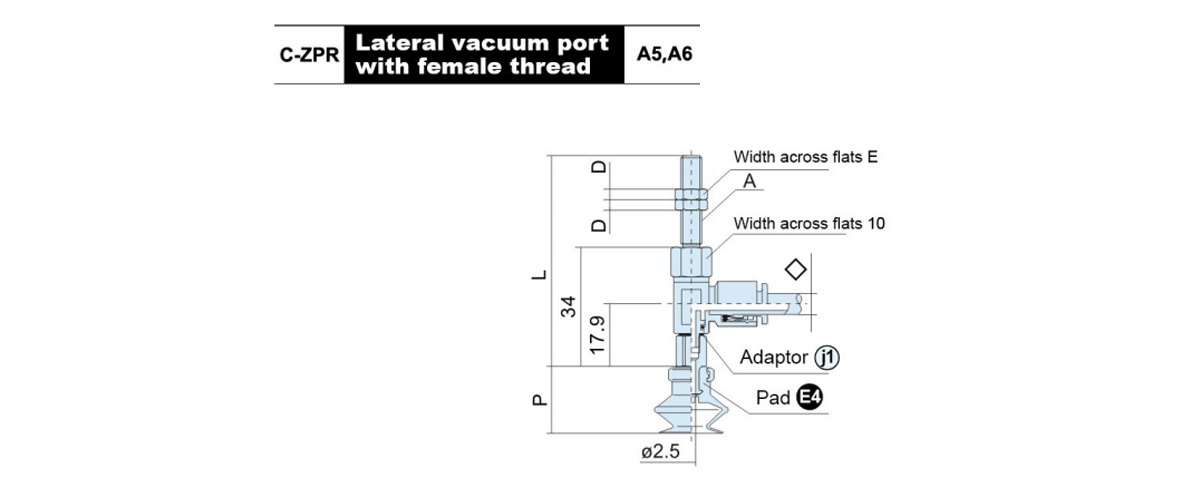

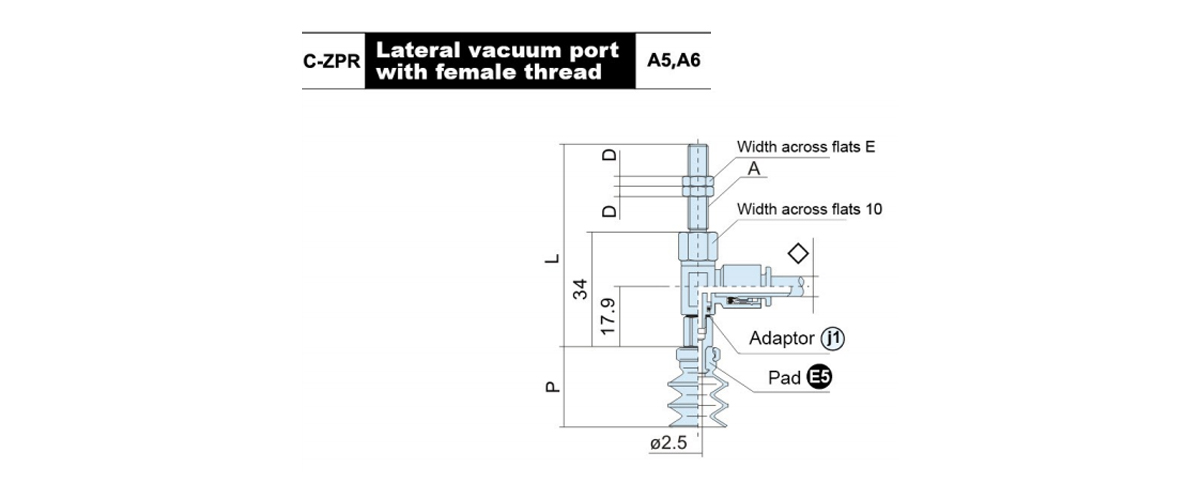

    C-ZPR○☆口 - ◇ -A5 M5×0.8 4 7 55 12 12 12.5 ZPR2-◇-A5
    C-ZPR○☆□-◇-A6 M6×1.0 3 8 60 ZPR2-◇-A6
    ○Symbol of pad diameter:10,13,16 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)     ◇Vacuum port connection:04,06

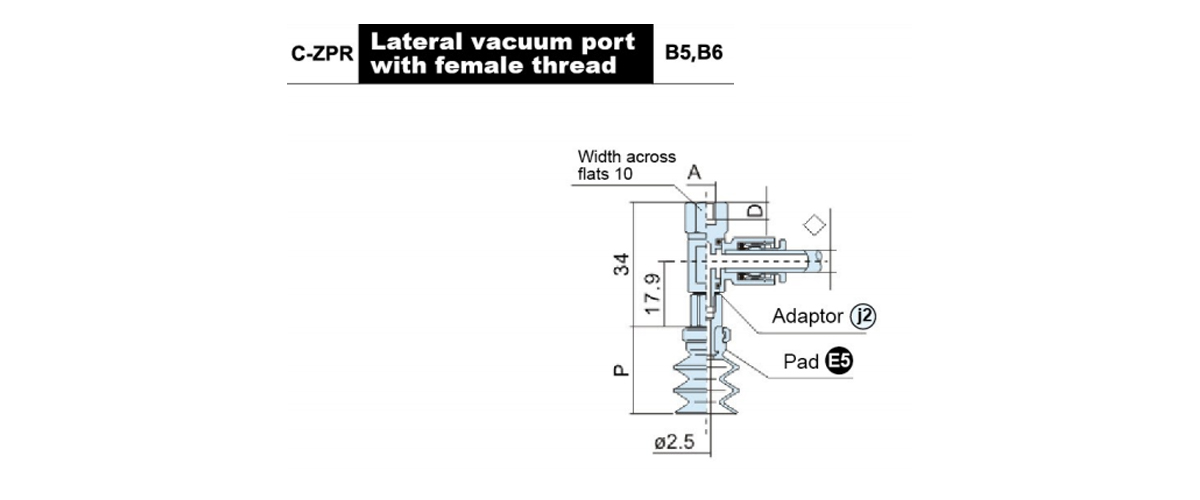

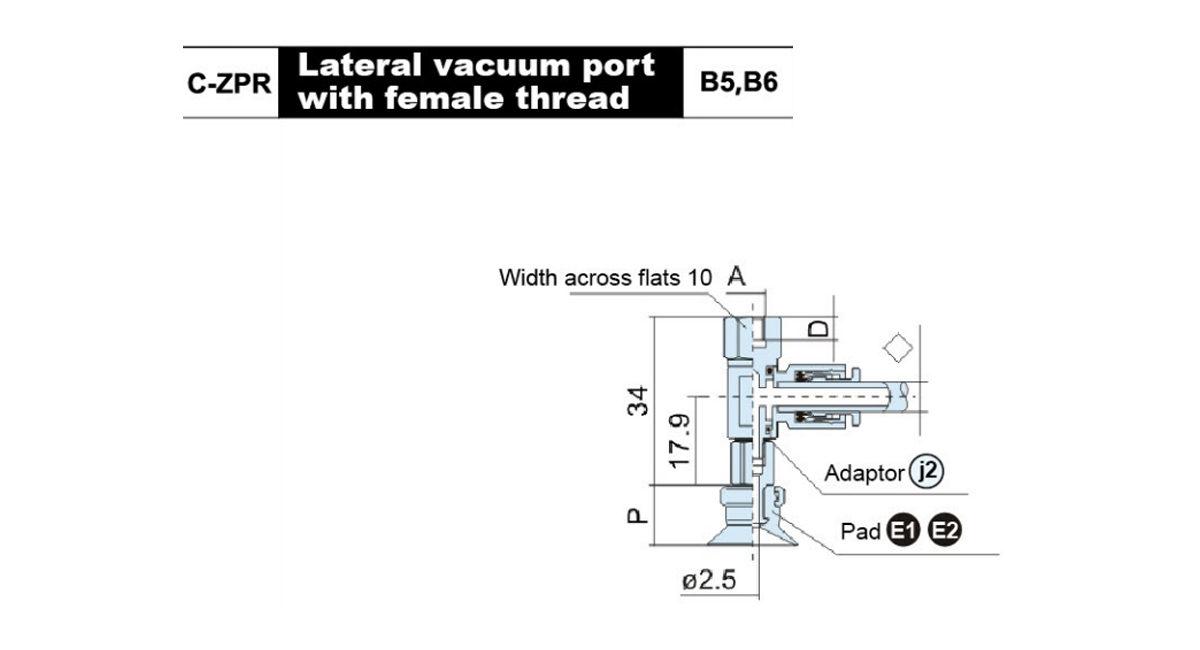

    Model A D ○Pad diameter P Adaptor Model
    10 13 16

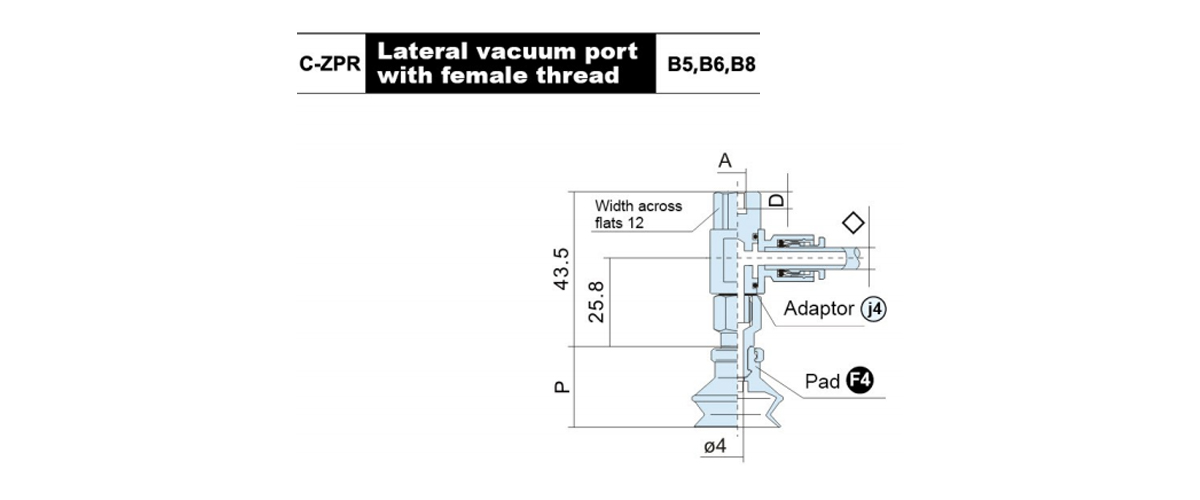

    C-ZPR○☆□-◇-B5 M5×0.8 5 12 12 12.5 ZPR2-◇-B5
    C-ZPR○☆□-◇-B6 M6×1.0 6 ZPR2-◇-B6
    ○Symbol of pad diameter:10,13,16
    □Material:NBR(N),Silicone(S)
    ☆ Pad type:Flat(U),with ribs(C)
    ◇Vacuum port connection:04,06

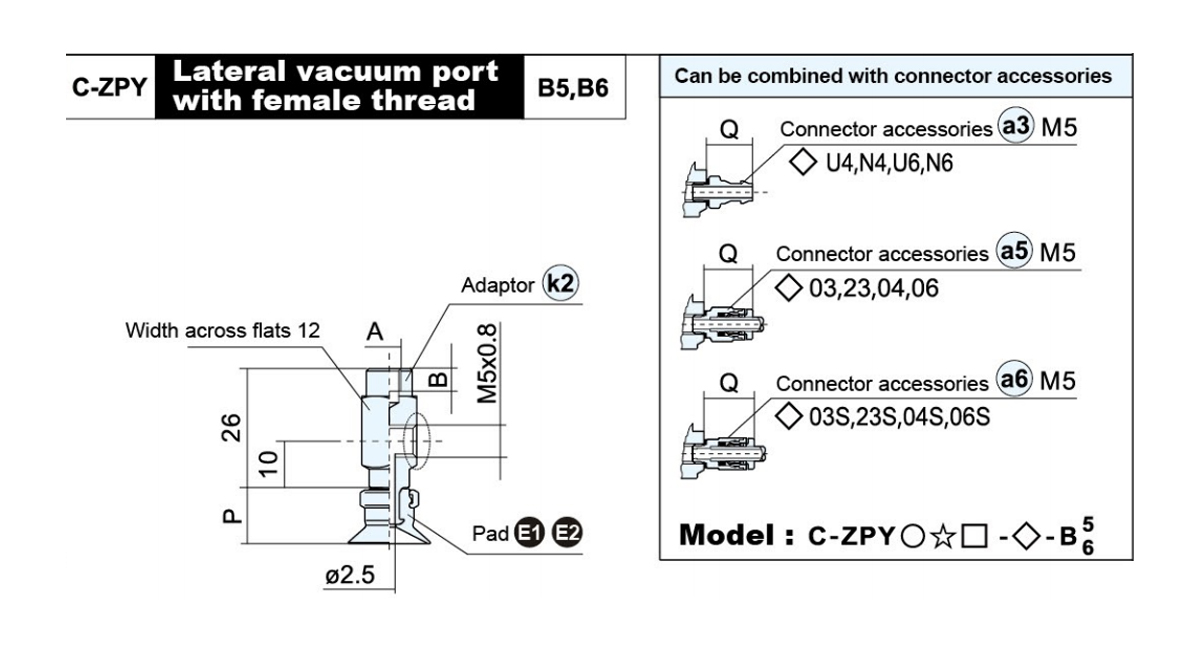

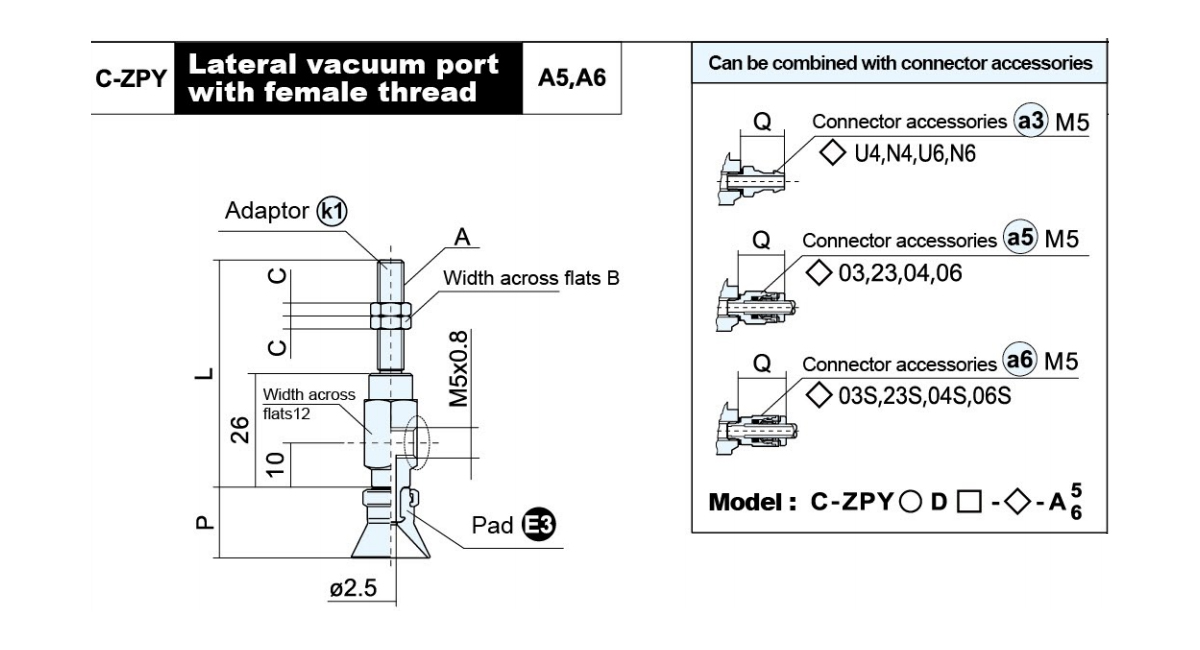

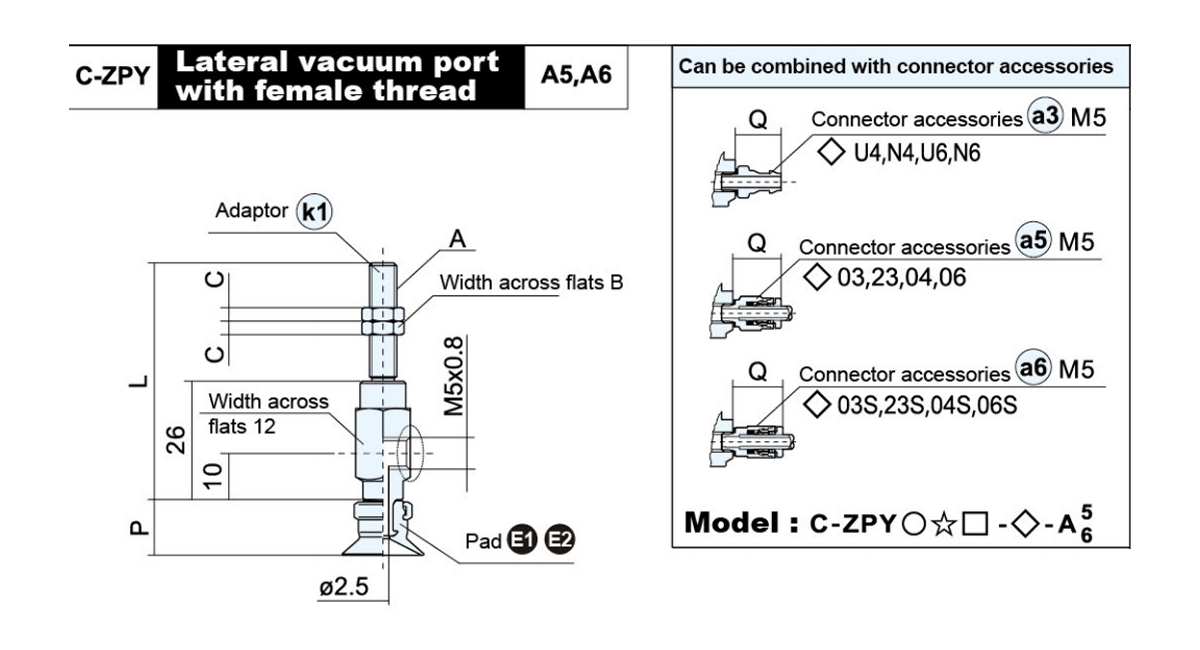

    Model A B C L ○Pad diameter P Adaptor Model
    10 13 16

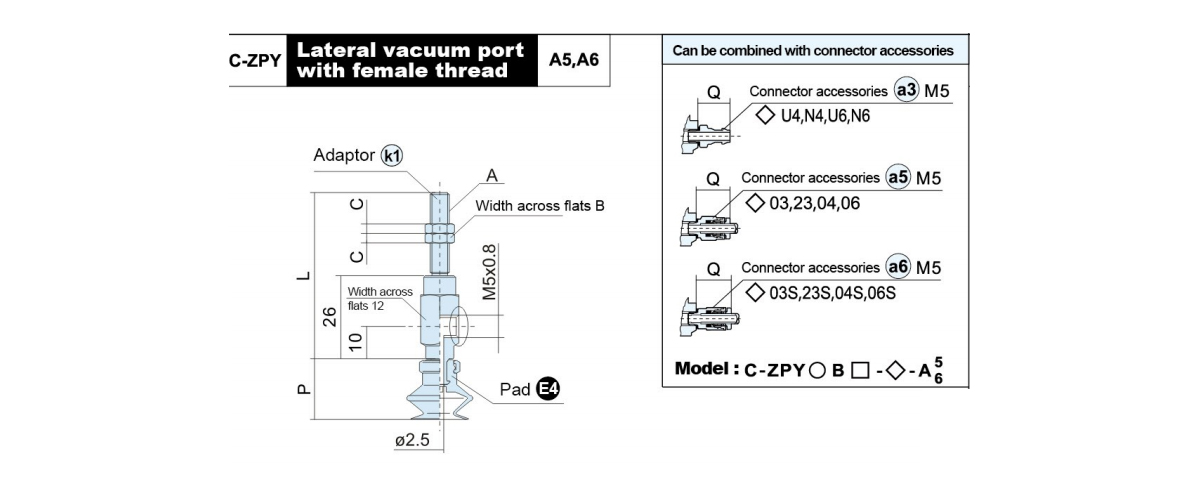

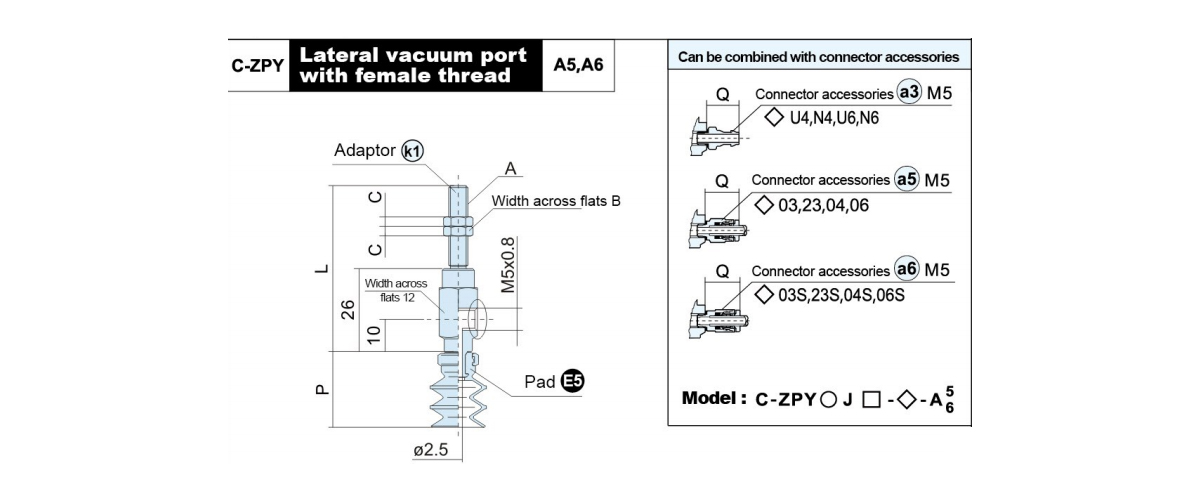

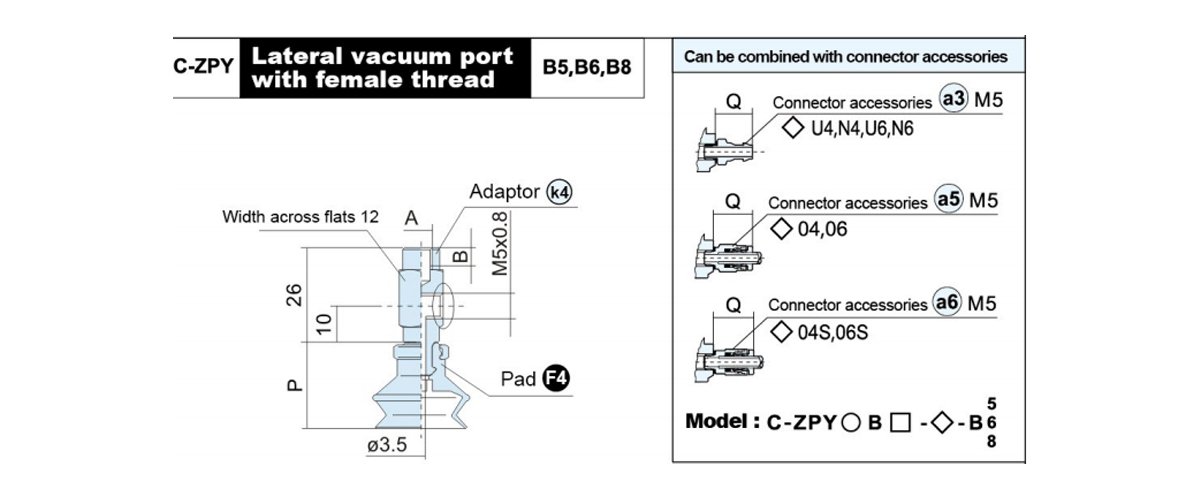

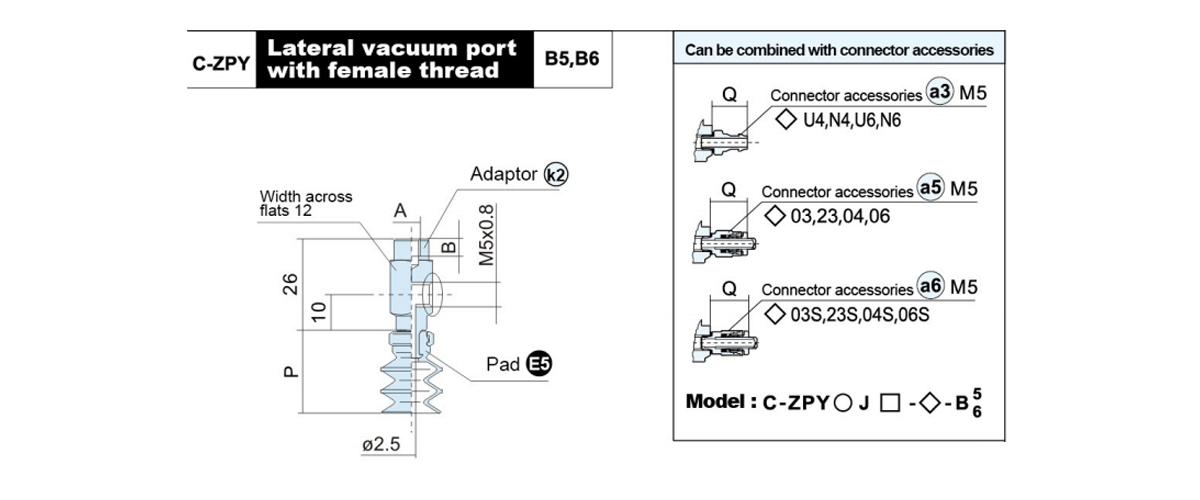

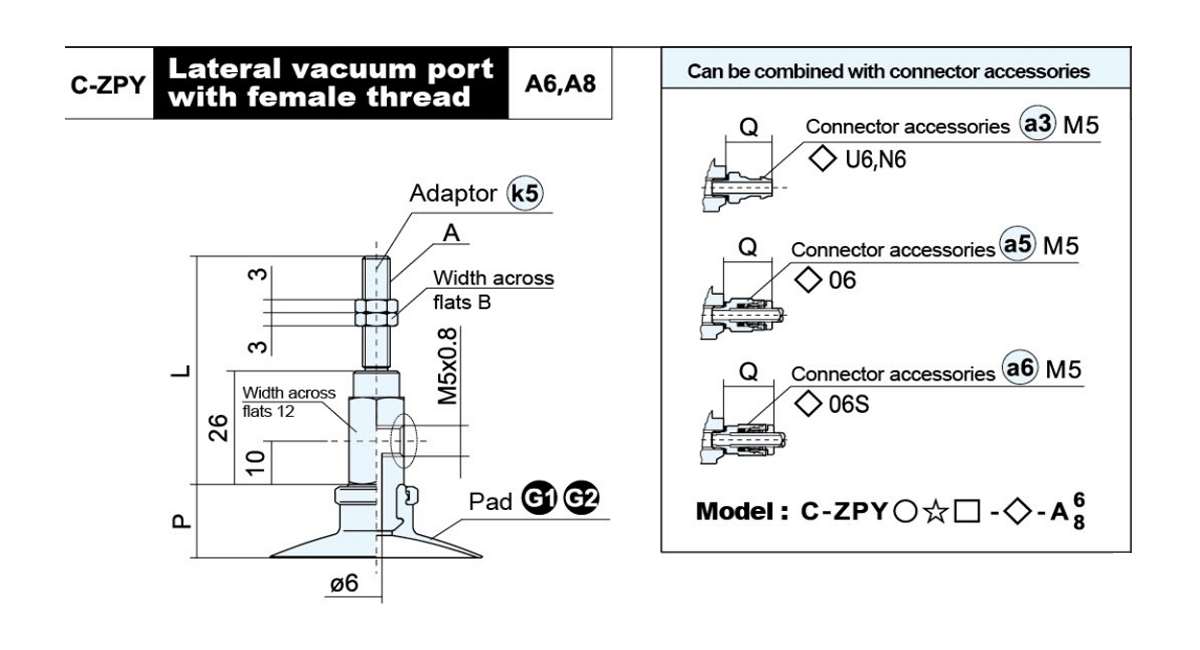

    C-ZPY○☆□-B5-A5 M5×0.8 7 4 47 12 12 12.5 ZPY2-B5-A5
    C-ZPY○☆□-B5-A6 M6×1.0 8 3 52 ZPY2-B5-A6
    ○Symbol of pad diameter:10,13,16 ☆ Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

    Model A B ○Pad diameter P Adaptor Model
    10 13 16

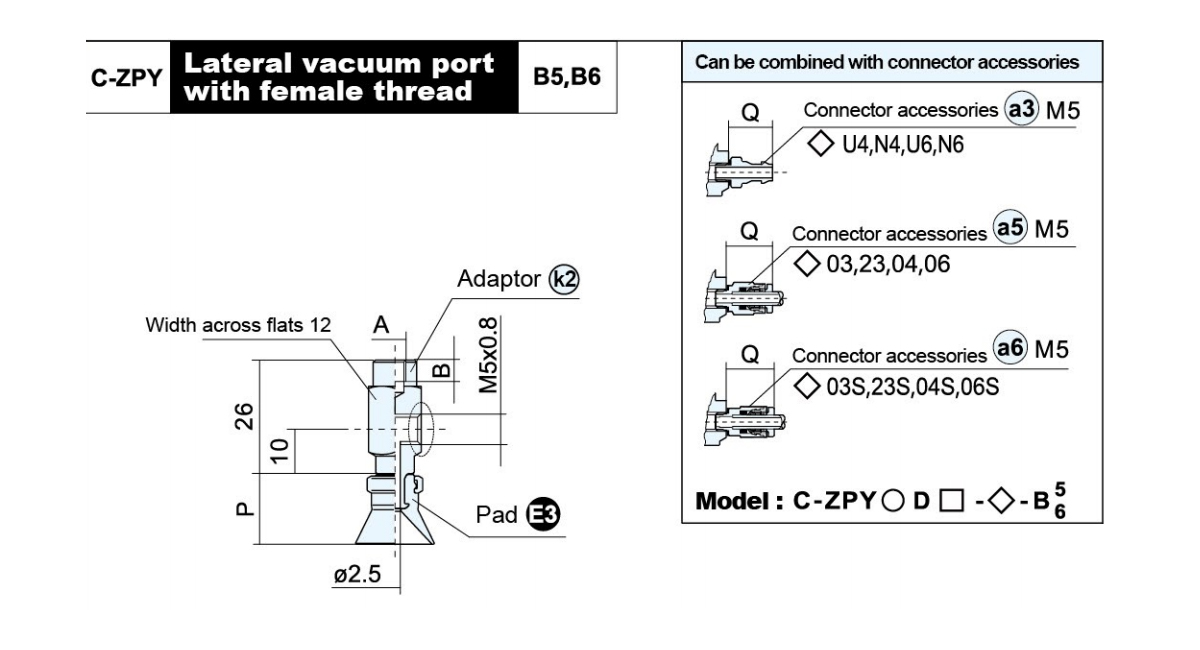

    C-ZPY○☆□-B5-B5 M5×0.8 5 12 12 12.5 ZPY2-B5-B5
    C-ZPY○☆□-B5-B6 M6×1.0 6 ZPY2-B5-B6
    ○Symbol of pad diameter:10,13,16 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

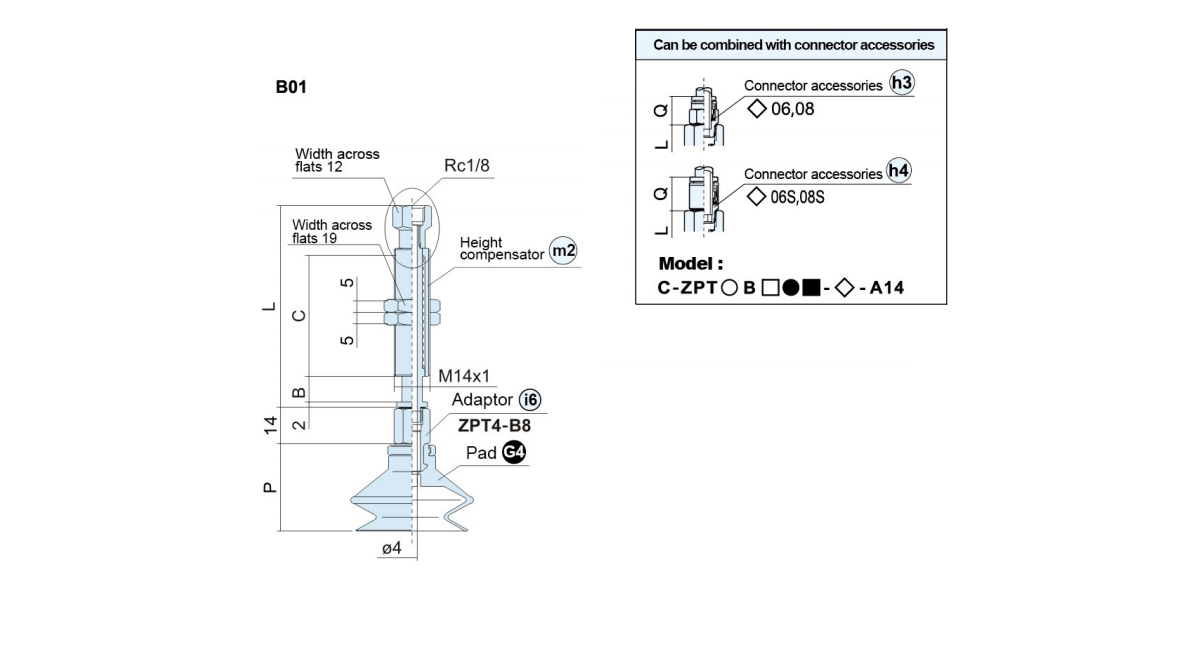

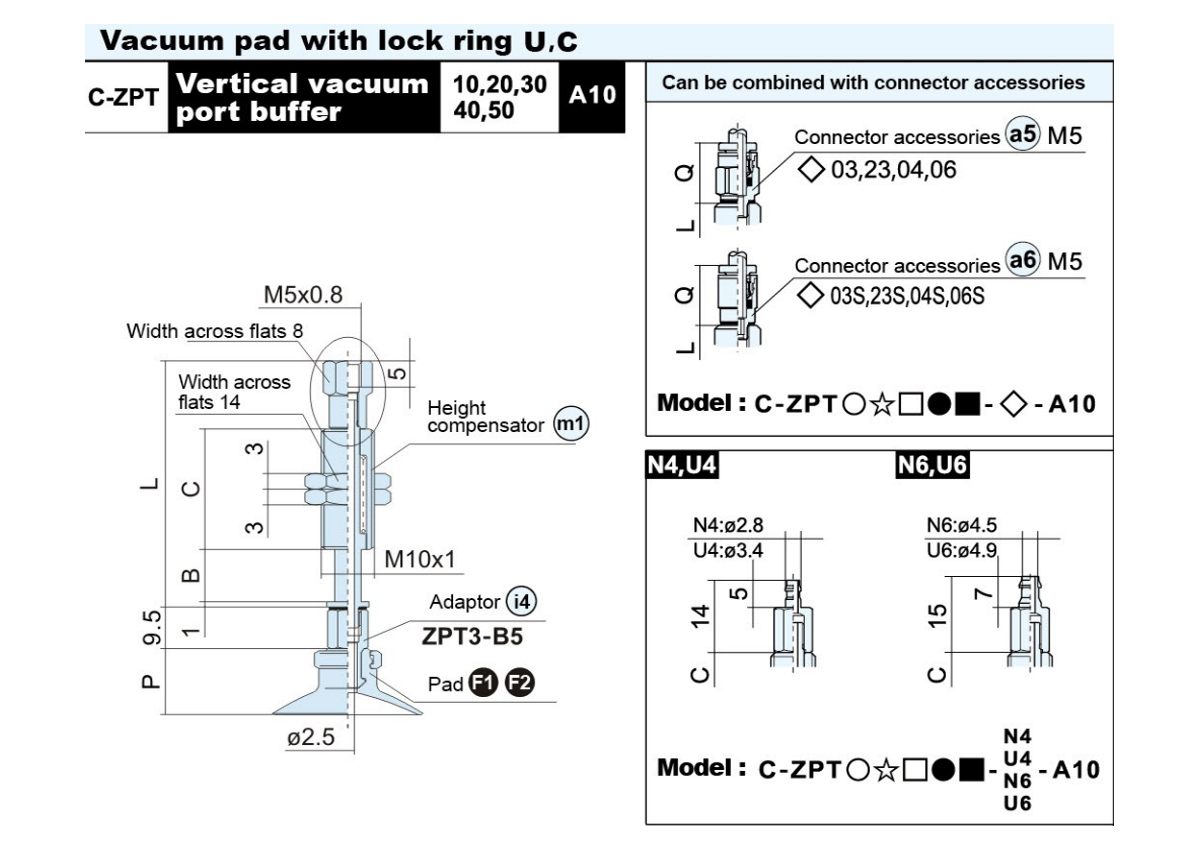

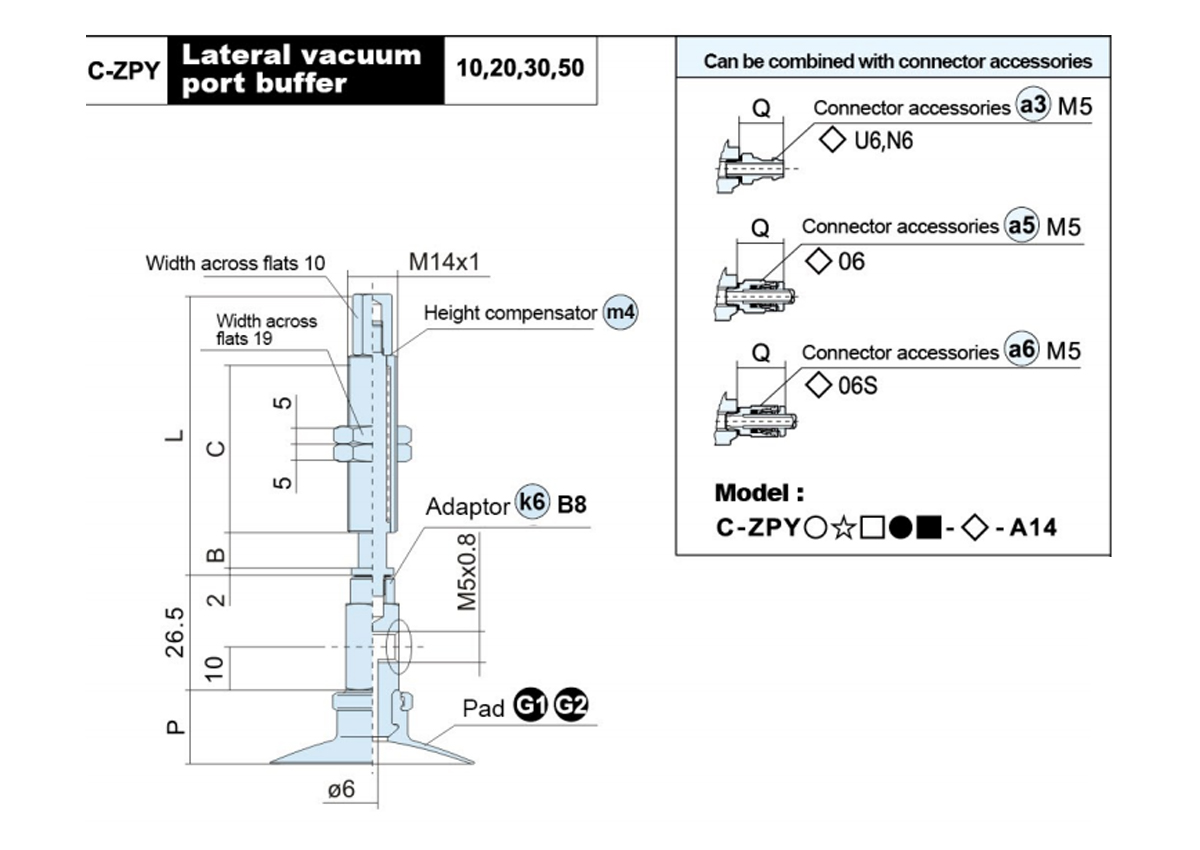

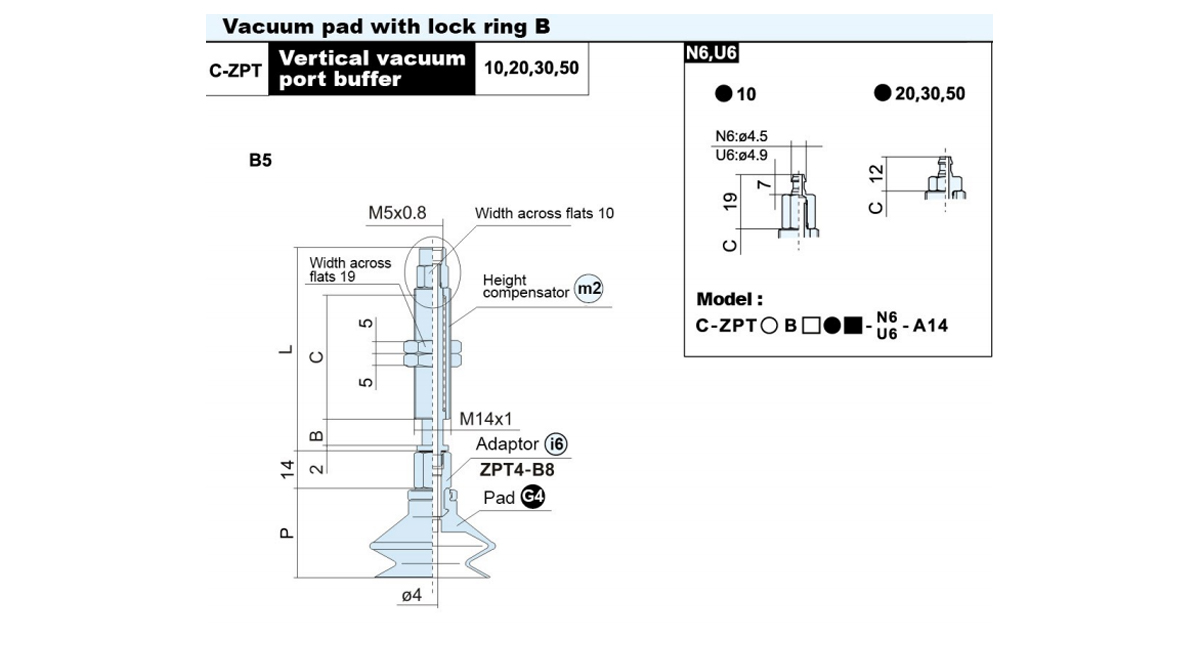

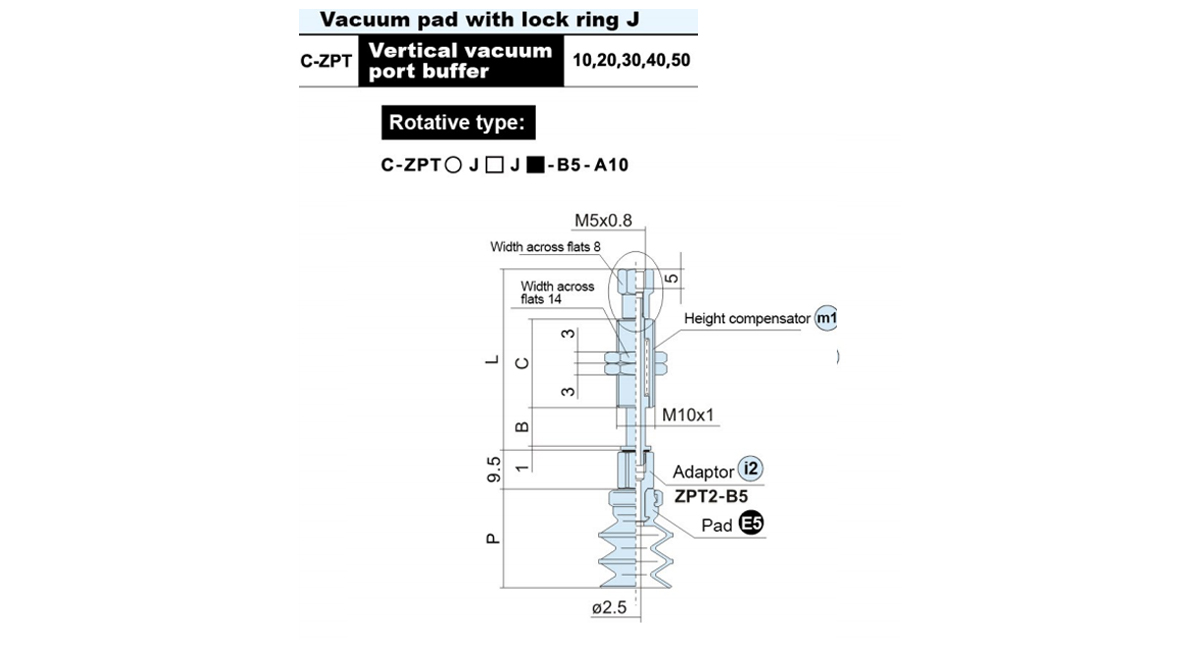

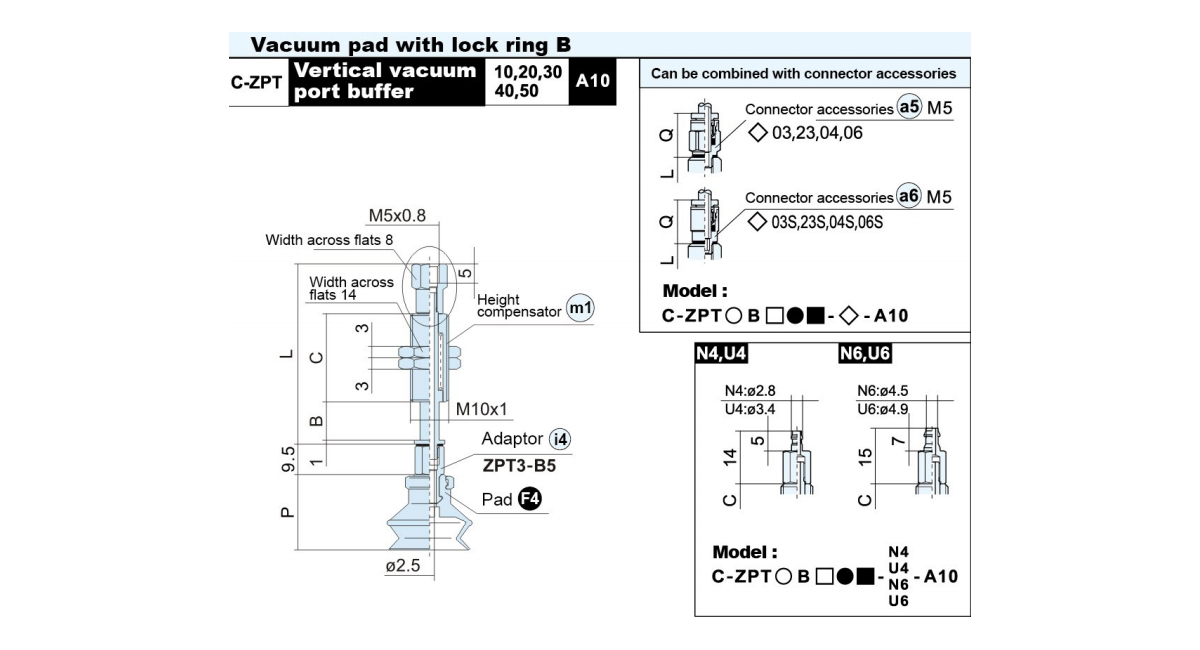

    Model B C L ○Pad Diameter  P m1 i2
    Bumper Support Model
    10 13 16

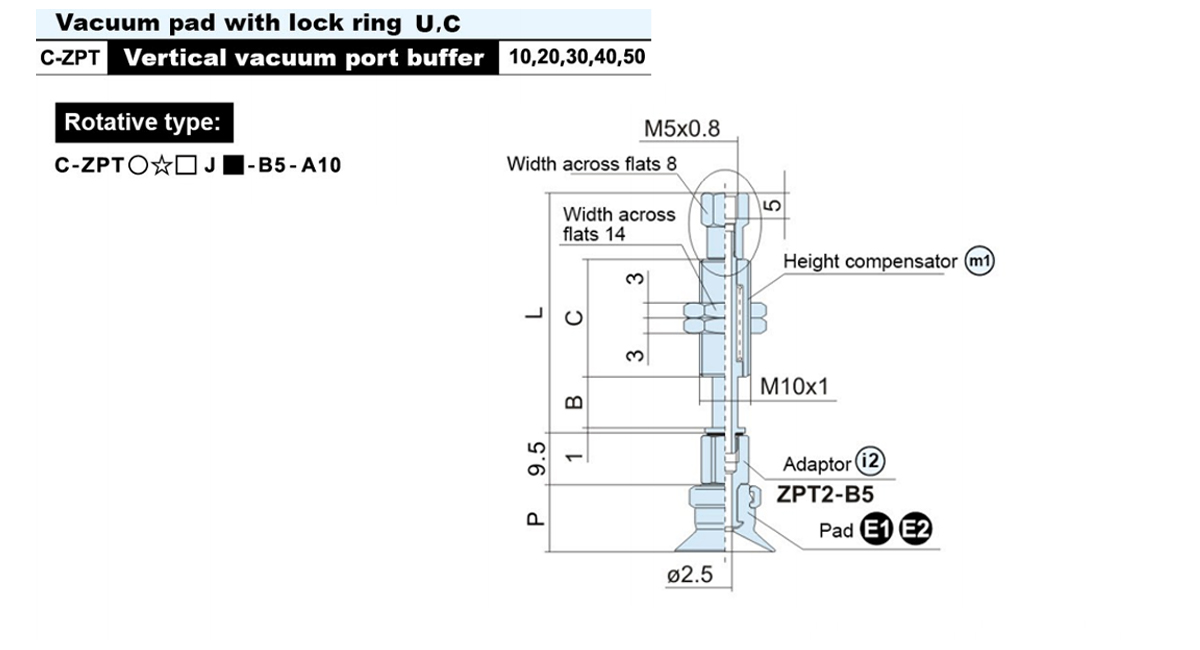

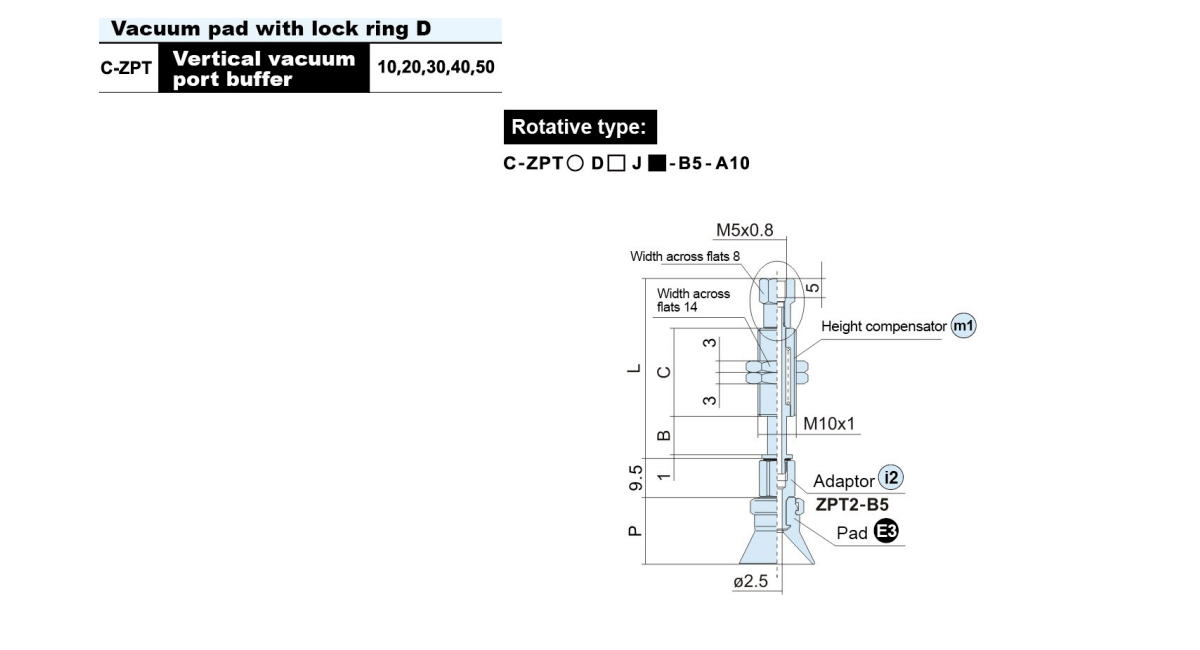

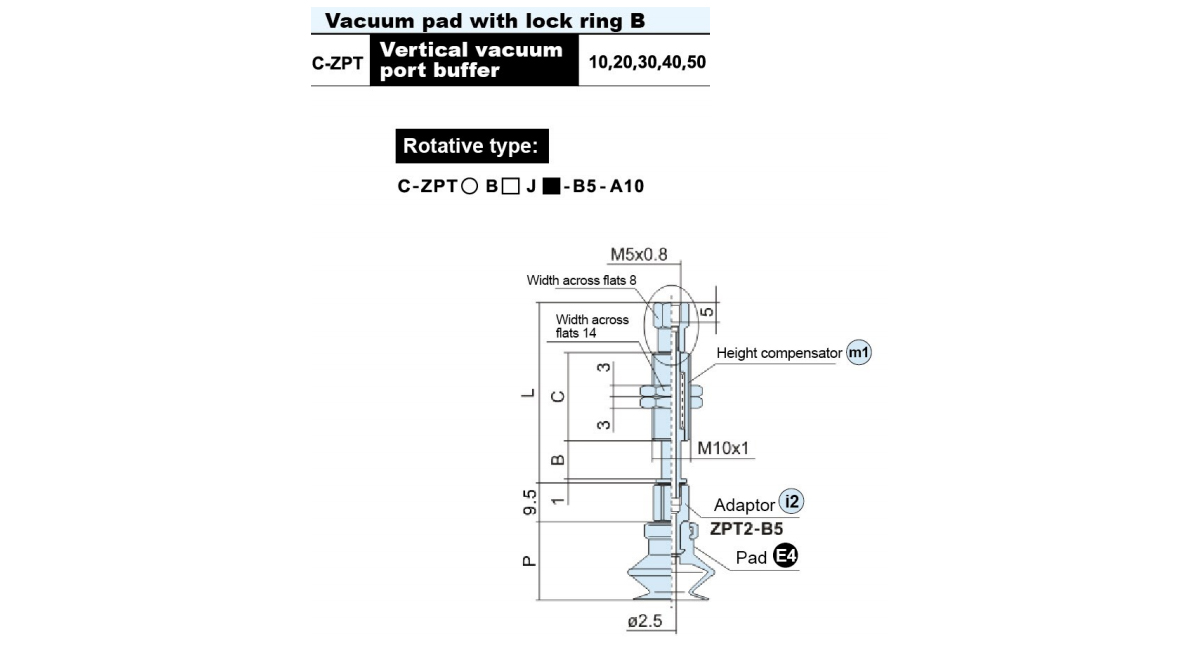

    C-ZPT○☆□J10-B5-A10 10 23 47 12 12 12.5 ZPT2-J10-B5-A10
    C-ZPT○☆□J20-B5-A10 20 51 85 ZPT2-J20-B5-A10
    C-ZPT○☆□J30-B5-A10 30 95 ZPT2-J30-B5-A10
    C-ZPT○☆□J40-B5-A10 40 77 131 ZPT2-J40-B5-A10
    C-ZPT○☆□J50-B5-A10 50 141 ZPT3-J50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □ Material:NBR(N),Silicone(S)
    ■ Buffer   stroke(mm):10,20,30,40,50
    ☆ Pad  type:Flat(U),with  ribs(C)

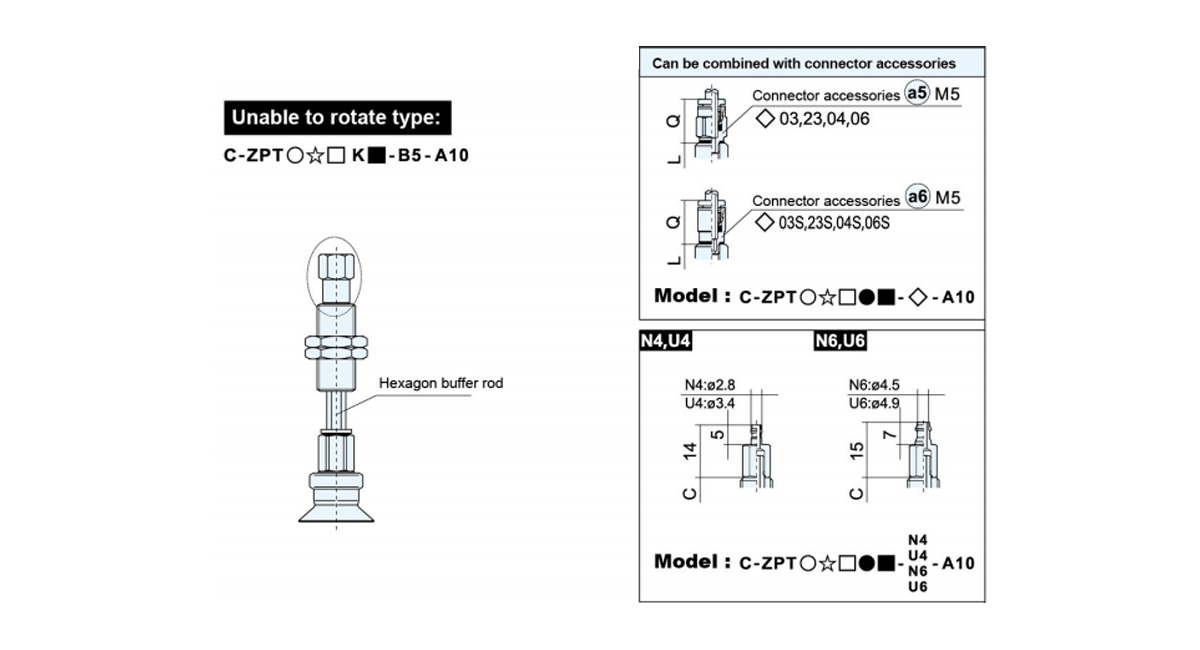

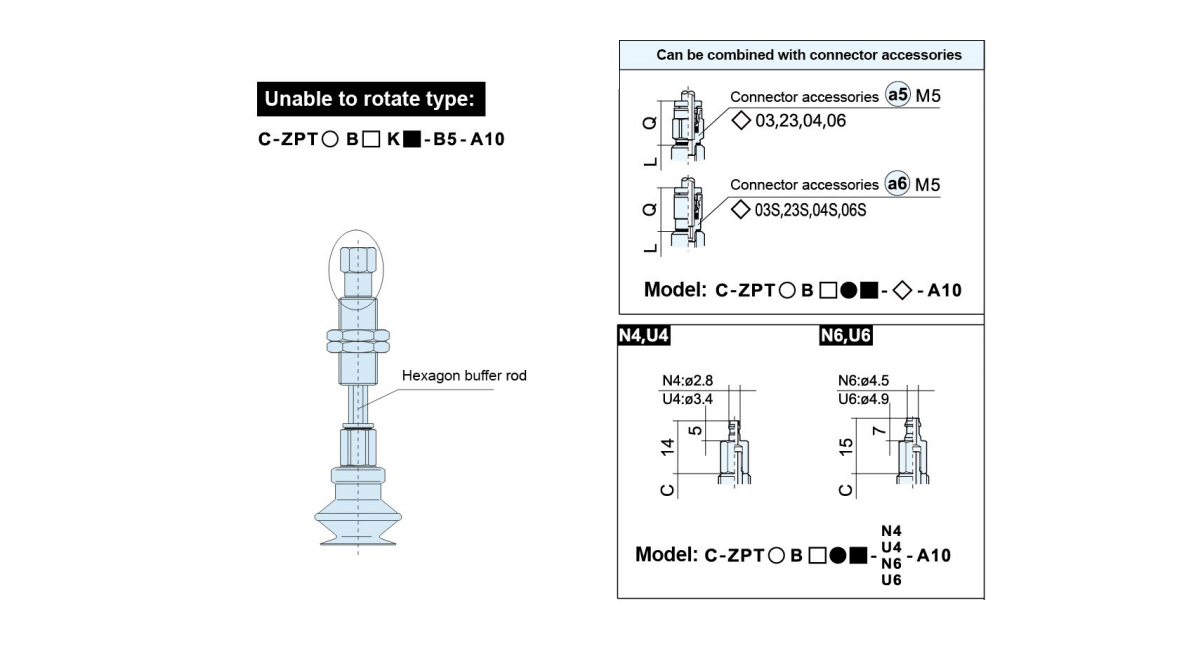

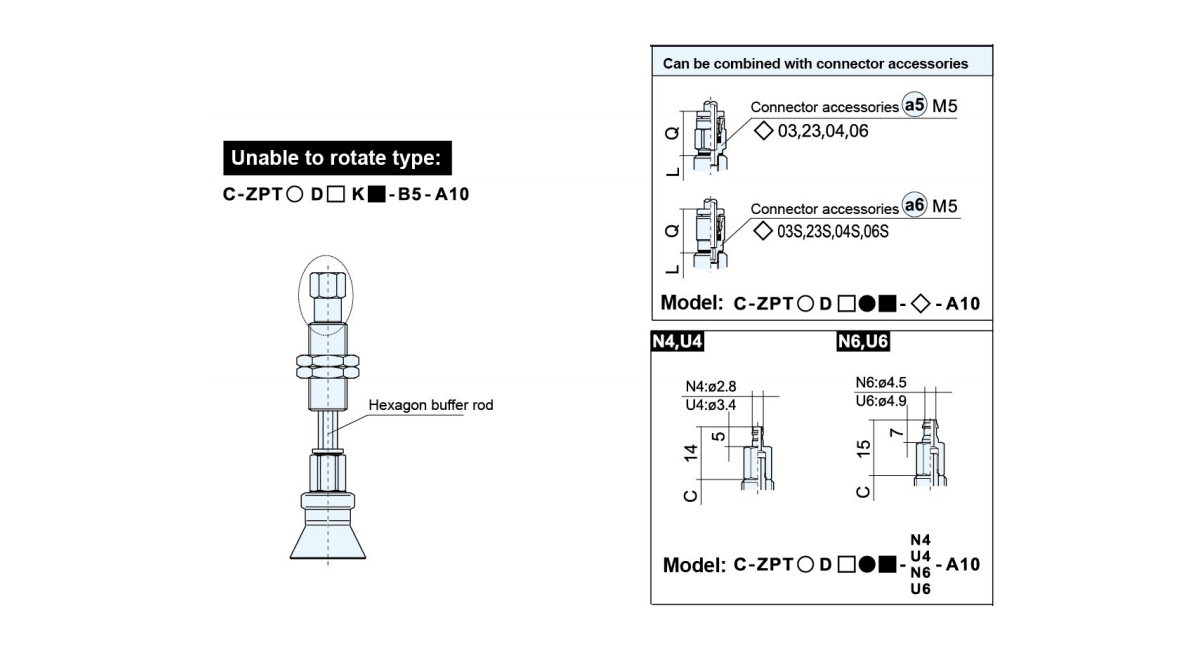

    ●  Height  compensator  type:Rotative(J),Unable  to  rotate(K)

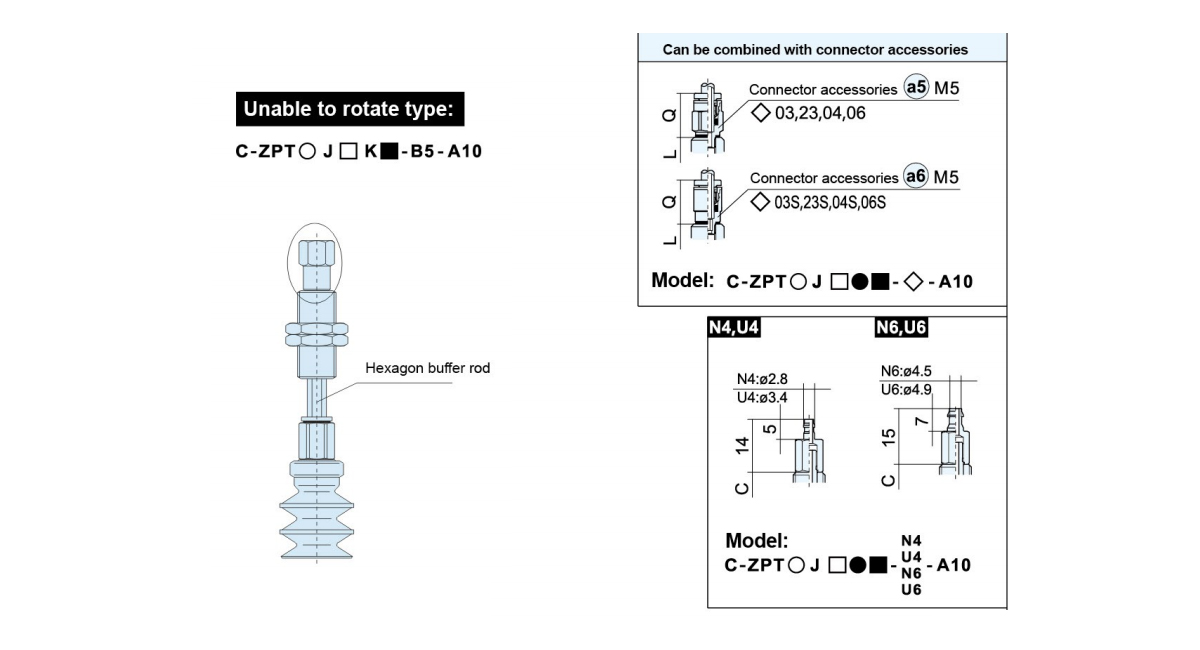

    Model B C L ○Pad Diameter  P m1 i2
    Bumper Support Model
    10 13 16
    C-ZPT○☆□K10-B5-A10 10 23 47 12 12 12.5 ZPT2-K10-B5-A10
    C-ZPT○☆□K20-B5-A10 20 51 85 ZPT2-K20-B5-A10
    C-ZPT○☆□K30-B5-A10 30 95 ZPT2-K30-B5-A10
    C-ZPT○☆□K40-B5-A10 40 77 131 ZPT2-K40-B5-A10
    C-ZPT○☆□K50-B5-A10 50 141 ZPT3-K50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □ Material:NBR(N),Silicone(S)
    ■ Buffer   stroke(mm):10,20,30,40,50
    ☆ Pad  type:Flat(U),with  ribs(C)
    ●  Height  compensator  type:Rotative(J),Unable  to  rotate(K)

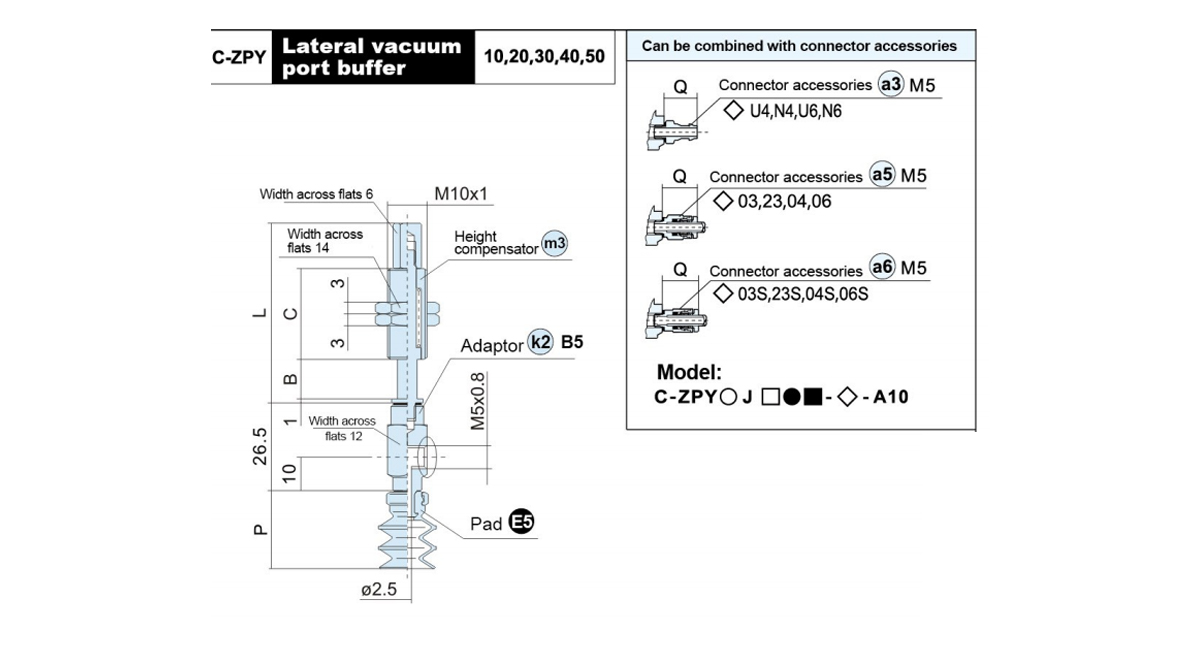

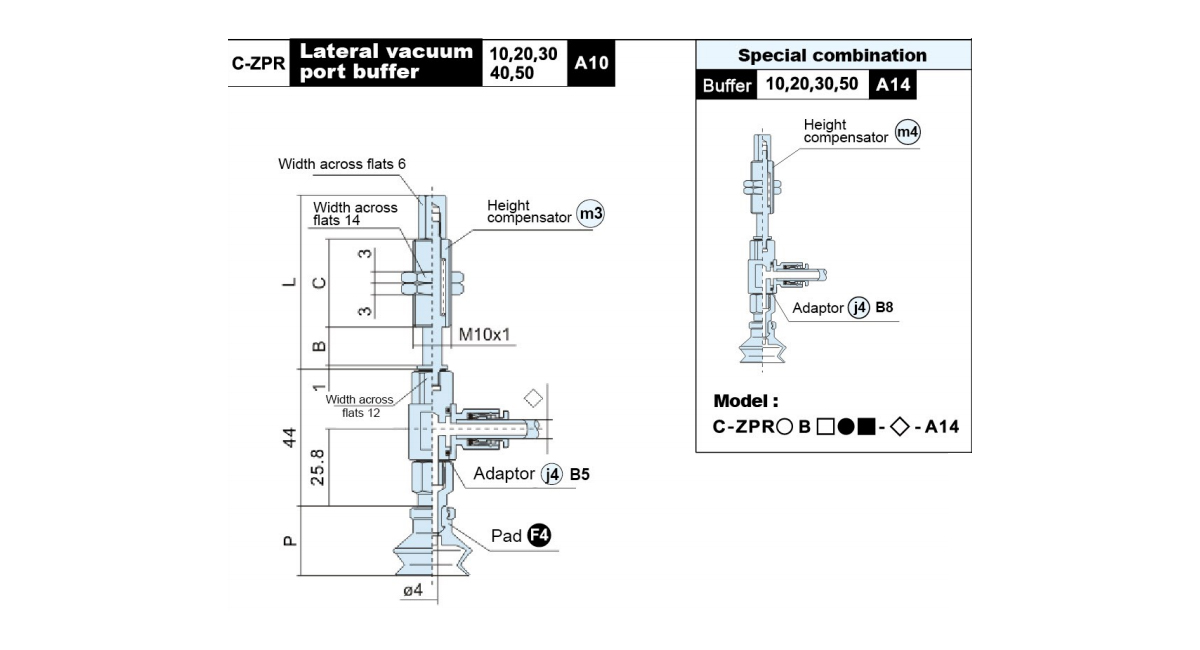

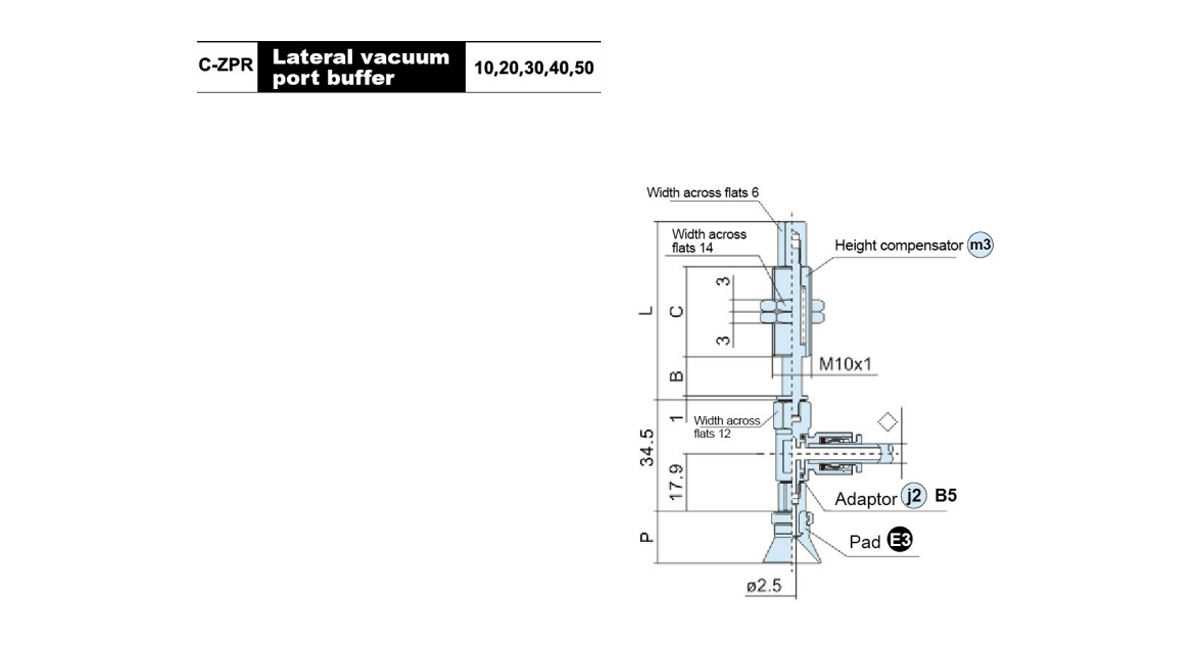

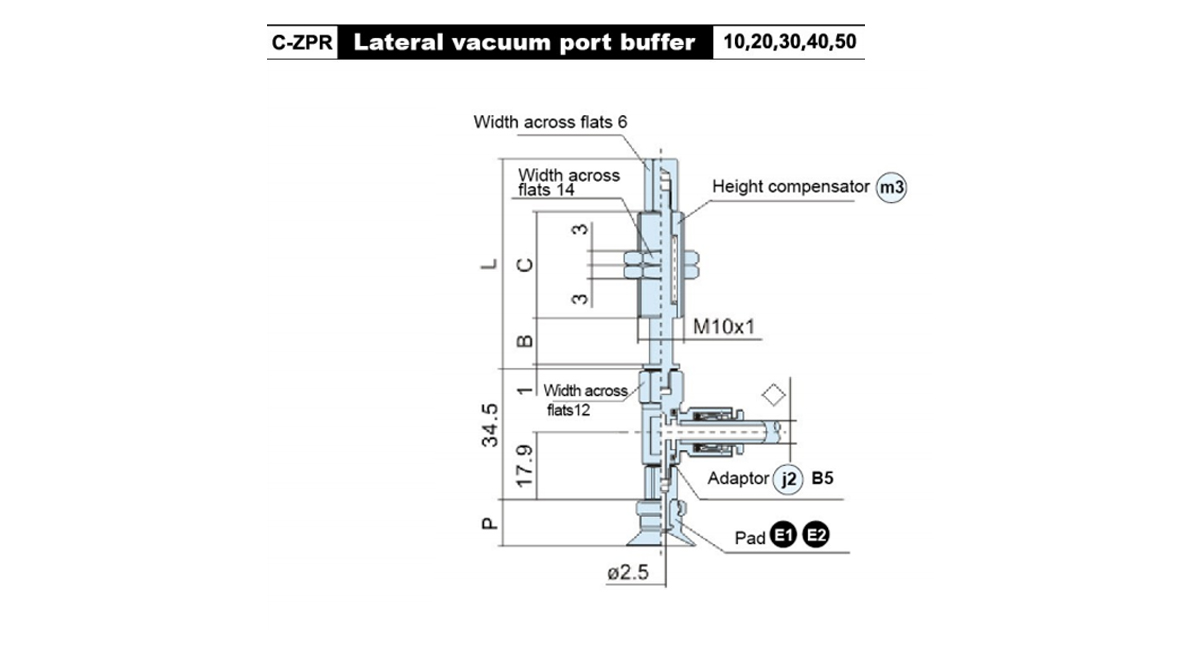

    Model B C L ○Pad Diameter P m3 j2
    Bumper Support Model
    10 13 16

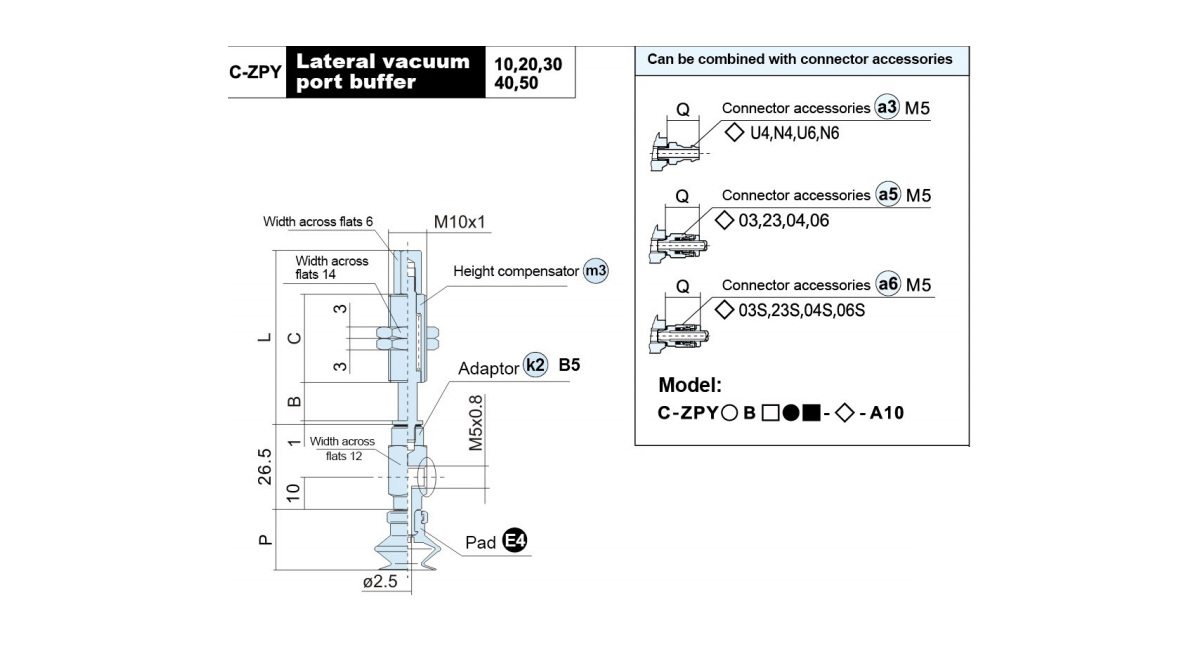

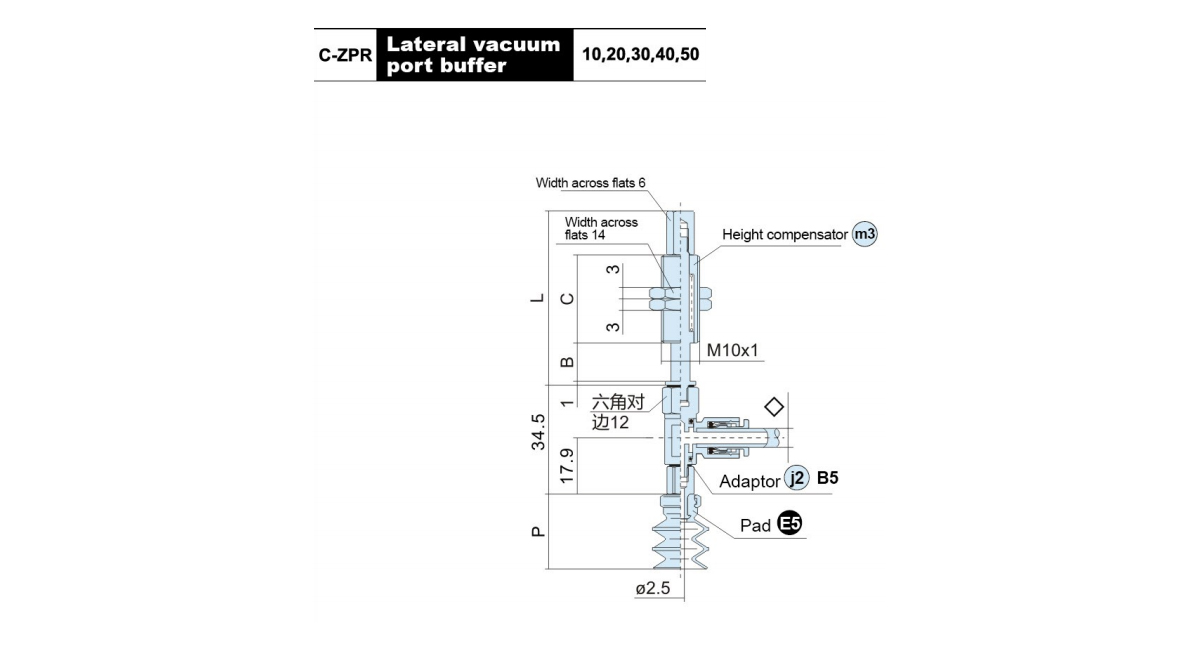

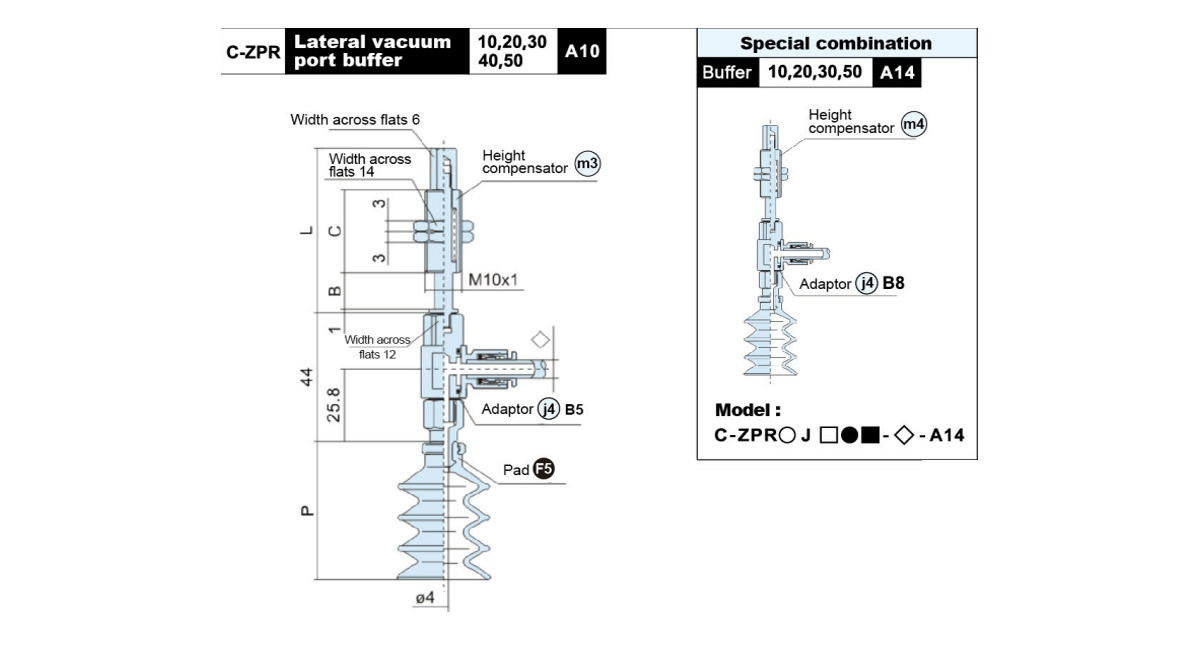

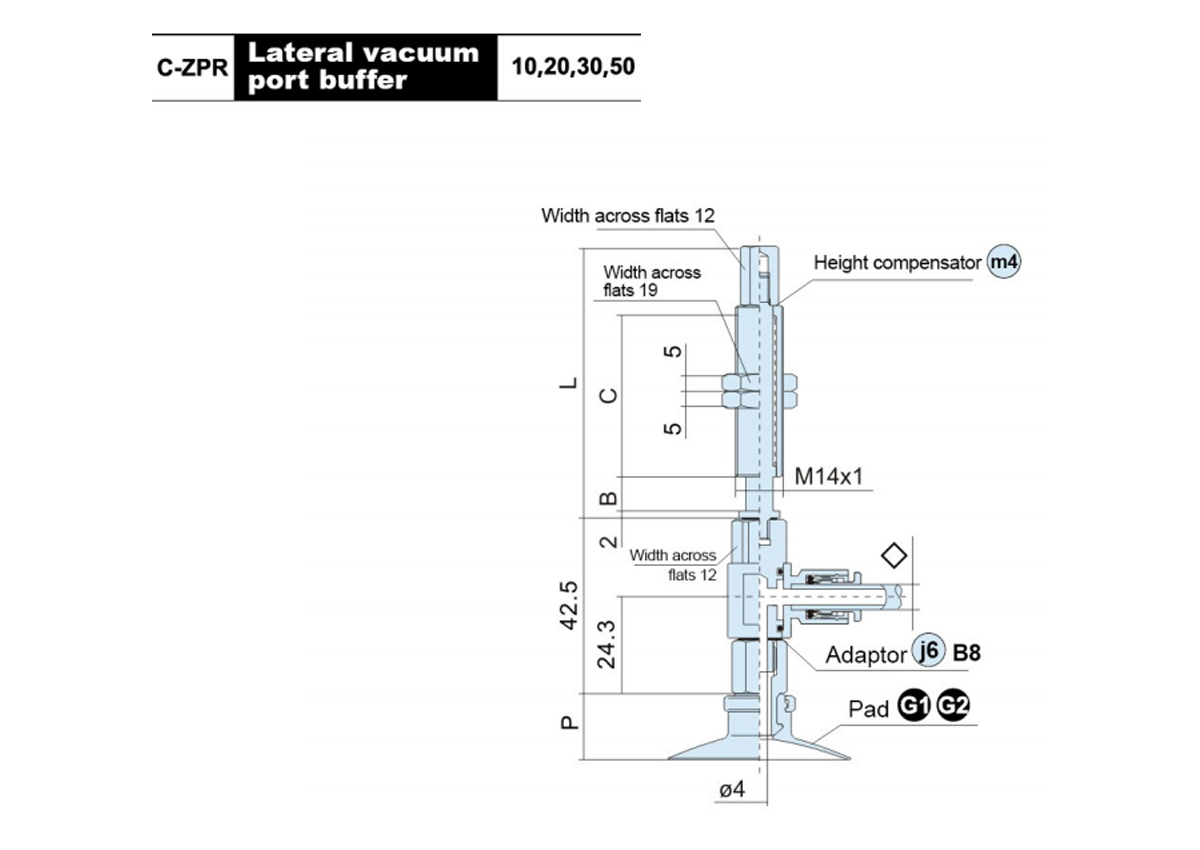

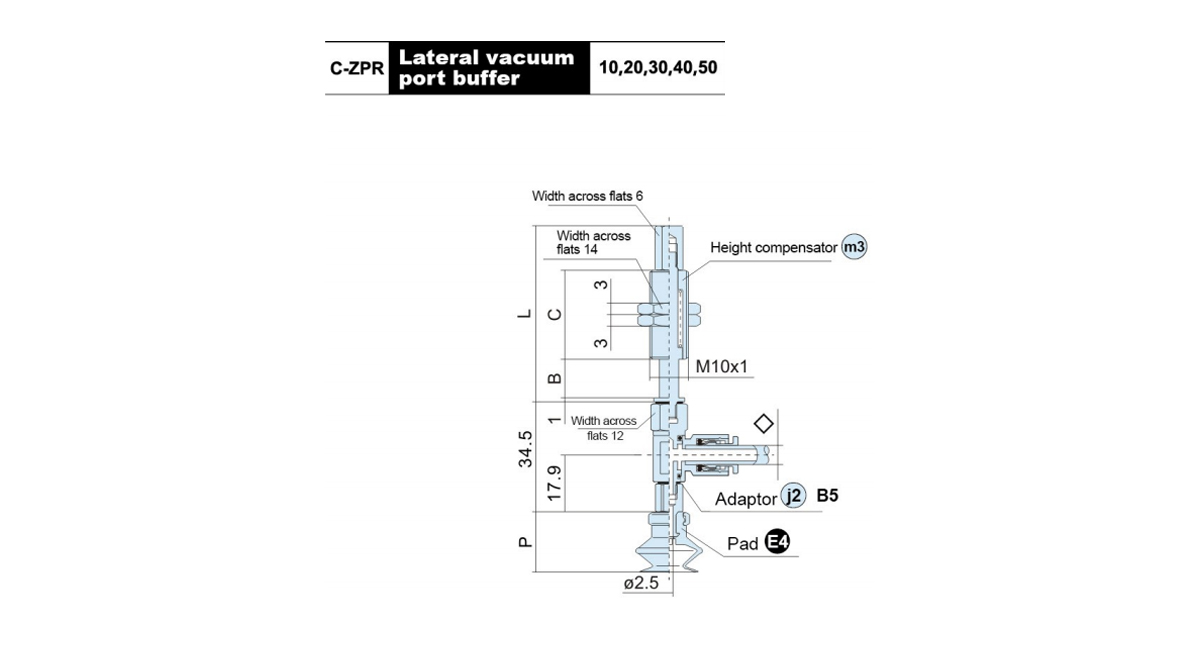

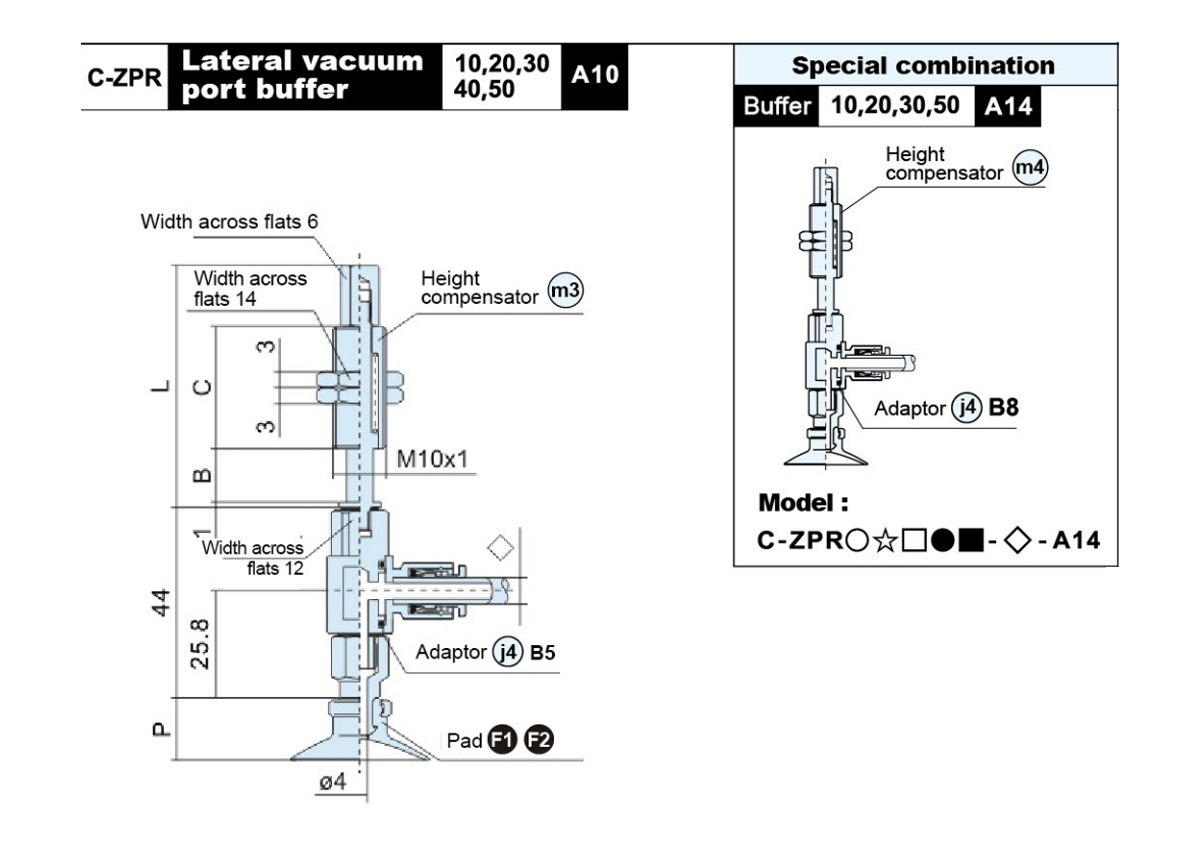

    C-ZPR○☆□●10-◇-A10 10 23 45 12 12 12.5 ZPR2-●10-◇-A10
    C-ZPR○☆□●20-◇-A10 20 51 83 ZPR2-●20-◇-A10
    C-ZPR○☆□●30-◇-A10 30 93 ZPR2-●30-◇-A10
    C-ZPR○☆□●40-◇-A10 40 77 129 ZPR2-●40-◇-A10
    C-ZPR○☆□●50-◇-A10 50 139 ZPR2-●50-◇-A10
    ○Symbol of pad diameter:10,13,16 □ Material:NBR(N),Silicone(S)
    ☆ Pad type:Flat(U),with ribs(C)
    ◇Vacuum port connection:04,06
    ● Height compensator type:Rotative(J),
    Unable to rotate(K)

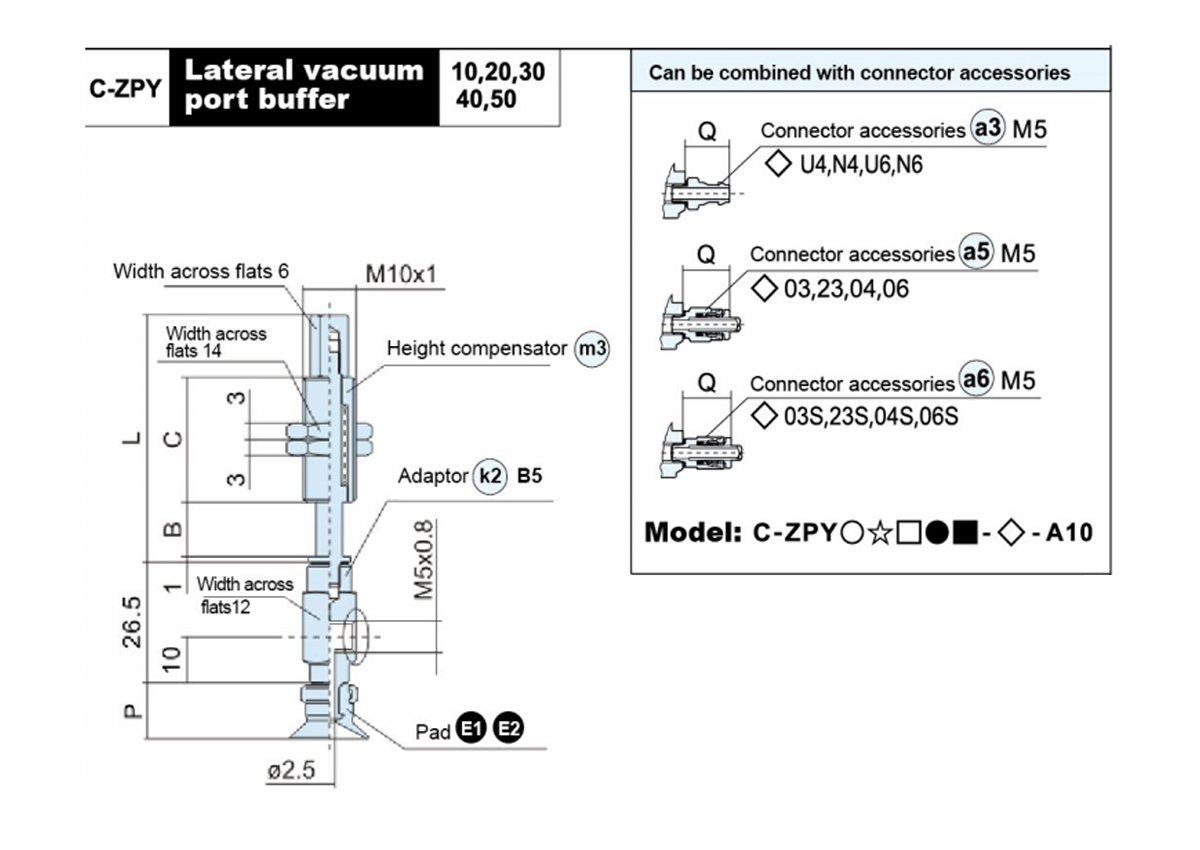

    Model B C L ○Pad Diameter P m3 j⑫
    Bumper Support Model
    10 13 16

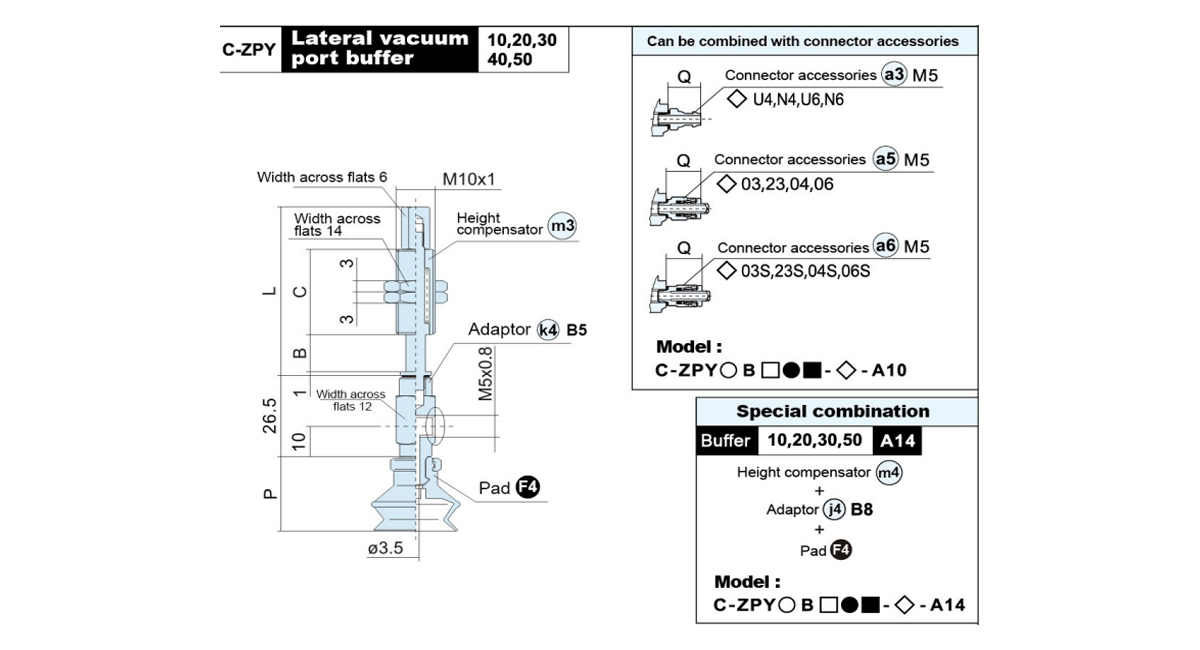

    C-ZPY○☆□●10-B5-A10 10 23 45 12 12 12.5 ZPY2-●10-B5-A10
    C-ZPY○☆口●20-B5-A10 20 51 83 ZPY2-●20-B5-A10
    C-ZPY○☆□●30-B5-A10 30 93 ZPY2-●30-B5-A10
    C-ZPY○☆□●40-B5-A10 40 77 129 ZPY2-●40-B5-A10
    C-ZPY○☆□●50-B5-A10 50 139 ZPY2-●50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □ Material:NBR(N),Silicone(S)
    ☆ Pad type:Flat(U),with  ribs(C)
    ●   Height   compensator   type:Rotative(J),
    ■ Buffer stroke(mm):10,20,30,40,50  Unable to rotate(K)

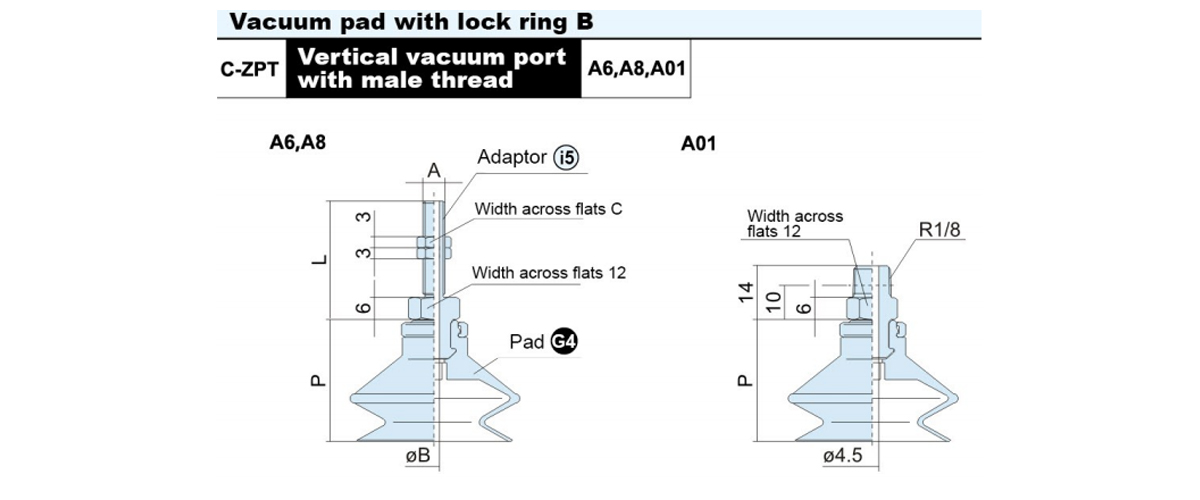

    Model A B C D L ○ Pad diameter P Adaptor Model
    20 25 32

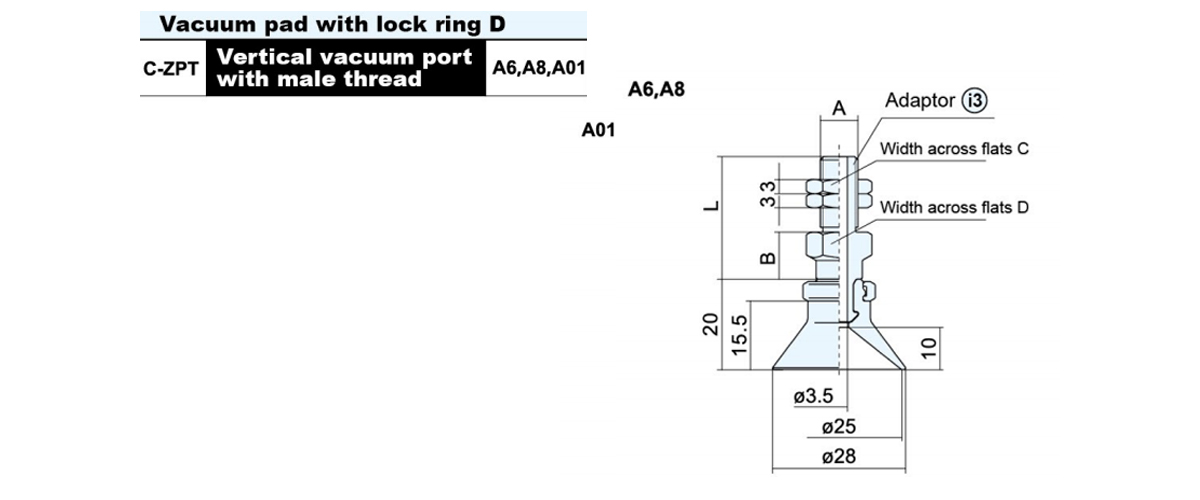

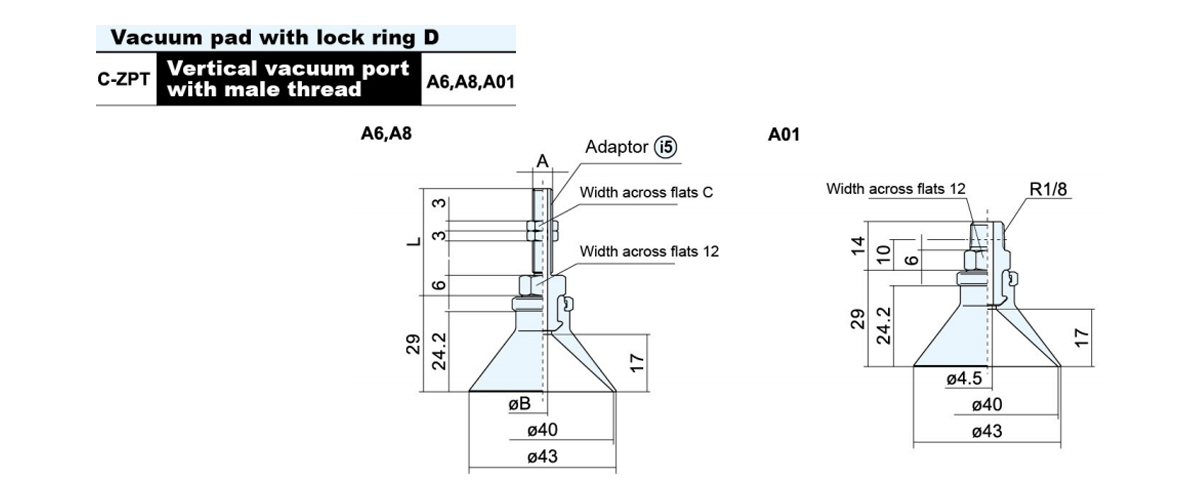

    C-ZPT○☆□-A6 M6×1.0 5 8 8 31 14 14 14.5 ZPT3-A6
    C-ZPT○☆□-A8 M8×1.0 10 12 12 26 ZPT3-A8
    C-ZPT○☆□-A01 - - - - - ZPT3-A01
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

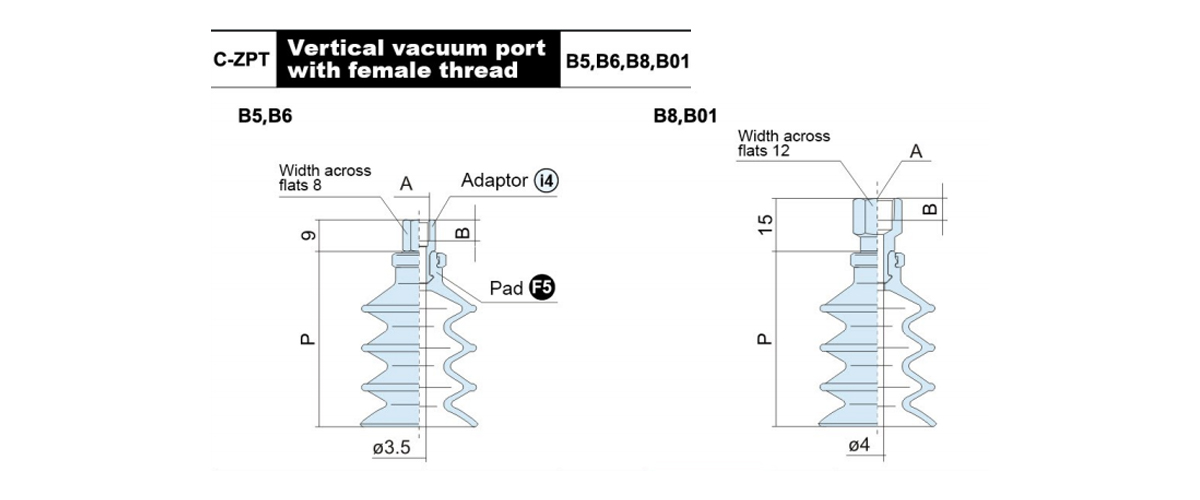

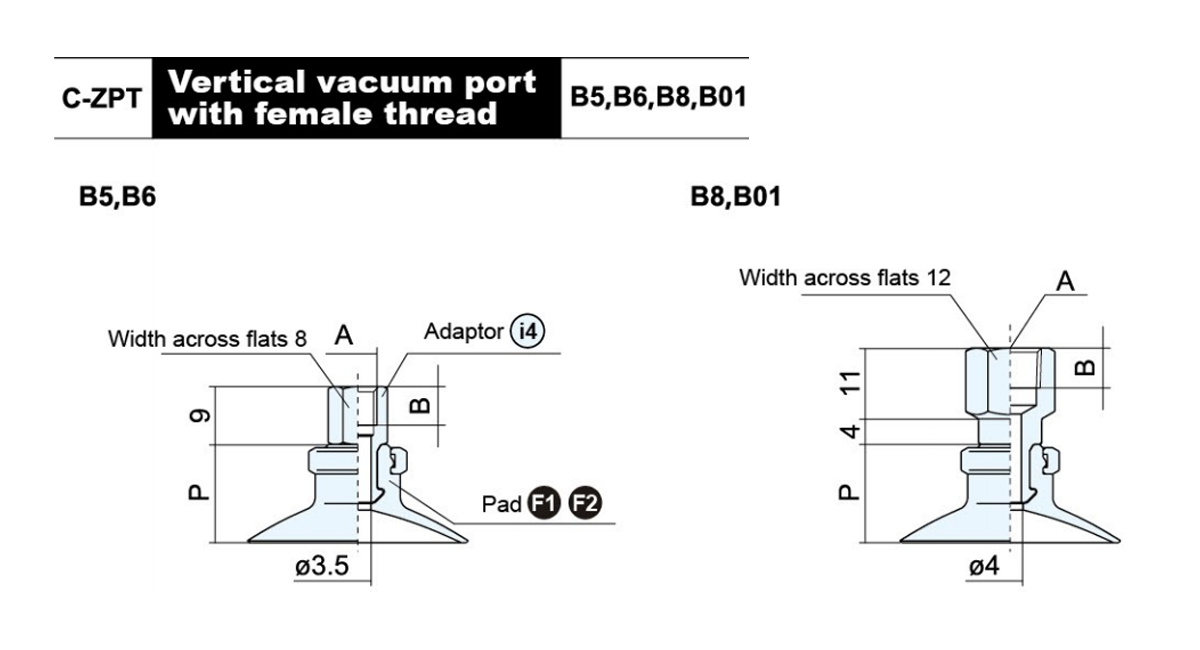

    Model A B ○Pad diameter P Adaptor Model
    20 25 32

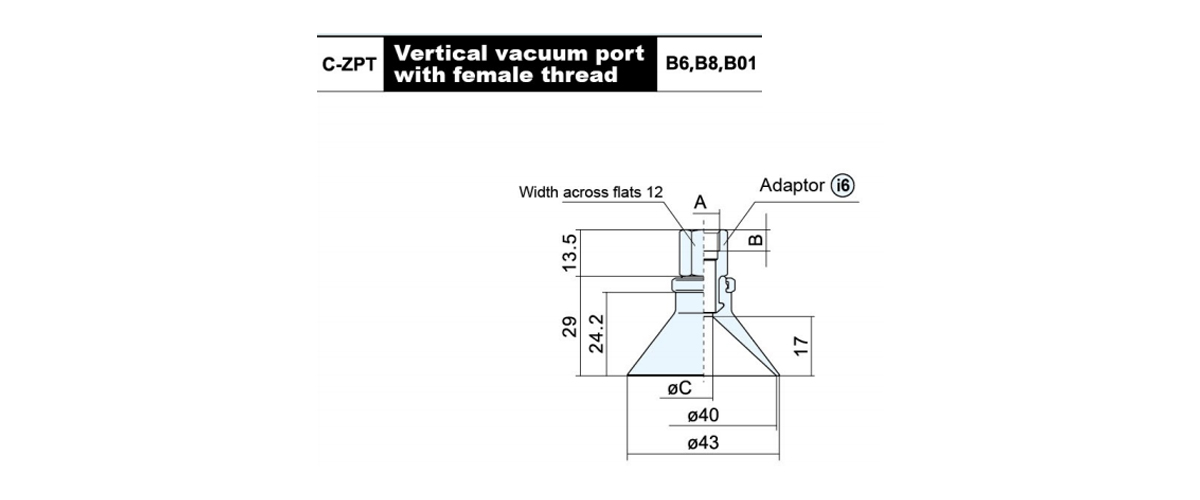

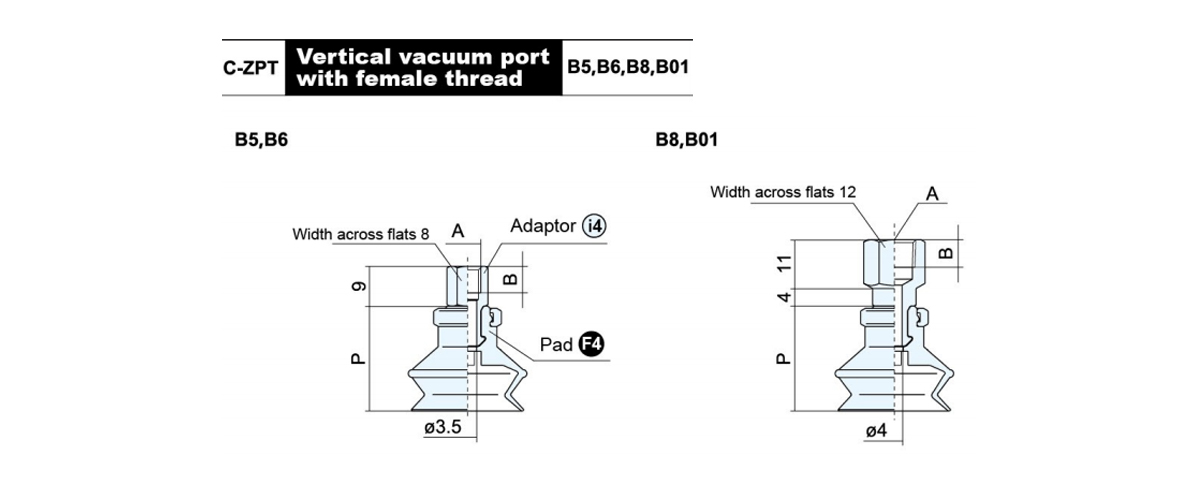

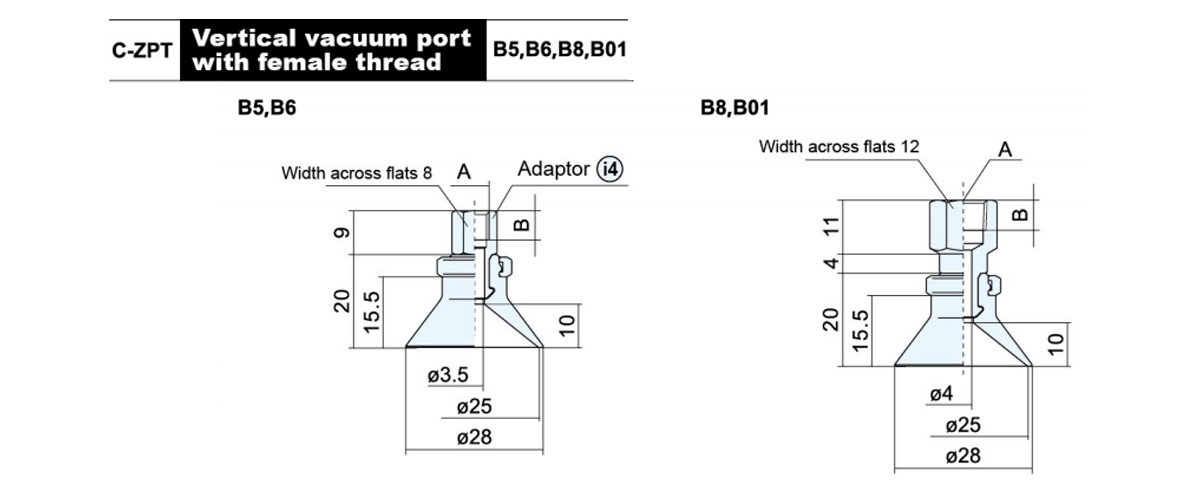

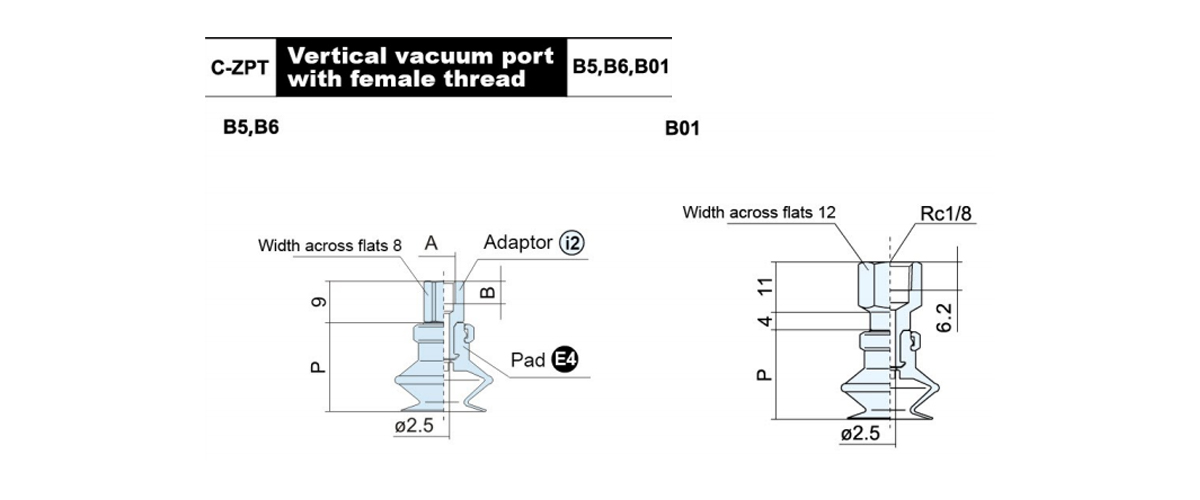

    C-ZPT○☆□-B5 M5×0.8 5 14 14 14.5 ZPT3-B5
    C-ZPT○☆□-B6 M6×1.0 6 ZPT3-B6
    C-ZPT○☆□-B6 M8×1.25 8 ZPT3-B8
    C-ZPT○☆□-B01 Rc1/8 6.2 ZPT3-B01
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

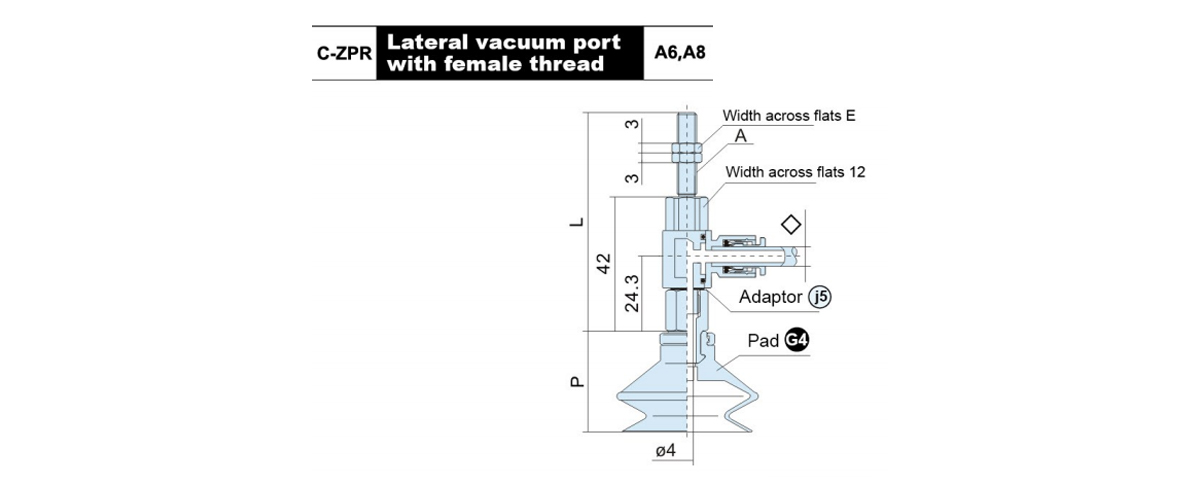

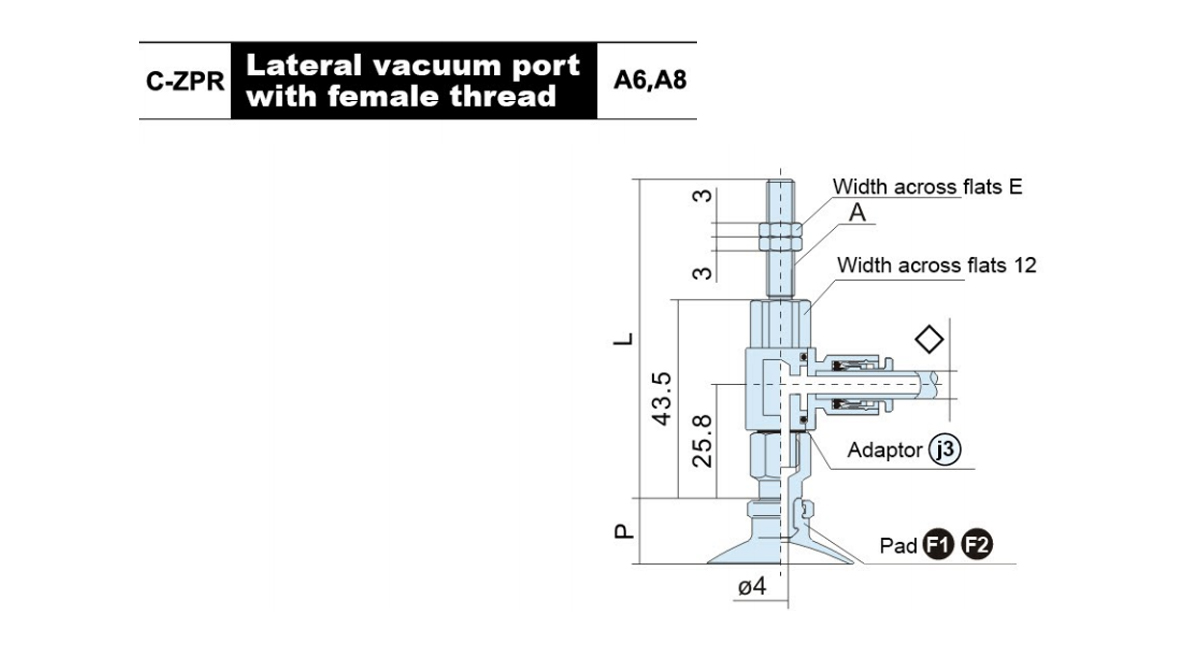

    Model A E L ○Pad diameter P Adaptor Model
    20 25 32

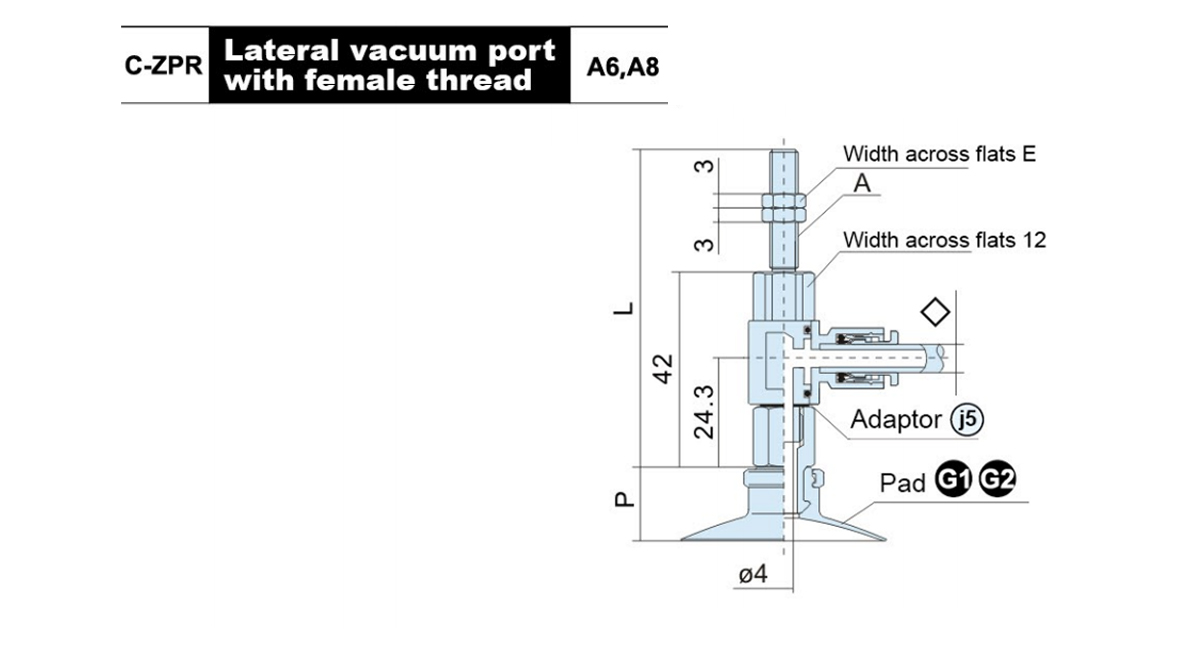

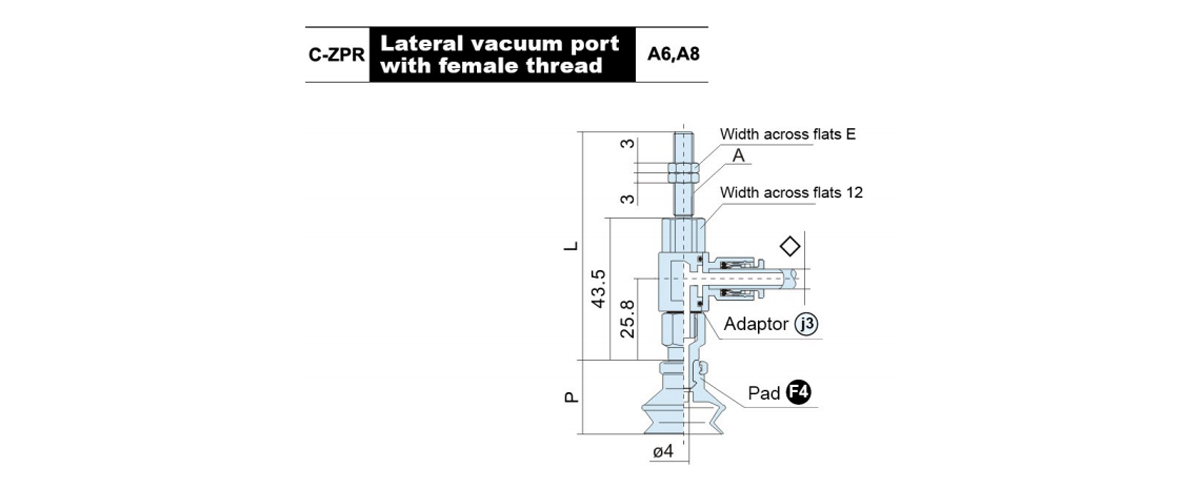

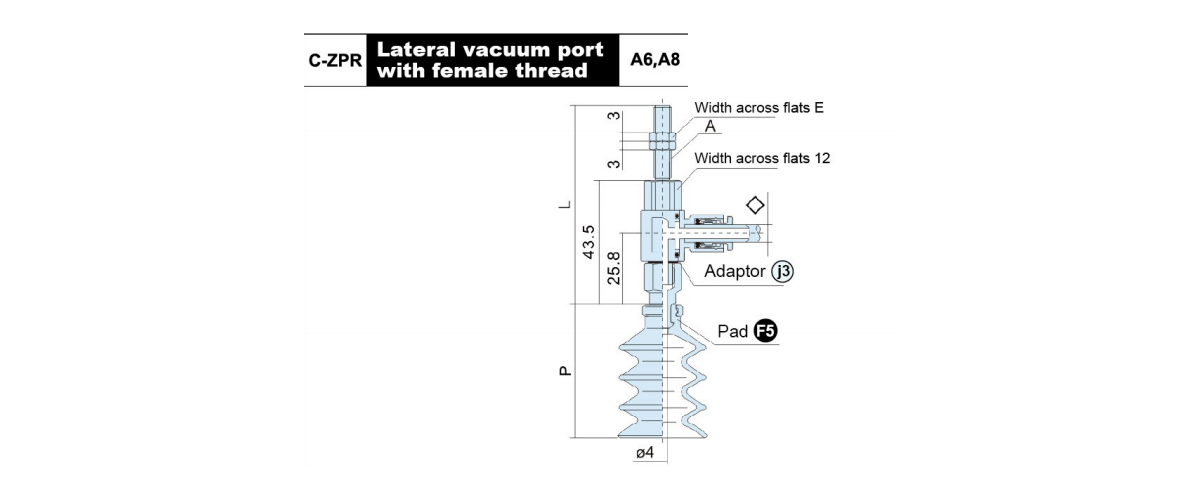

    C-ZPR○☆□-◇-A6 M6×1.0 8 69.5 14 14 14.5 ZPR3-◇-A6
    C-ZPR○☆□-◇-A8 M8×1.0 12 59.5 ZPR3-◇-A8
    ○Symbol of pad diameter:20,25,32☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)    ◇Vacuum port connection:04,06,08

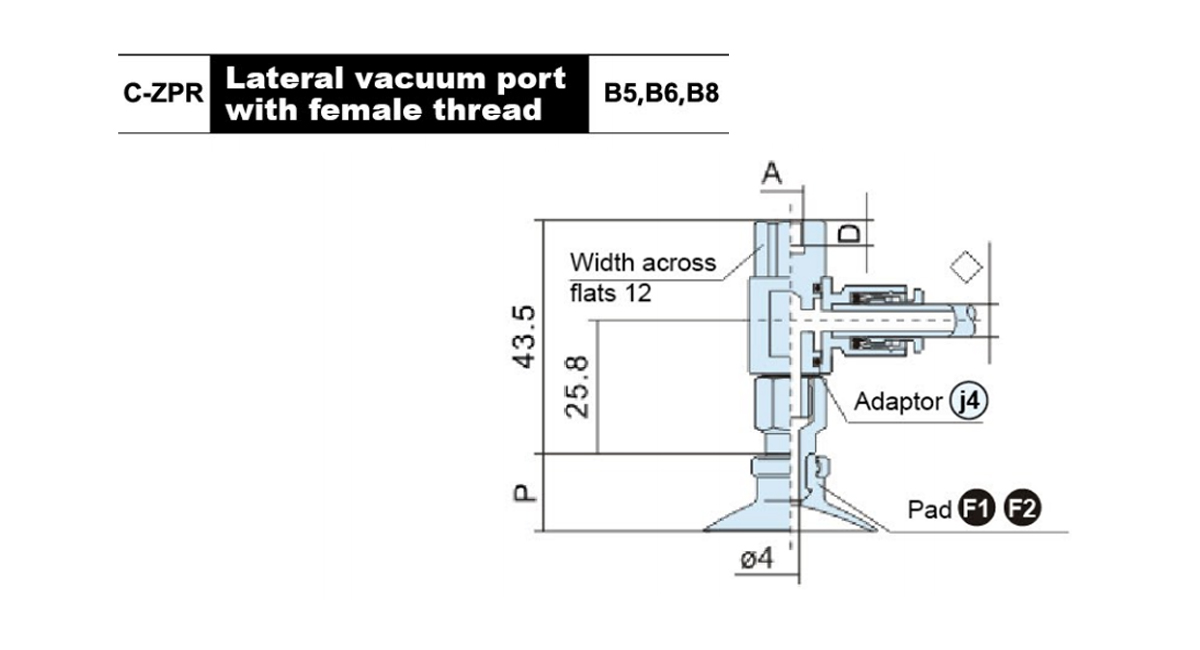

    Model A D ○ Pad diameter P Adaptor Model
    20 25 32

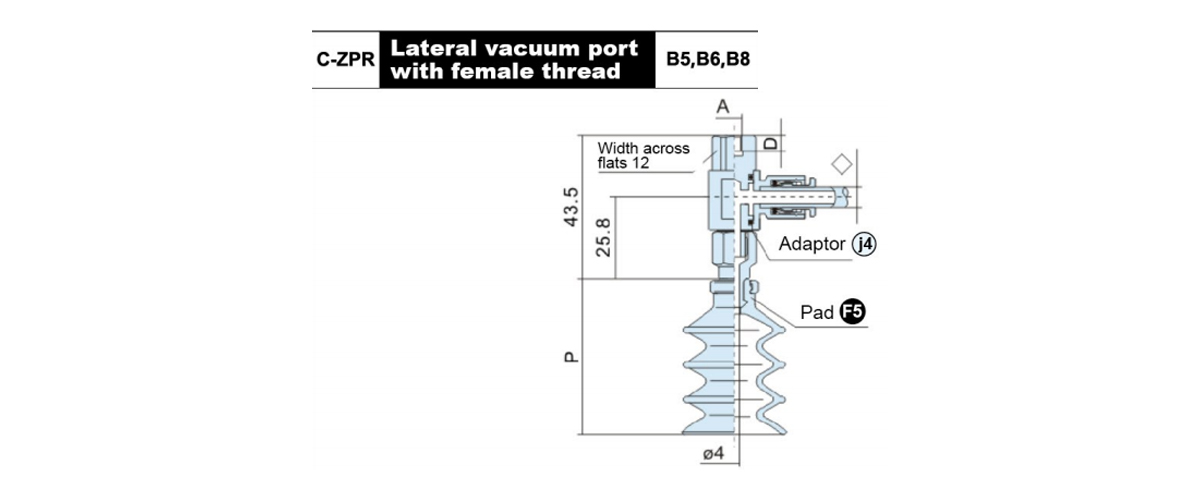

    C-ZPR○☆口 - ◇-B5 M5×0.8 5 14 14 14.5 ZPR3-◇-B5
    C-ZPR○☆□-◇-B6 M6×1.0 6 ZPR3-◇-B6
    C-ZPR○☆□-◇-B8 M8×1.25 8 ZPR3-◇-B8
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)          Vacuum port connection:04,06,08

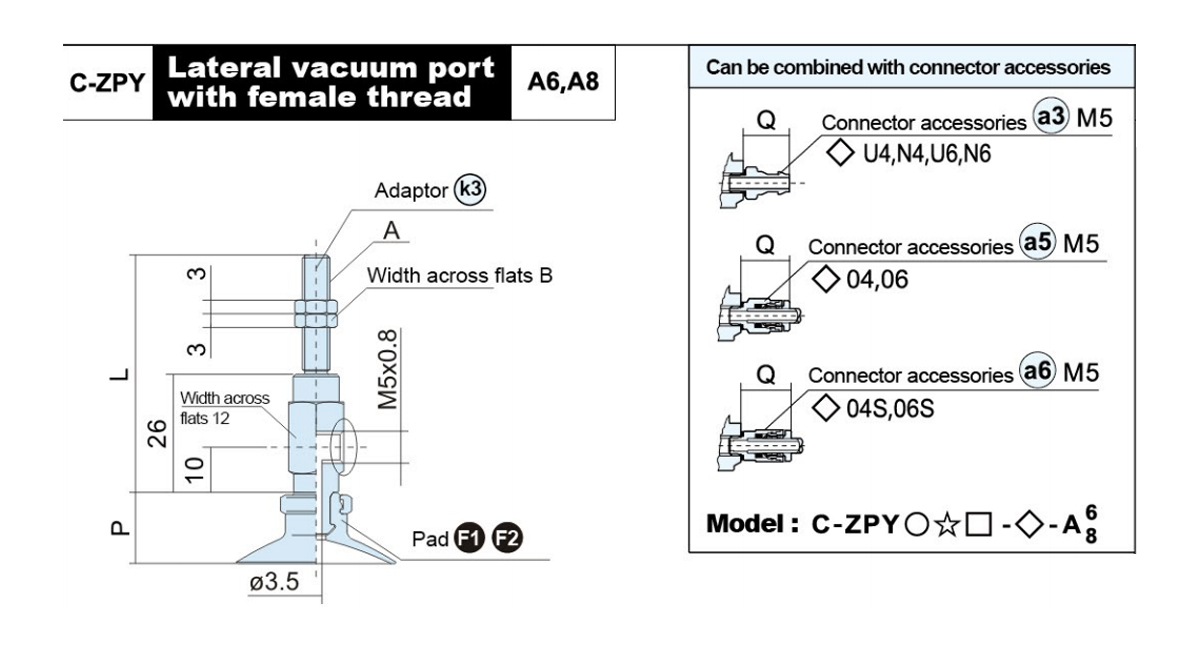

    Model A B L ○Pad diameter P Adaptor Model
    20 25 32

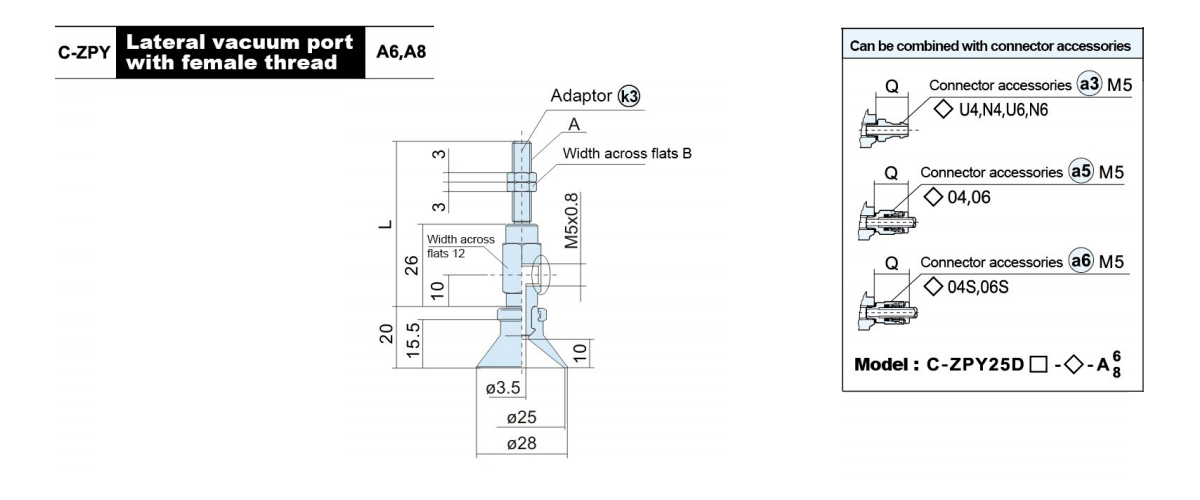

    C-ZPY○☆□-B5-A6 M6×1.0 8 54 14 14 14.5 ZPY3-B5-A6
    C-ZPY○☆□-B5-A8 M8×1.0 12 44 ZPY3-B5-A8
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

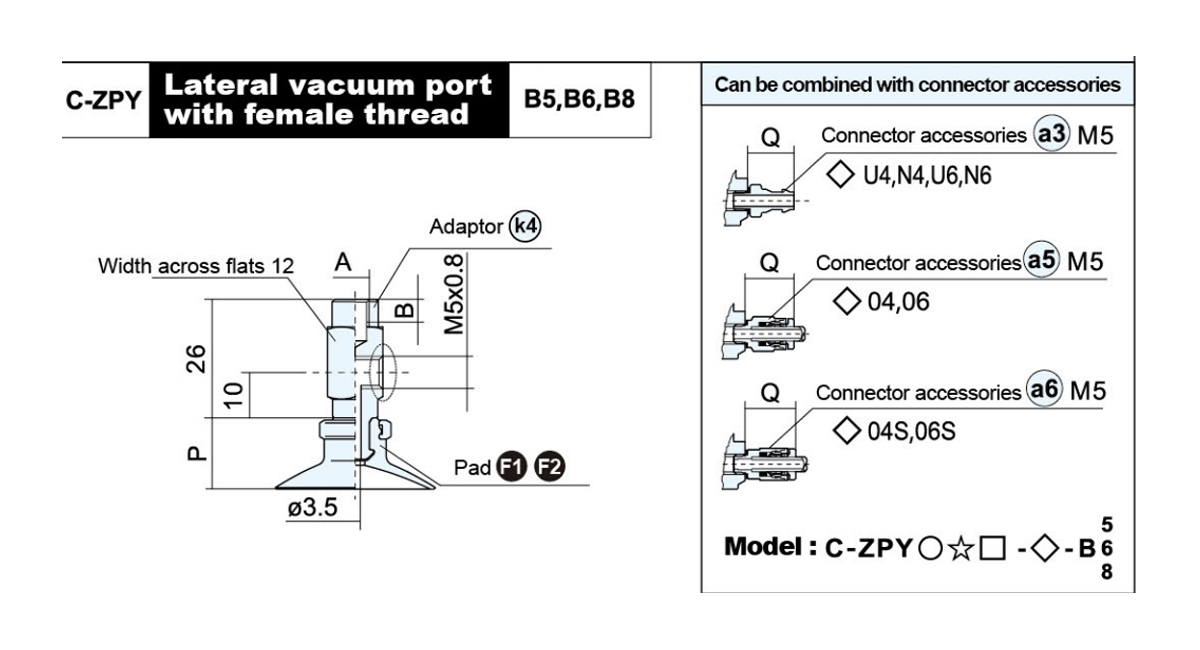

    Model A B ○Pad diameter P Adaptor Model
    20 25 32
    C-ZPY○☆□-B5-B5 M5×0.8 5 14 14 14.5 ZPY3-B5-B5
    C-ZPY○☆□-B5-B6 M6×1.0 6 ZPY3-B5-B6
    C-ZPY○☆□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    ○Symbol of pad diameter:20,25,32 ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

    Model B C L ○Pad Diameter P m1 i4
    Bumper Support Model
    20 25 32
    C-ZPT○☆□●10-B5-A10 10 23 47 14 14 14.5 ZPT3-●10-B5-A10
    C-ZPT○☆□●20-B5-A10 20 51 85 ZPT3-●20-B5-A10
    C-ZPT○☆□●30-B5-A10 30 95 ZPT3-●30-B5-A10
    C-ZPT○☆□●40-B5-A10 40 77 131 ZPT3-●40-B5-A10
    C-ZPT○☆□●50-B5-A10 50 141 ZPT3-●50-B5-A10
    ○Symbol of pad diameter:20,25,32 □ Material:NBR(N),Silicone(S)
    ☆Pad type:Flat(U),with ribs(C)
    ●Height compensator type:Rotative(J)
    ■Buffer stroke(mm):10,20,30,40,50                           Unable to rotate(K)

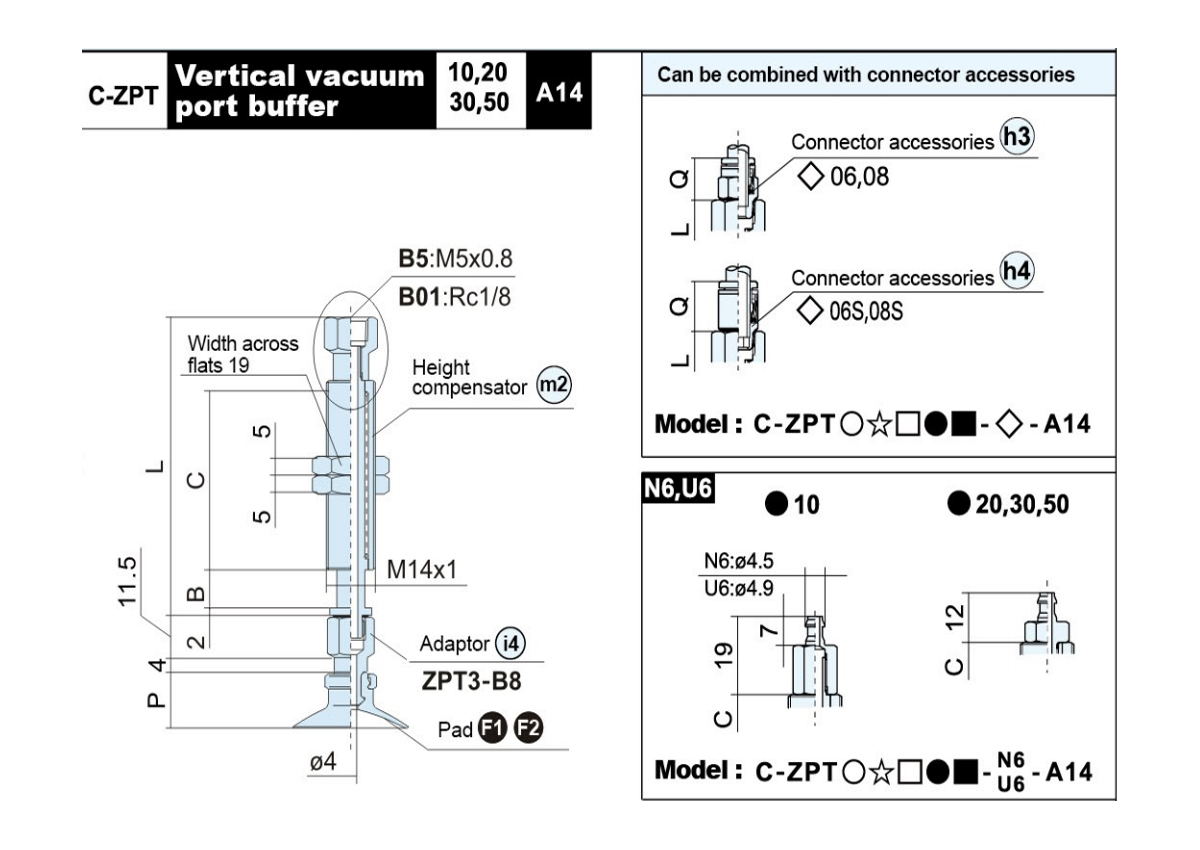

    Model B C L Pad
    U Diame
    Diameter     		P m2 i4
    Bumper Support Model
    20 25 32

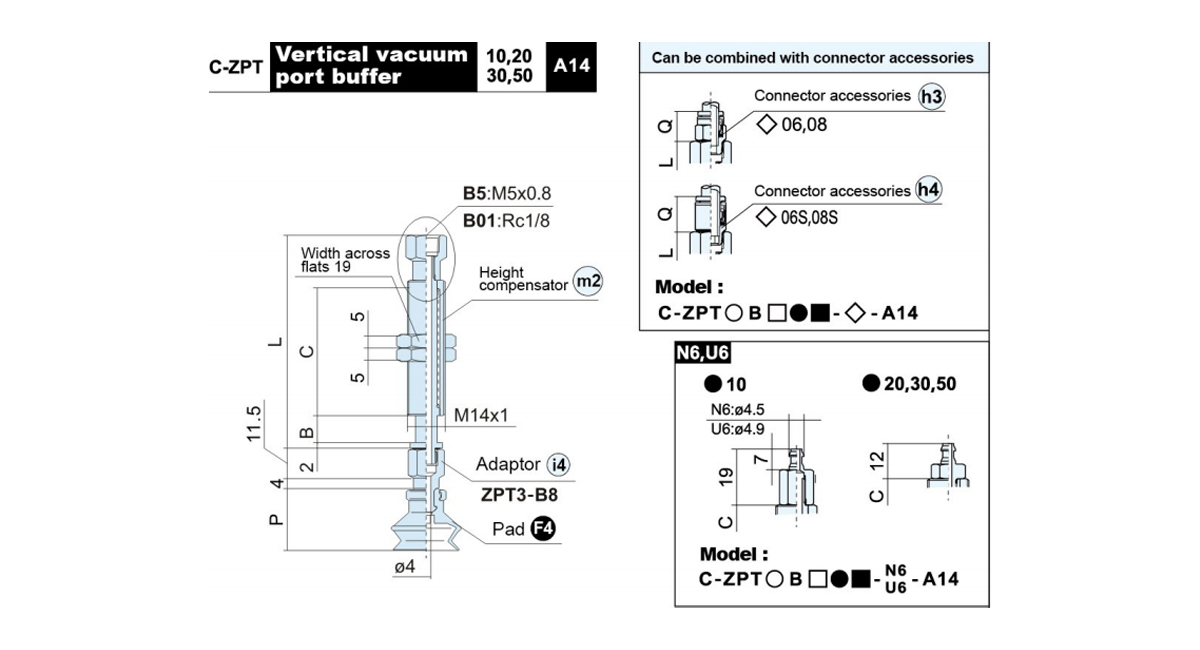

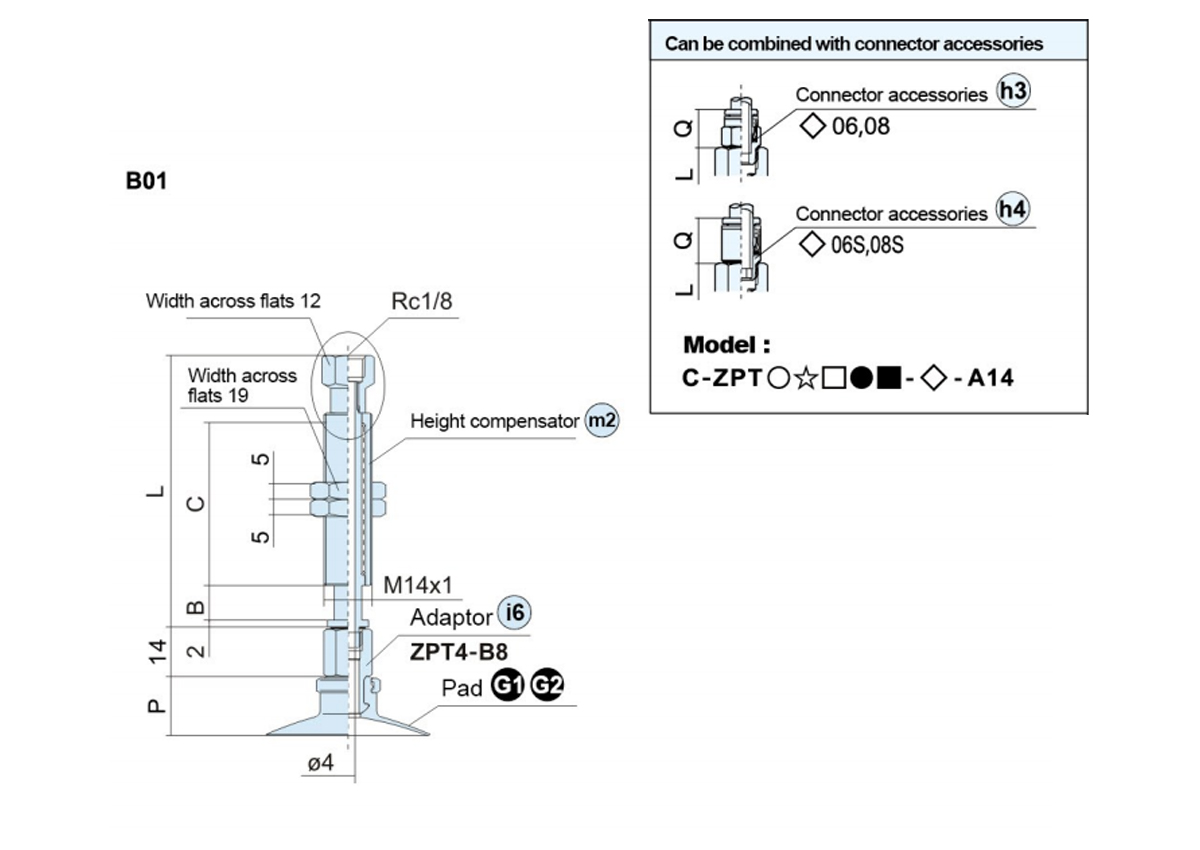

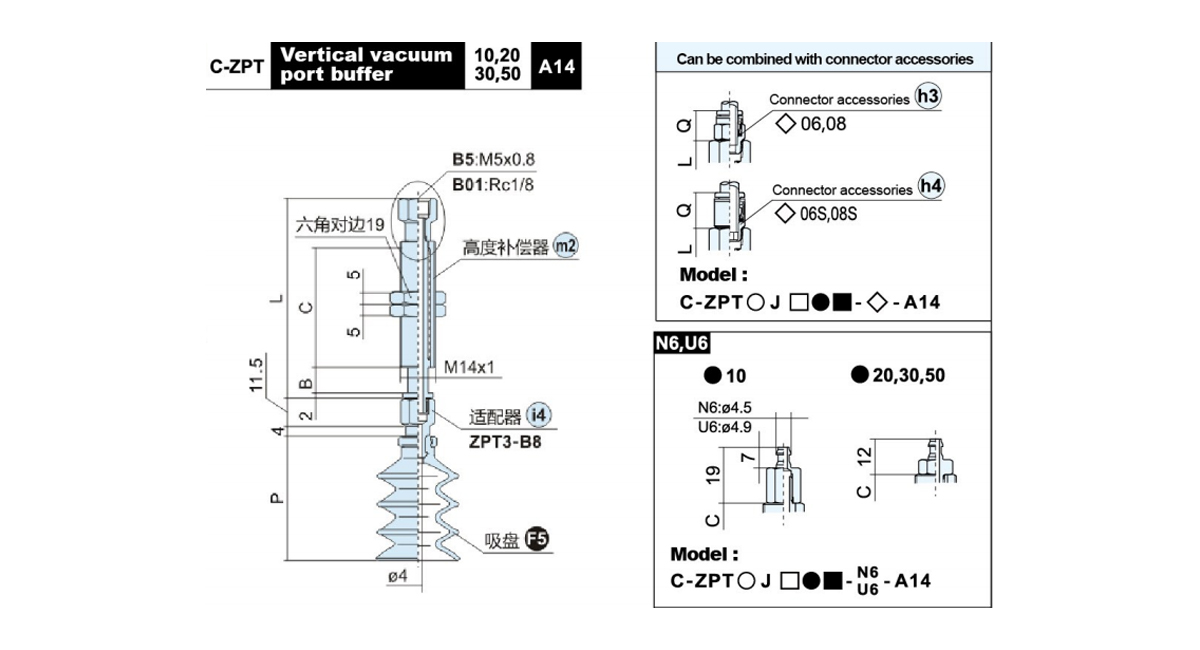

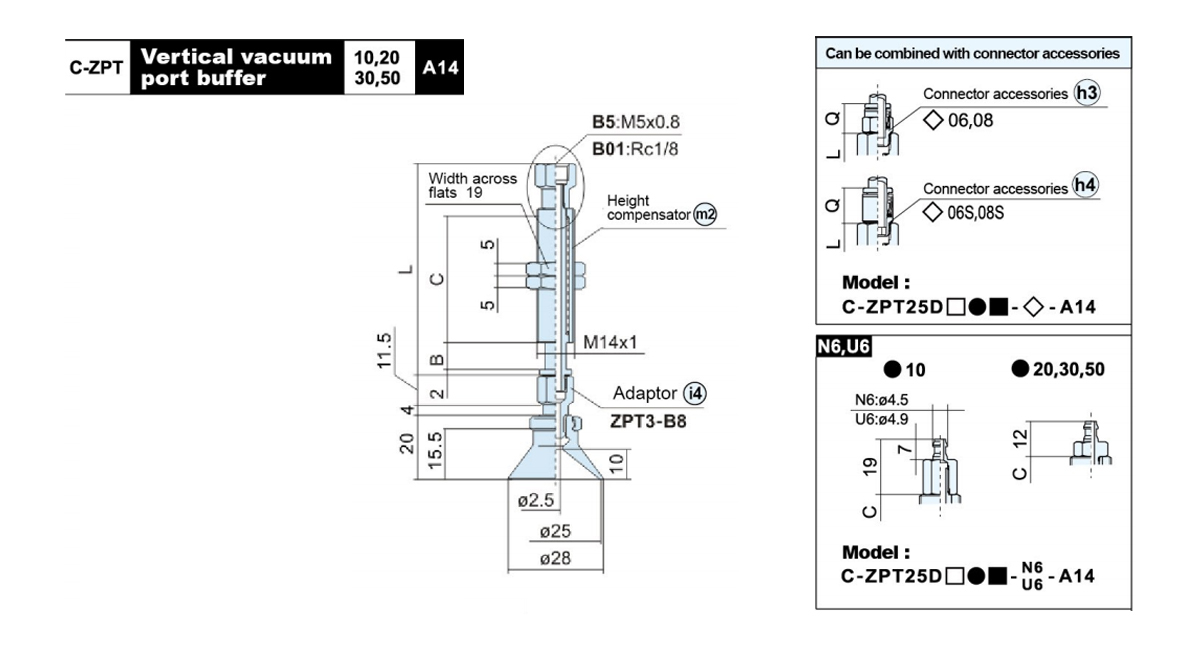

    C-ZPT○☆□●10-B5-A14 10 50 77 14 14 14.5 ZPT3-●10-B5-A14
    C-ZPT○☆□●20-B5-A14 20 81 ZPT3-●20-B5-A14
    C-ZPT○☆□●30-B5-A14 30 91 ZPT3-●30-B5-A14
    C-ZPT○☆□●50-B5-A14 50 75 136 ZPT3-●50-B5-A14
    C-ZPT○☆□●10-B01-A14 10 50 78.5 ZPT3-●10-B01-A14
    C-ZPT○☆□●20-B01-A14 20 84 ZPT3-●20-B01-A14
    C-ZPT○☆□●30-B01-A14 30 94 ZPT3-●30-B01-A14
    C-ZPT○☆□●50-B01-A14 50 75 139 ZPT3-●50-B01-A14
    ○Symbol  of  pad  diameter:20,25,32
    □Material:NBR(N),Silicone(S)
    ☆ Pad  type:Flat(U),with   ribs(C)
    ●   Height  compensator  type:Rotative(J)
    ■    Buffer   stroke(mm):10,20,30,50                                                         Unable to rotate(K)

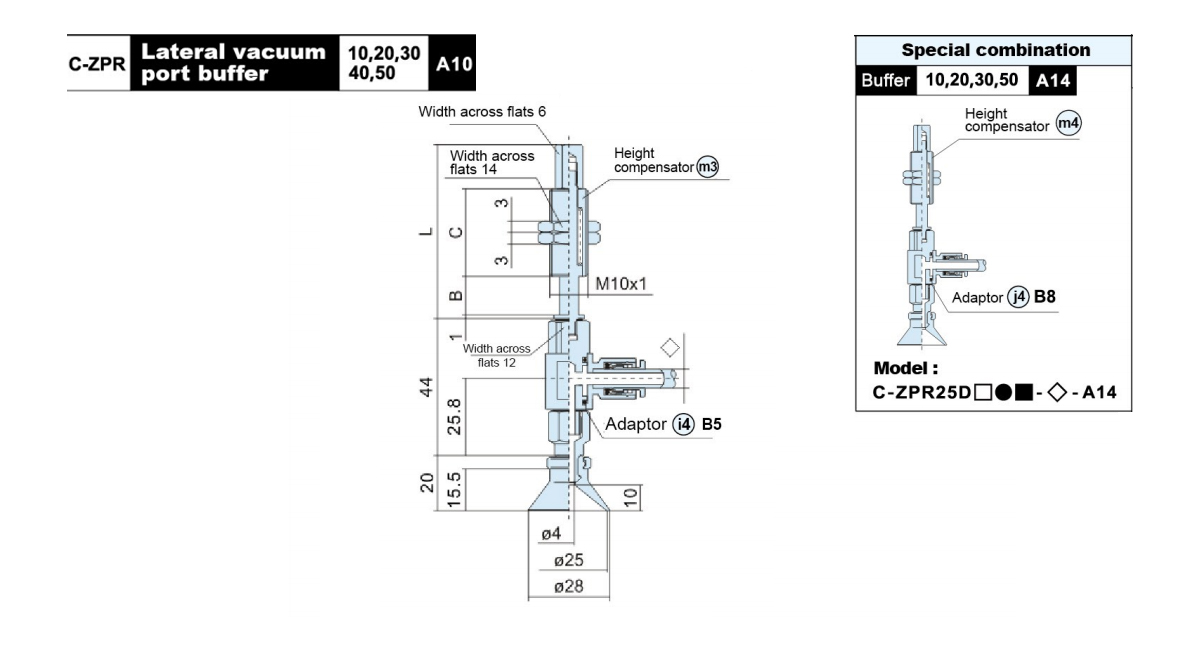

    Model B C L ○Pad Diameter P m3 ④
    Bumper Support Model
    20 25 32
    C-ZPR○☆□●10-◇-A10 10 23 45 14 14 14.5 ZPR3-●10-◇-A10
    C-ZPR○☆□●20-◇-A10 20 51 83 ZPR3-●20-◇-A10
    C-ZPR○☆口●30-◇-A10 30 93 ZPR3-●30-◇-A10
    C-ZPR○☆□●40-◇-A10 40 77 129 ZPR3-●40-◇-A10
    C-ZPR○☆□●50-◇-A10 50 139 ZPR3-●50-◇-A10
    ○Symbol of pad diameter:20,25,32
    □ Material:NBR(N),Silicone(S)
    ☆Pad type:Flat(U),with ribs(C)
    ● Height compensator type:Rotative(J)
    ◇Vacuum port connection:04,06,08
    Unable to rotate(K)

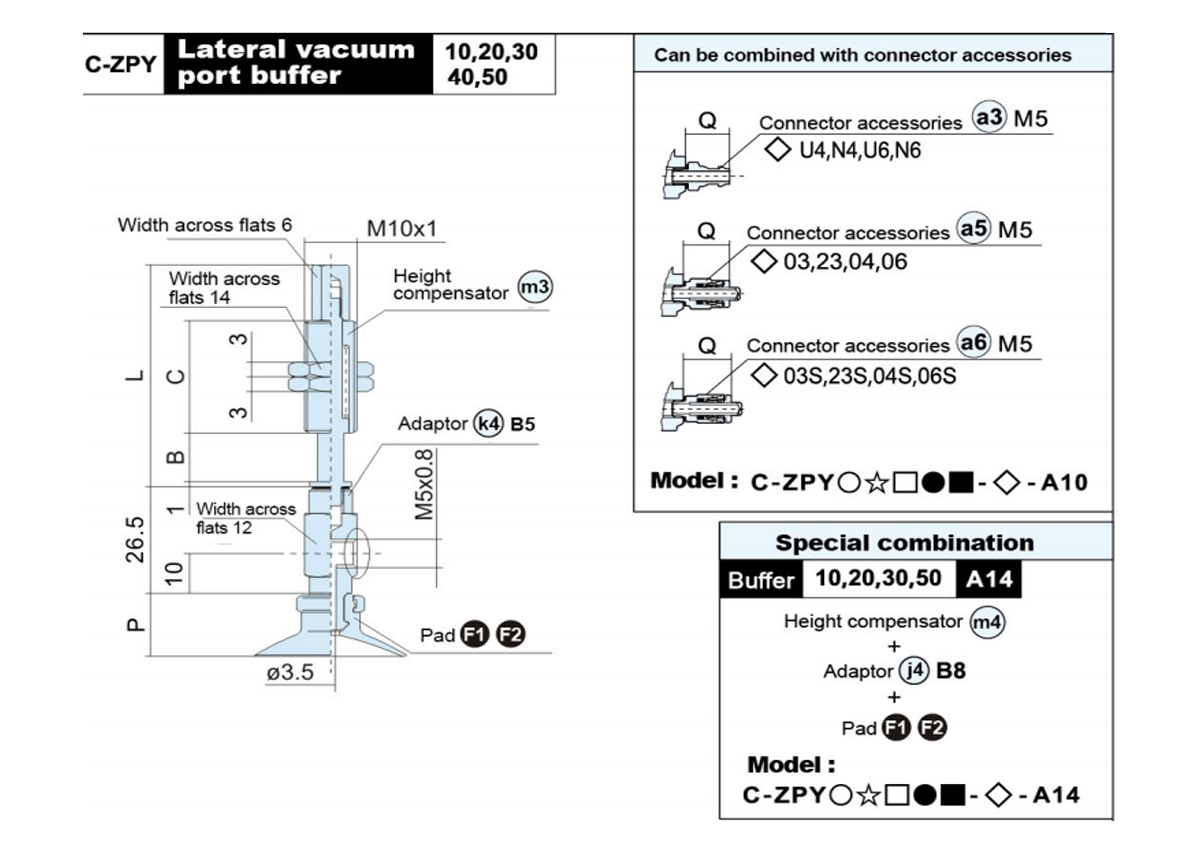

    Model B C L ○Pad Diameter P m3 k4
    Bumper Support Model
    20 25 32
    C-ZPY○☆□●10-B5-A10 10 23 45 14 14 14.5 ZPY3-●10-B5-A10
    C-ZPY○☆□●20-B5-A10 20 51 83 ZPY3-●20-B5-A10
    C-ZPY○☆口●30-B5-A10 30 93 ZPY3-●30-B5-A10
    C-ZPY○☆□●40-B5-A10 40 77 129 ZPY3-●40-B5-A10
    C-ZPY○☆□●50-B5-A10 50 139 ZPY3-●50-B5-A10
    ○Symbol of pad diameter:20,25,32
    □ Material:NBR(N),Silicone(S)
    ☆Pad type:Flat(U),with ribs(C)
    ● Height compensator type:Rotative(J)
    ■Buffer stroke(mm):10,20,30,50
    Unable to rotate(K)

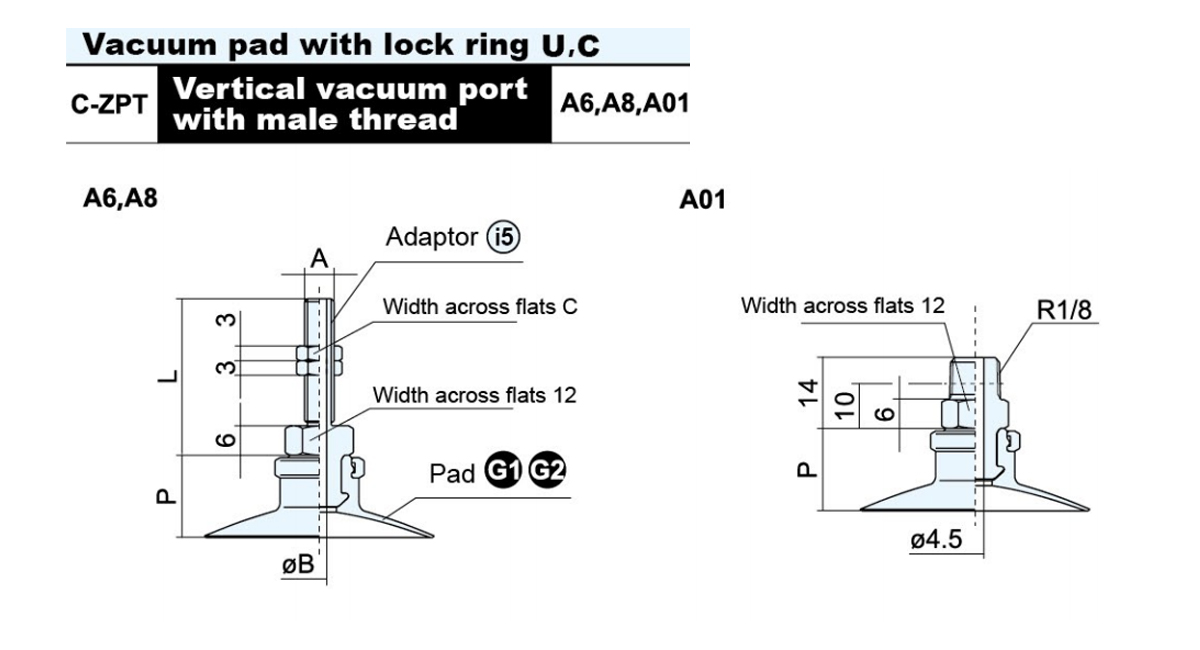

    Model A ØB C L ○Pad DiameterP Adaptor Model
    40 50
    C-ZPT○☆□-A6 M6×1.0 3.5 8 32 18.5 19.5 ZPT4-A6
    C-ZPT○☆□-A8 M8×1.0 4.5 12 22 ZPT4-A8
    C-ZPT○☆□-A01 - ZPT4-A01
    ○Symbol of pad diameter:40,50     ☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)

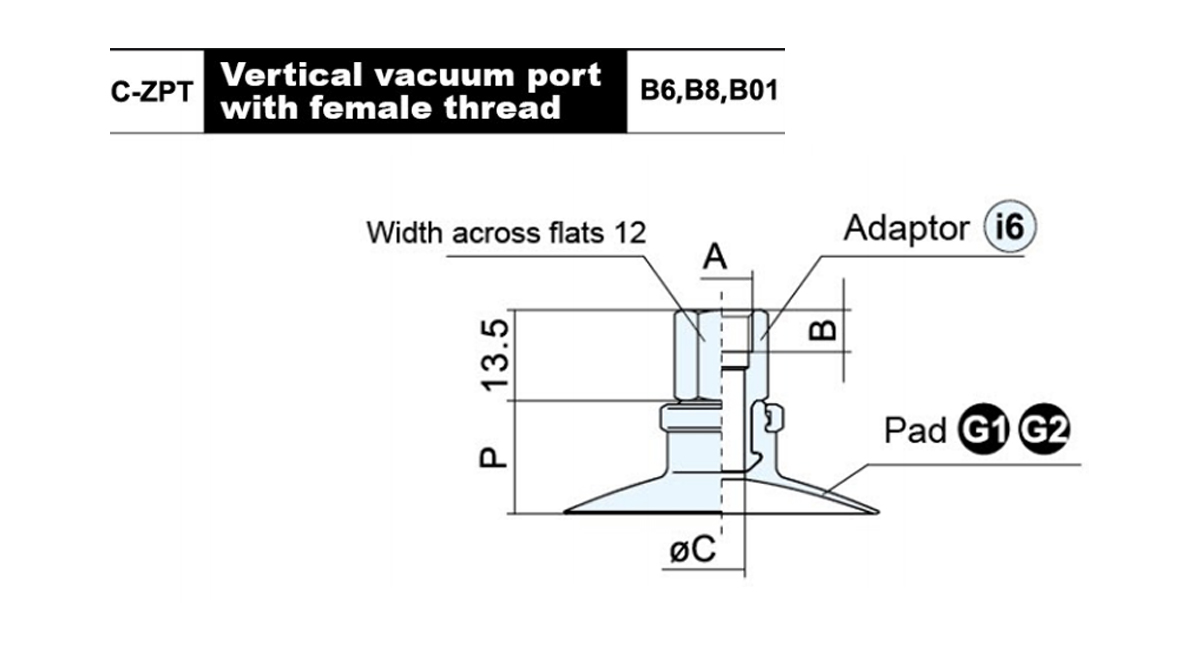

    Model A B oC ○Pad Diameter P Adaptor Model
    40 50
    C-ZPT○☆□-B6 M6×1.0 6 4.5 18.5 19.5 ZPT4-B6
    C-ZPT○☆□-B8 M8×1.25 8 6.8 ZPT4-B8
    C-ZPT○☆□-B01 Rc1/8 6.2 ZPT4-B01
    ○Symbol of pad diameter:40,50    ☆ Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

    Model A E L ○Pad Diameter P Adaptor Model
    40 50
    C-ZPR○☆□-◇-A6 M6×1.0 8 68 18.5 19.5 ZPR4-◇-A6
    C-ZPR○☆□-◇-A8 M8×1.0 12 58 ZPR4-◇-A8
    ○Symbol of pad diameter:40,50
    □Material:NBR(N),Silicone(S)
    ☆ Pad type:Flat(U),with ribs(C)
    ◇Vacuum port connection:06,08

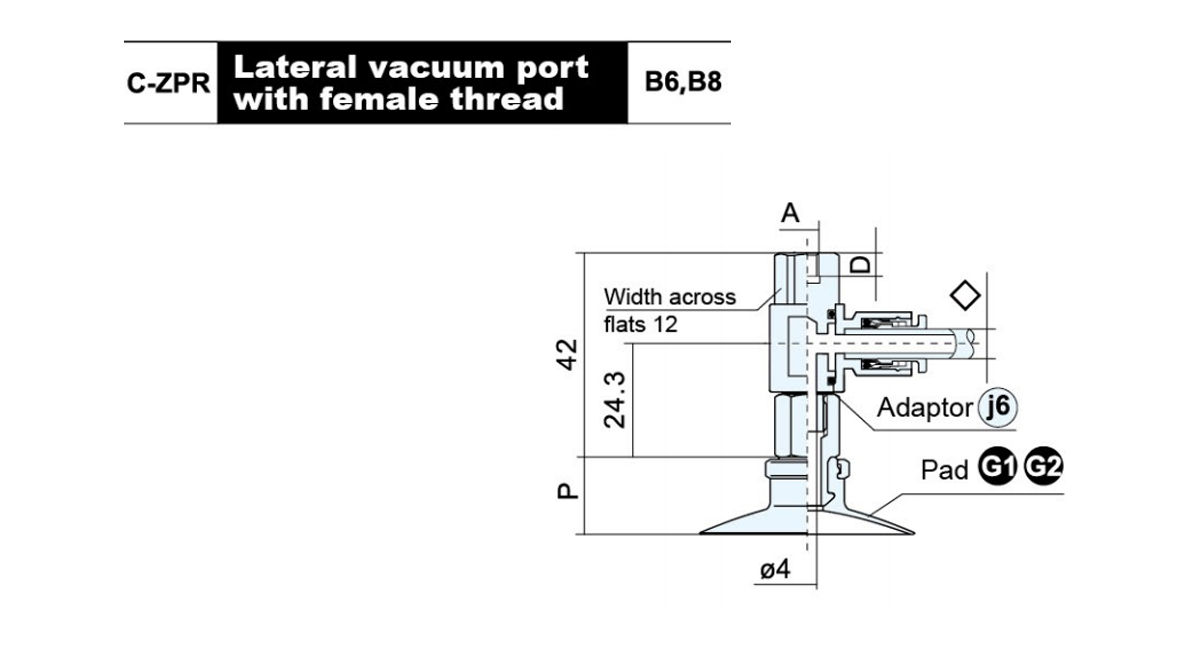

    Model A D ○Pad Diameter P Adaptor Model
    40 50
    C-ZPR○☆口 - ◇ -B6 M6×1.0 6 18.5 19.5 ZPR4-◇-B6
    C-ZPR○☆□-◇-B8 M8×1.25 8 ZPR4-◇-B8
    ○Symbol of pad diameter:40,50
    □Material:NBR(N),Silicone(S)
    ☆Pad type:Flat(U),with ribs(C)
    ◇Vacuum port connection:06,08

    Model A B L ○Pad DiameterP Adaptor Model
    40 50
    C-ZPY○☆□-B5-A6 M6×1.0 8 54 18.5 19.5 ZPY4-B5-A6
    C-ZPY○☆□-B5-A8 M8×1.0 12 44 ZPY4-B5-A8
    ○Symbol of pad diameter:40,50    ☆Pad type:Flat(U),with ribs(C)
    □Material:NBR(N),Silicone(S)

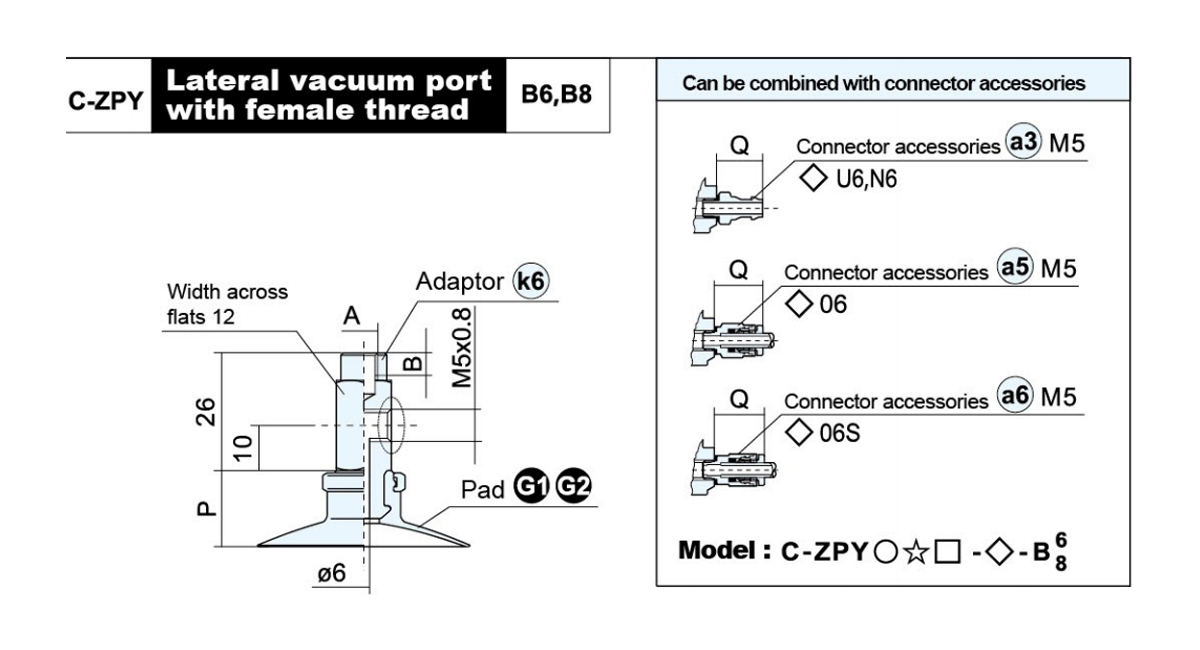

    Model A B ○Pad Diameter P Adaptor Model
    40 50
    C-ZPY○☆□-B5-B6 M6×1.0 6 18.5 19.5 ZPY3-B5-B6
    C-ZPY○☆□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    ○Symbol of pad diameter:40,50   ☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)

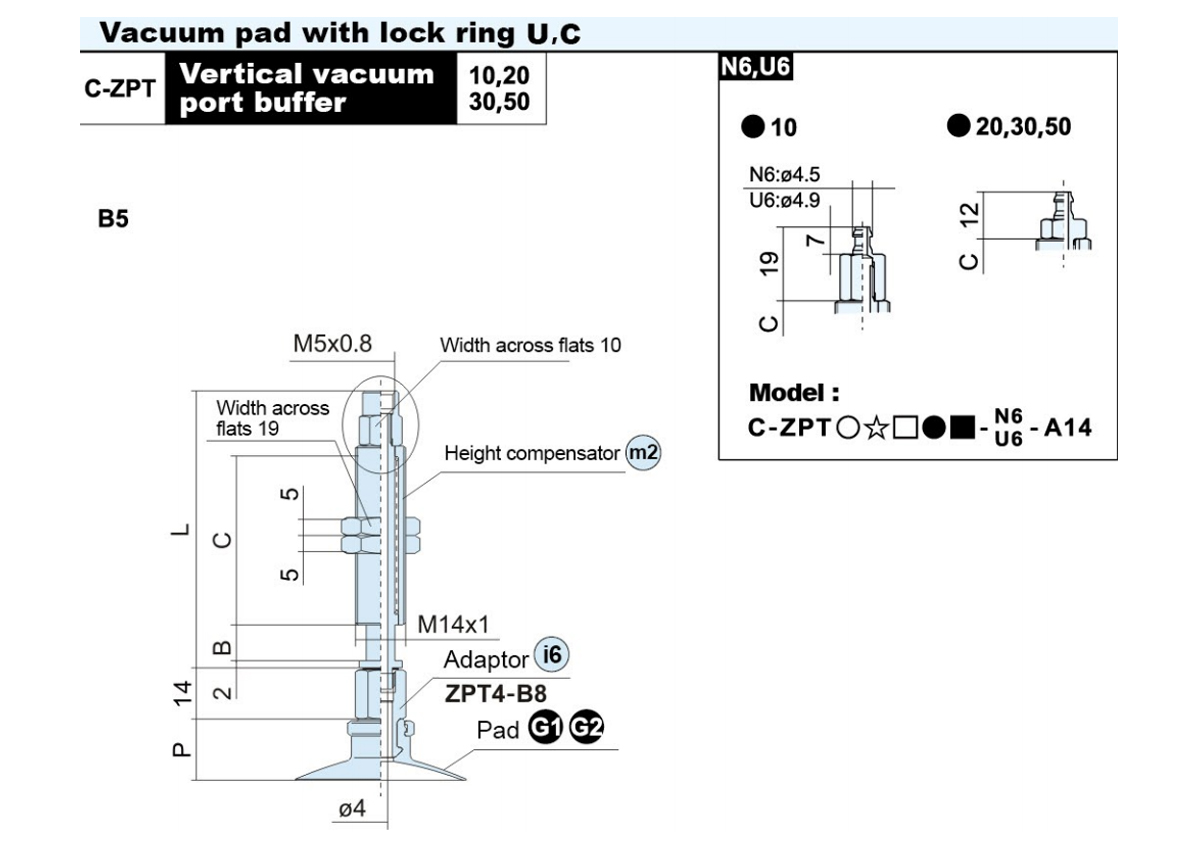

    Model B C L ○Pad Diameter P m2 i6
    Bumper Support Model
    40 50
    C-ZPT○☆□●10-B5-A14 10 50 77 18.5 19.5 ZPT4-●10-B5-A14
    C-ZPT○☆□●20-B5-A14 20 81 ZPT4-●20-B5-A14
    C-ZPT○☆□●30-B5-A14 30 91 ZPT4-●30-B5-A14
    C-ZPT○☆□●50-B5-A14 50 75 136 ZPT4-●50-B5-A14
    ○Symbol of pad diameter:40,50
    ☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)
    ●Height compensator type:Rotative(J),Unable to rotate(K)   ■Buffer stroke(mm):10,20,30,50

    Model B C L ○Pad Diameter P m2 i6
    Bumper Support Model
    40 50
    C-ZPT○☆□●10-B01-A14 10 50 78.5 18.5 19.5 ZPT4-●10-B01-A14
    C-ZPT○☆□●20-B01-A14 20 84 ZPT4-●20-B01-A14
    C-ZPT○☆□●30-B01-A14 30 94 ZPT4-●30-B01-A14
    C-ZPT○☆□●50-B01-A14 50 75 139 ZPT4-●50-B01-A14
    ○Symbol of pad diameter:40,50
    ☆ Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)
    ●Height compensator type:Rotative(J),Unable to rotate(K)   ■Buffer stroke(mm):10,20,30,50

    Model B C L ○Pad Diameter P m4 j6
    Bumper Support Model
    40 50
    C-ZPR○☆□●10-◇-A14 10 50 80 18.5 19.5 ZPR4-●10-◇-A14
    C-ZPR○☆□●20-◇-A14 20 77 ZPR4-●20-◇-A14
    C-ZPR○☆□●30-◇-A14 30 87 ZPR4-●30-◇-A14
    C-ZPR○☆□●50-◇-A14 50 75 132 ZPR4-●50-◇-A14
    ○ Symbol of pad diameter:40,50
    ☆Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)
    ●Height compensator type:Rotative(J)
    ◇Vacuum port connection:06,08
    Unable to rotate(K)

    Model B C L ○Pad Diameter P m4 k6
    Bumper Support Model
    40 50
    C-ZPY○☆□●10-◇-A14 10 50 80 18.5 19.5 ZPY4-●10-◇-A14
    C-ZPY○☆口●20-◇-A14 20 77 ZPY4-●20-◇-A14
    C-ZPY○☆□●30-◇-A14 30 87 ZPY4-●30-◇-A14
    C-ZPY○☆□●50-◇-A14 50 75 132 ZPY4-●50-◇-A14
    ○Symbol of pad diameter:40,50
    ☆Pad type:Flat(U),with ribs(C)
    □ Material:NBR(N),Silicone(S)
    ■Buffer stroke(mm):10,20,30,50
    ●Height compensator type:Rotative(J)
    Unable to rotate(K)

    Model A B C L ○Pad diameter P Adaptor Model
    10 16
    C-ZPT○D□-A5 M5×0.8 7 4 26 15 16 ZPT2-A5
    C-ZPT○D□-A6 M6×1.0 8 3 31 ZPT2-A6
    C-ZPT○D□-A01 - - ZPT2-A01
    ○Symbol of pad diameter:10,16 □Material:NBR(N),Silicone(S)

    Model A B ○Pad diameter  P Adaptor Model
    10 16
    C-ZPT○D□-B5 M5×0.8 5 15 16 ZPT2-B5
    C-ZPT○D□-B6 M6×1.0 6 ZPT2-B6
    C-ZPT○D□-B01 - - ZPT2-B01
    ○Symbol of pad diameter:10,16 □Material:NBR(N),Silicone(S)

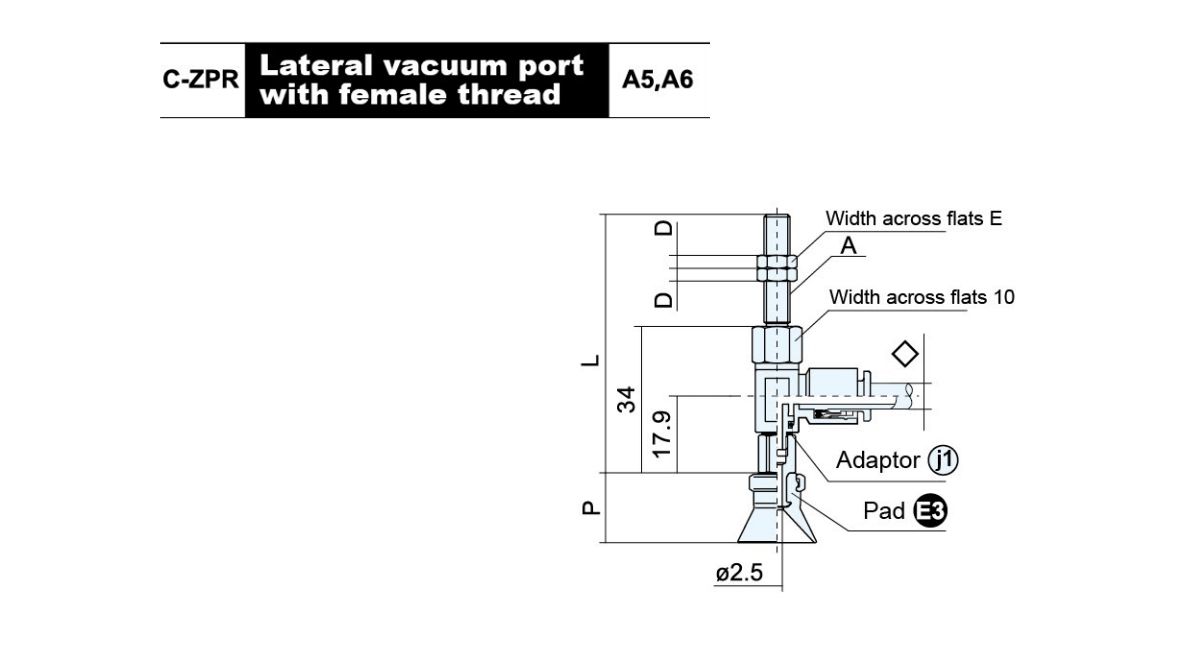

    Model A D E L ○Pad Diameter P Adaptor Model
    10 16
    C-ZPR○D□-◇-A5 M5×0.8 4 7 55 15 16 ZPR2-◇-A5
    C-ZPR○D□-◇-A6 M6×1.0 3 8 60 ZPR2-◇-A6
    ○Symbo of pad diameter:10,16   □Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

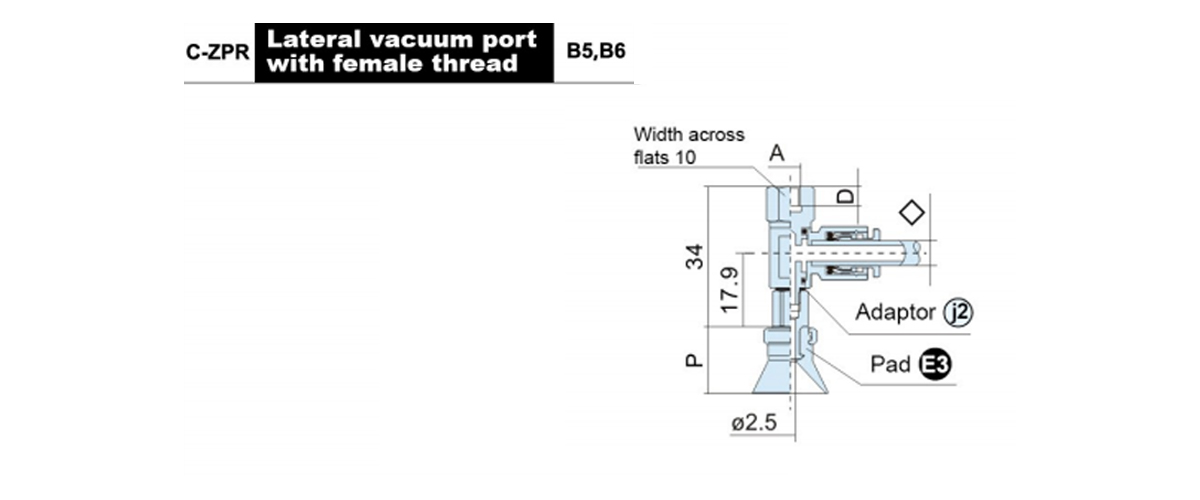

    Model A D ○Pad Diameter P Adaptor Model
    10 16
    C-ZPR○D□-◇-B5 M5×0.8 5 15 16 ZPR2-◇-B5
    C-ZPR○D□-◇-B6 M6×1.0 6 ZPR2-◇-B6
    ○Symbol of pad diameter:10,16  □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

    Model A B C L ○Pad Diameter P Adaptor Model
    10 16
    C-ZPY○D□-B5-A5 M5×0.8 7 4 47 15 16 ZPY2-B5-A5
    C-ZPY○D□-B5-A6 M6×1.0 8 3 52 ZPY2-B5-A6
    ○Symbol of pad diameter:10,16   □Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter P Adaptor Model
    10 16
    C-ZPY○D□-B5-B5 M5×0.8 5 15 16 ZPY2-B5-B5
    C-ZPY○D□-B5-B6 M6×1.0 6 ZPY2-B5-B6
    ○Symbol of pad diameter:10,16   □Material:NBR(N),Silicone(S)

    Model B C L ○Pad Diameter P P m1 i2
    Bumper Support Model
    10 16
    C-ZPT○D□J10-B5-A10 10 23 47 15 16 ZPT2-J10-B5-A10
    C-ZPT○D□J20-B5-A10 20 51 85 ZPT2-J20-B5-A10
    C-ZPT○D□J30-B5-A10 30 95 ZPT2-J30-B5-A10
    C-ZPT○D□J40-B5-A10 40 77 131 ZPT2-J40-B5-A10
    C-ZPT○D□J50-B5-A10 50 141 ZPT3-J50-B5-A10
    ○Symbol of pad diameter:10,16
    □ Material:NBR(N),Silicone(S)
    ■Buffer stroke(mm):10,20,30,40,50
    ● Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○Pad Diameter P m1 i2
    Bumper Support Model
    10 16
    C-ZPT○D□K10-B5-A10 10 23 47 15 16 ZPT2-K10-B5-A10
    C-ZPT○D□K20-B5-A10 20 51 85 ZPT2-K20-B5-A10
    C-ZPT○D□K30-B5-A10 30 95 ZPT2-K30-B5-A10
    C-ZPT○D□K40-B5-A10 40 77 131 ZPT2-K40-B5-A10
    C-ZPT○D□K50-B5-A10 50 141 ZPT3-K50-B5-A10
    ○Symbol of pad diameter:10,16
    □ Material:NBR(N),Silicone(S)
    ■Buffer stroke(mm):10,20,30,40,50
    ● Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○Pad Diameter P m3 j2
    Bumper Support Model
    10 16
    C-ZPR○D□●10-◇-A10 10 23 45 15 16 ZPR2-●10-◇-A10
    C-ZPR○D□●20-◇-A10 20 51 83 ZPR2-●20-◇-A10
    C-ZPR○D□●30-◇-A10 30 93 ZPR2-●30-◇-A10
    C-ZPR○D□●40-◇-A10 40 77 129 ZPR2-●40-◇-A10
    C-ZPR○D□●50-◇-A10 50 139 ZPR2-●50-◇-A10
    ○ Symbol of pad diameter:10,16
    ◇Vacuum port connection:04,06
    □    Material:NBR(N),Silicone(S)
    ●  Height compensator type:Rotative(J)
    Unable to rotate(K)

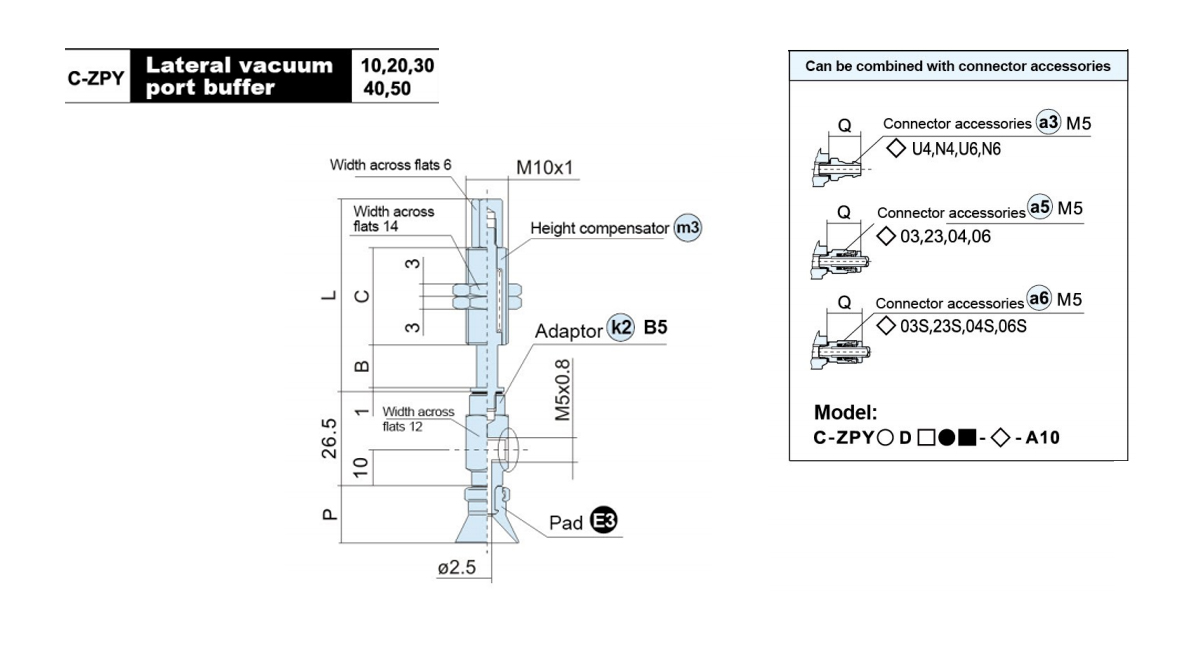

    Model B C L ○Pad Diameter P m3 j2
    Bumper Support Model
    10 16
    C-ZPY○D□●10-B5-A10 10 23 45 15 16 ZPY2-●10-B5-A10
    C-ZPY○D□●20-B5-A10 20 51 83 ZPY2-●20-B5-A10
    C-ZPY○D□●30-B5-A10 30 93 ZPY2-●30-B5-A10
    C-ZPY○D□●40-B5-A10 40 77 129 ZPY2-●40-B5-A10
    C-ZPY○D□●50-B5-A10 50 139 ZPY2-●50-B5-A10
    ○ Symbol of pad diameter:10,16
    □    Material:NBR(N),Silicone(S)
    ■  Buffer  stroke(mm):10,20,30,40,50
    ●  Height  compensator type:Rotative(J)
    Unable to rotate(K)

    Model A B C D L Adaptor
    Model
    C-ZPT25D□-A6 M6×1.0 5 8 8 31 ZPT3-A6
    C-ZPT25D□-A8 M8×1.0 10 12 12 26 ZPT3-A8
    C-ZPT25D□-A01 - - - - - ZPT3-A01
    □Material:NBR(N),Silicone(S)

    Model A B Adaptor
    Model
    C-ZPT25D□-B5 M5×0.8 5 ZPT3-B5
    C-ZPT25D□-B6 M6×1.0 6 ZPT3-B6
    C-ZPT25D□-B6 M8×1.25 8 ZPT3-B8
    C-ZPT25D□-B01 Rc1/8 6.2 ZPT3-B01
    □ Material:NBR(N),Silicone(S)

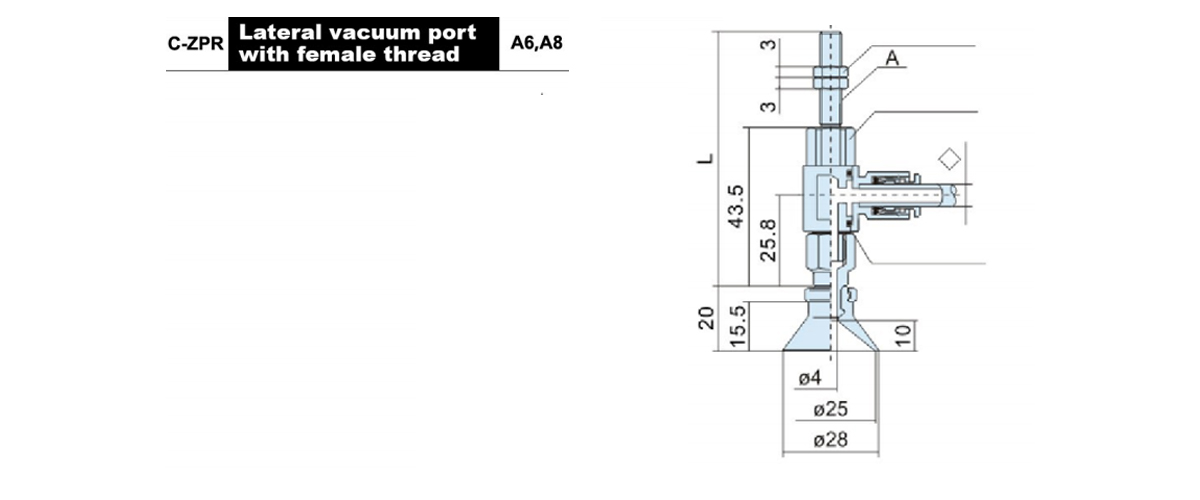

    Model A E L Adaptor
    Model
    C-ZPR25D□-◇ -A6 M6×1.0 8 69.5 ZPR3-◇-A6
    C-ZPR25D□-◇ -A8 M8×1.0 12 59.5 ZPR3-◇-A8
    □Material:NBR(N),Silicone(S)◇Vacuum port connection:04,06,08

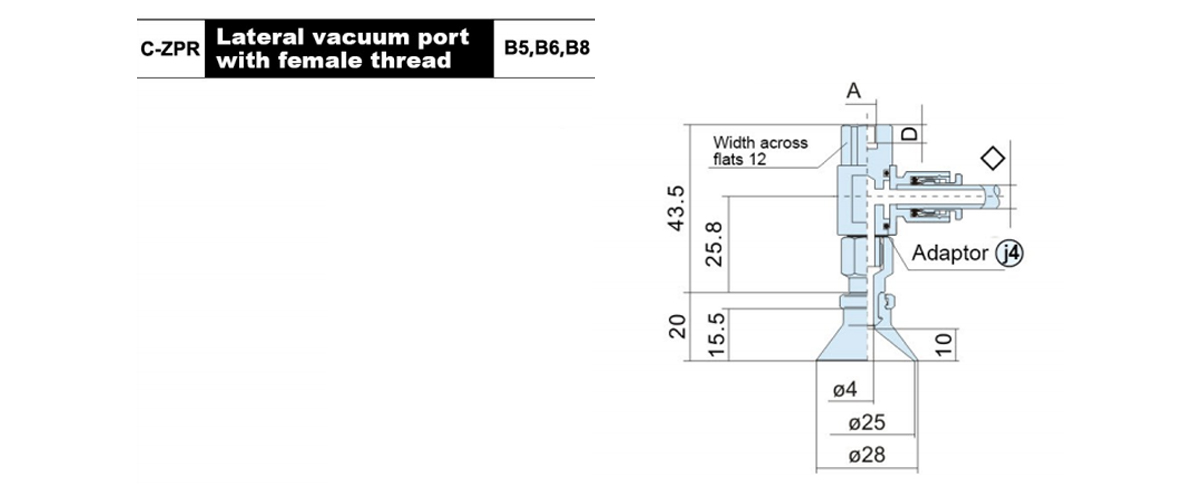

    Model A D Adaptor
    Model
    C-ZPR25D□-◇-B5 M5×0.8 5 ZPR3-◇-B5
    C-ZPR25D□-◇-B6 M6×1.0 6 ZPR3-◇-B6
    C-ZPR25D□-◇-B8 M8×1.25 8 ZPR3-◇-B8
    □Material:NBR(N),Silicone(S)◇Vacuum port connection:0406,08

    Model A B L Adaptor
    Model
    C-ZPY25D□-B5-A6 M6×1.0 8 54 ZPY3-B5-A6
    C-ZPY25D□-B5-A8 M8×1.0 12 44 ZPY3-B5-A8
    □Material:NBR(N),Silicone(S)

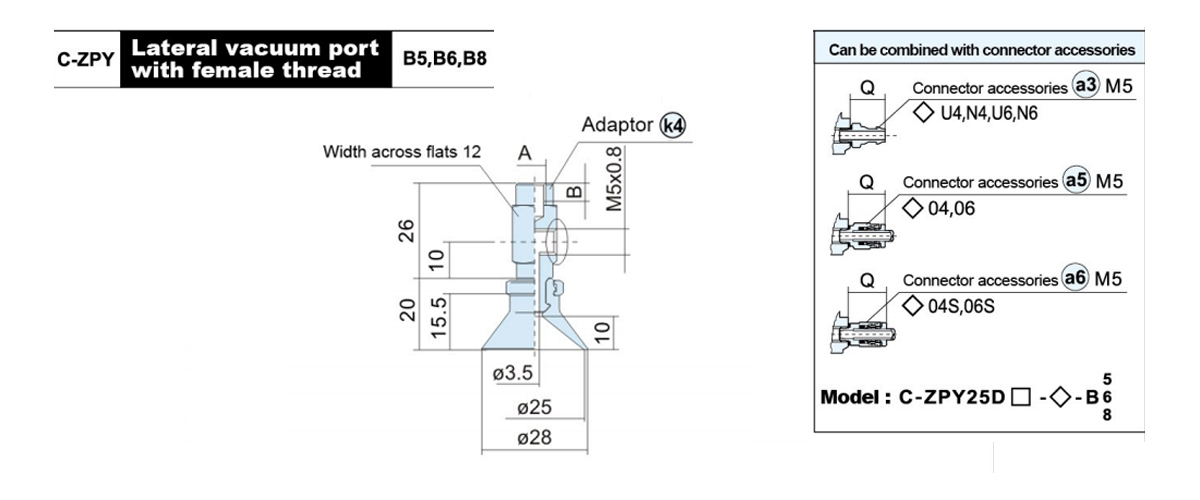

    Model A B Adaptor
    Model
    C-ZPY25D□-B5-B5 M5×0.8 5 ZPY3-B5-B5
    C-ZPY25D□-B5-B6 M6×1.0 6 ZPY3-B5-B6
    C-ZPY25D□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    □ Material:NBR(N),Silicone(S)

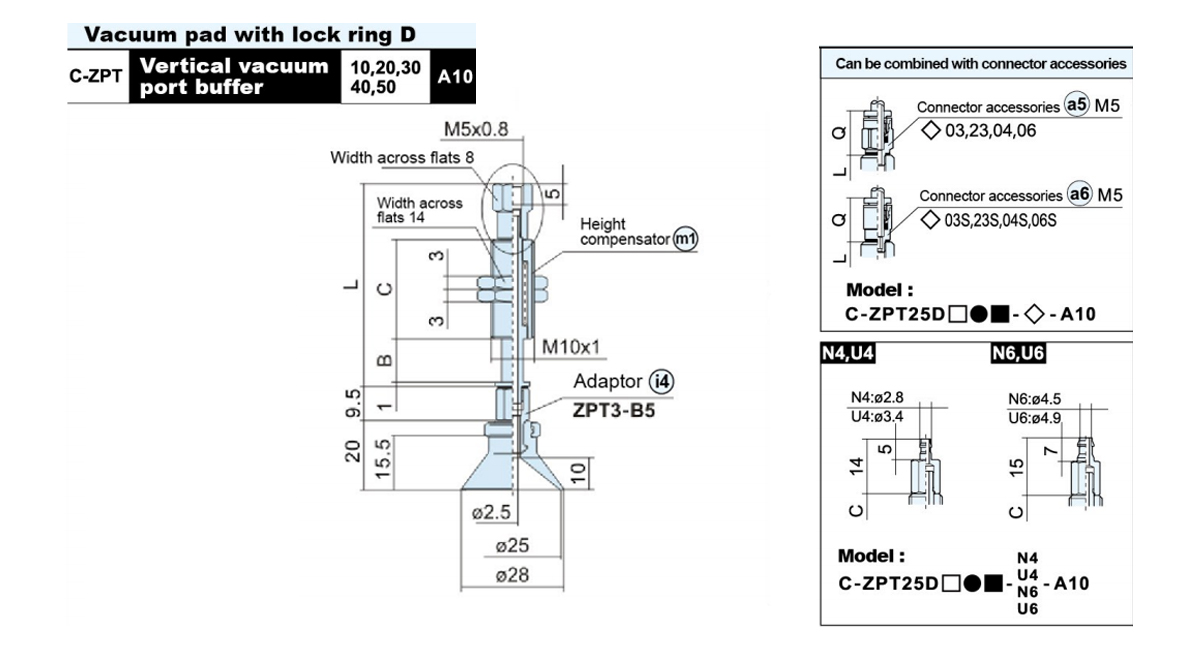

    Model B C L m1 i4
    Bumper Support Model
    C-ZPT25D□●10-B5-A10 10 23 47 ZPT3-●10-B5-A10
    C-ZPT25D□●20-B5-A10 20 51 85 ZPT3-●20-B5-A10
    C-ZPT25D□●30-B5-A10 30 95 ZPT3-●30-B5-A10
    C-ZPT25D□●40-B5-A10 40 77 131 ZPT3-●40-B5-A10
    C-ZPT25D□●50-B5-A10 50 141 ZPT3-●50-B5-A10
    □Material:NBR(N),Silicone(S)
    ■Buffer  stroke(mm):10,20,30,40,50
    ●Height  compensator  type:Rotative(J)
    Unable to rotate(K)

    Model B C L m2 i4
    Bumper Support Model
    C-ZPT25D□●10-B5-A14 10 50 77 ZPT3-●10-B5-A14
    C-ZPT25D□●20-B5-A14 20 81 ZPT3-●20-B5-A14
    C-ZPT25D□●30-B5-A14 30 91 ZPT3-●30-B5-A14
    C-ZPT25D□●50-B5-A14 50 75 136 ZPT3-●50-B5-A14
    C-ZPT25D□●10-B01-A14 10 50 78.5 ZPT3-●10-B01-A14
    C-ZPT25D□●20-B01-A14 20 84 ZPT3-●20-B01-A14
    C-ZPT25D□●30-B01-A14 30 94 ZPT3-●30-B01-A14
    C-ZPT25D□●50-B01-A14 50 75 139 ZPT3-●50-B01-A14
    □Material:NBR(N),Silicone(S)
    ■Buffer   stroke(mm):10,20,30,50
    ● Height compensator type:Rotative(J)
    Unable to rotate(K)

    Model B C L m3 j4
    Bumper Support Model
    C-ZPR25D□●10-◇-A10 10 23 45 ZPR3-●10-◇-A10
    C-ZPR25D□●20-◇-A10 20 51 83 ZPR3-●20-◇-A10
    C-ZPR25D□●30-◇-A10 30 93 ZPR3-●30-◇-A10
    C-ZPR25D□●40-◇-A10 40 77 129 ZPR3-●40-◇-A10
    C-ZPR25D□●50-◇-A10 50 139 ZPR3-●50-◇-A10
    □Material:NBR(N),Silicone(S)     ●Height compensator type:Rotative(J)
    ◇Vacuum portconnection:04,06,08                            Unable to rotate(K)

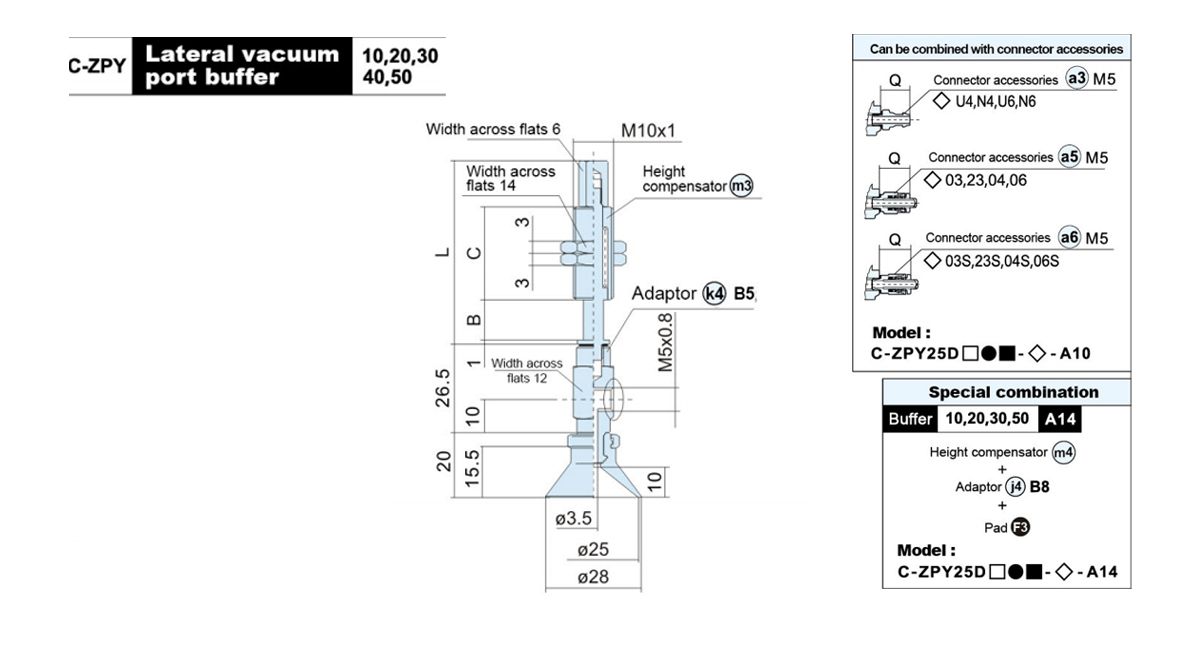

    Model B C L m3 k4 Bumper Support Model
    C-ZPY25D□●10-B5-A10 10 23 45 ZPY3-●10-B5-A10
    C-ZPY25D□●20-B5-A10 20 51 83 ZPY3-●20-B5-A10
    C-ZPY25D□●30-B5-A10 30 93 ZPY3-●30-B5-A10
    C-ZPY25D□●40-B5-A10 40 77 129 ZPY3-●40-B5-A10
    C-ZPY25D□●50-B5-A10 50 139 ZPY3-●50-B5-A10

    □Material:NBR(N),Silicone(S)

    ●Height compensator type:Rotative(J)
    ■ Buffer  stroke(mm):10,20,30,40,50                                                   Unable to rotate(K)

    Model A ØB C L Adaptor
    Model
    C-ZPT40D□-A6 M6×1.0 3.5 8 32 ZPT4-A6
    C-ZPT40D□-A8 M8×1.0 4.5 12 22 ZPT4-A8
    C-ZPT40D□-A01 - - - - ZPT4-A01
    □Material:NBR(N),Silicone(S)

    Model A B C Adaptor
    Model
    C-ZPT40D□-B6 M6×1.0 6 4.5 ZPT4-B6
    C-ZPT40D□-B8 M8×1.25 8 6.8 ZPT4-B8
    C-ZPT40D□-B01 Rc1/8 6.2 ZPT4-B01
    □Material:NBR(N),Silicone(S)

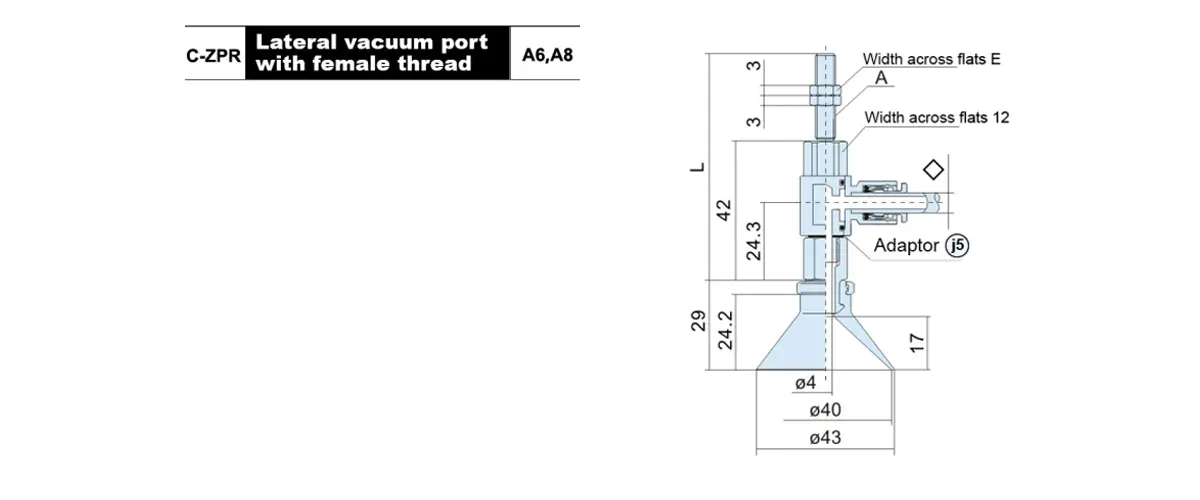

    Model A E L Adaptor
    Model
    C-ZPR40D□-◇-A6 M6×1.0 8 68 ZPR4-◇-A6
    C-ZPR40D□-◇-A8 M8×1.0 12 58 ZPR4-◇-A8
    □Material:NBR(N),Silicone(S)     ◇Vacuum port connection:06,08

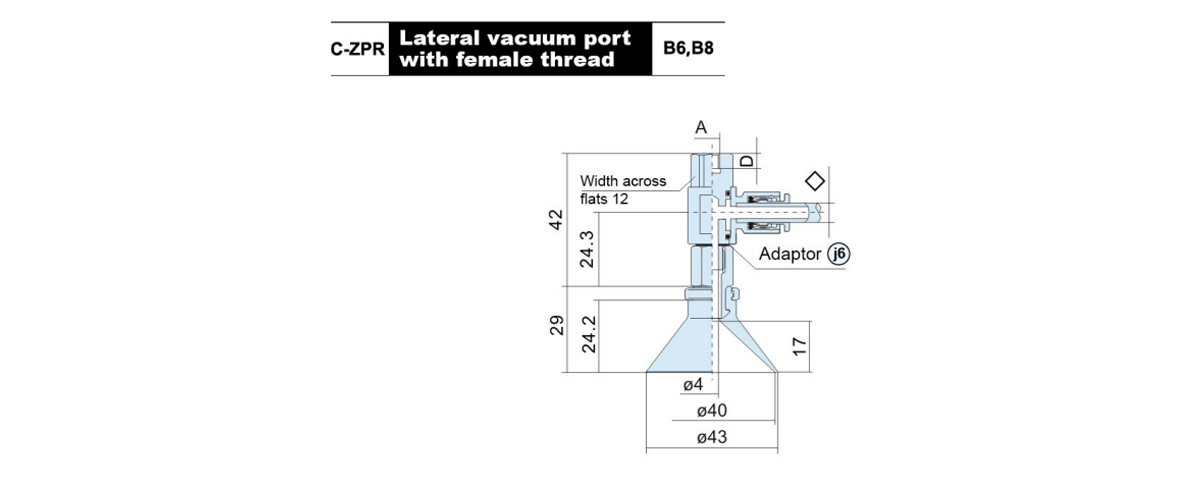

    Model A D Adaptor
    Model
    C-ZPR40D□-◇-B6 M6×1.0 6 ZPR4-◇-B6
    C-ZPR40D□-◇-B8 M8×1.25 8 ZPR4-◇-B8
    □Material:NBR(N),Silicone(S)     ◇Vacuum port connection:06,08

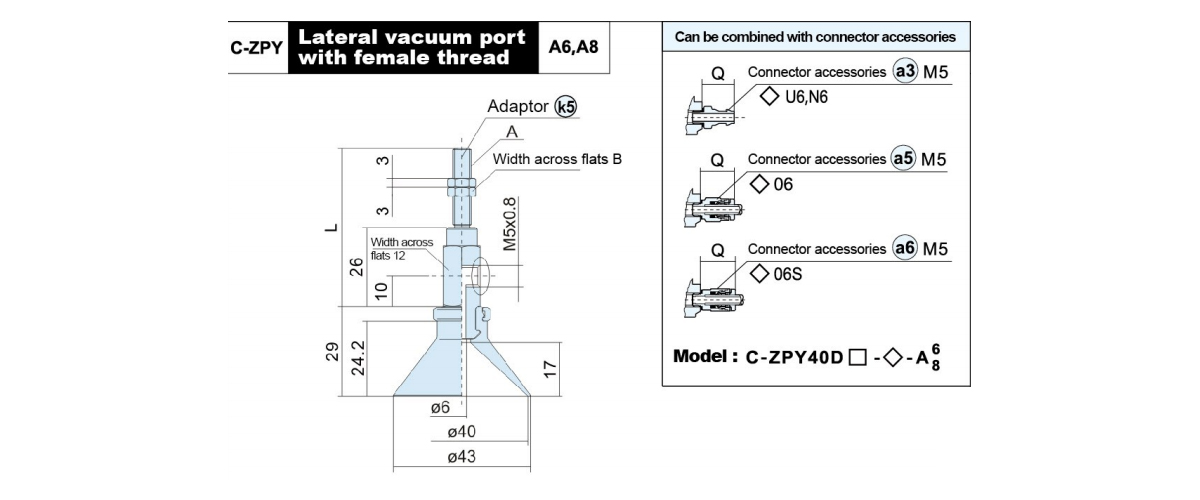

    Model A B L Adaptor
    Model
    C-ZPY40D□-B5-A6 M6×1.0 8 54 ZPY4-B5-A6
    C-ZPY40D□-B5-A8 M8×1.0 12 44 ZPY4-B5-A8
    □Material:NBR(N),Silicone(S)

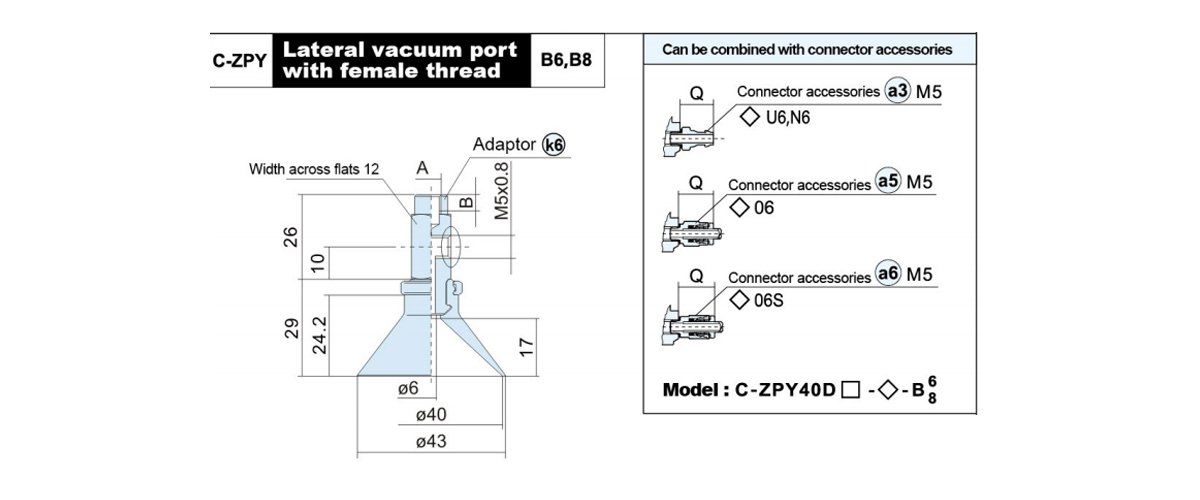

    Model A B Adaptor
    Model
    C-ZPY40D□-B5-B6 M6×1.0 6 ZPY3-B5-B6
    C-ZPY40D□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    □Material:NBR(N),Silicone(S)

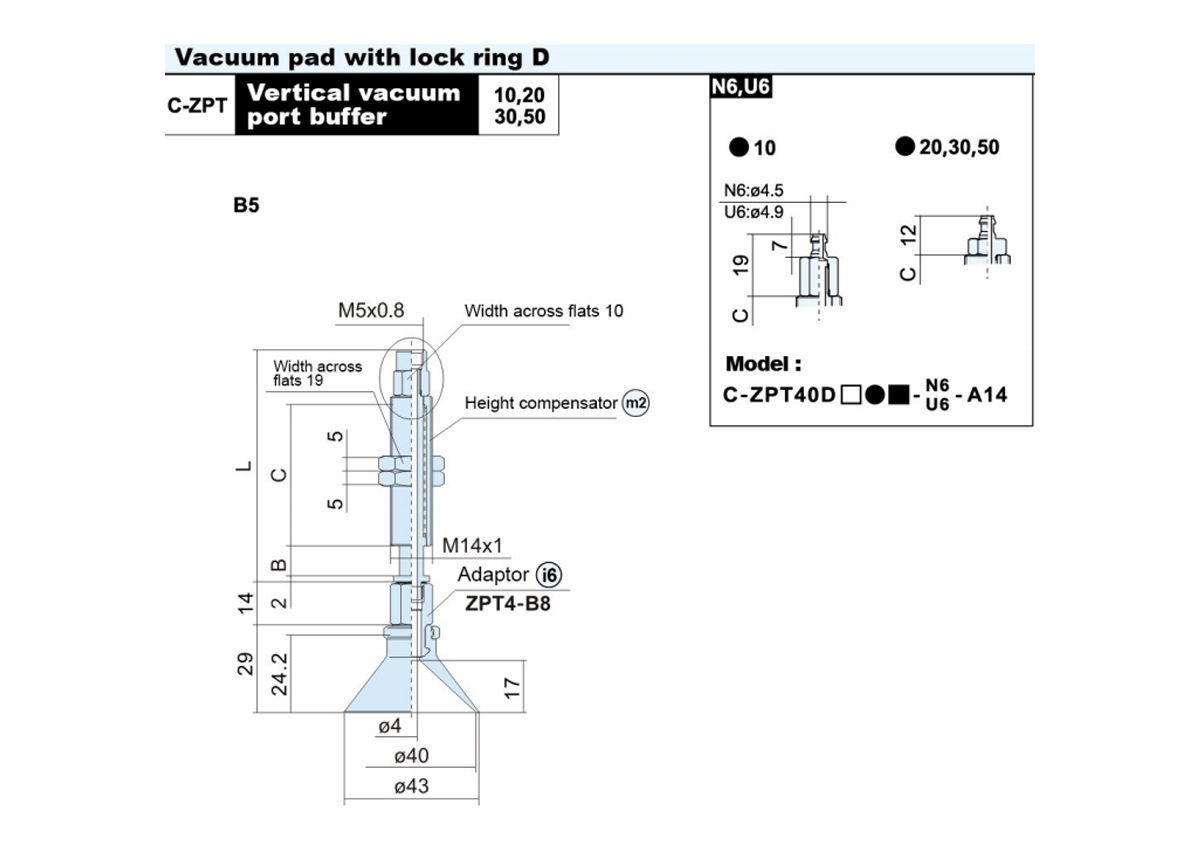

    Model B C L m2 i6
    Bumper Support Model
    C-ZPT40D□●10-B5-A14 10 50 77 ZPT4-●10-B5-A14
    C-ZPT40D□●20-B5-A14 20 81 ZPT4-●20-B5-A14
    C-ZPT40D□●30-B5-A14 30 91 ZPT4-●30-B5-A14
    C-ZPT40D□●50-B5-A14 50 75 136 ZPT4-●50-B5-A14
    □    Material:NBR(N),Silicone(S)
    ● Height compensator type:Rotative(J),Unable to rotate(K)
    ■ Buffer stroke(mm):10,20,30,50

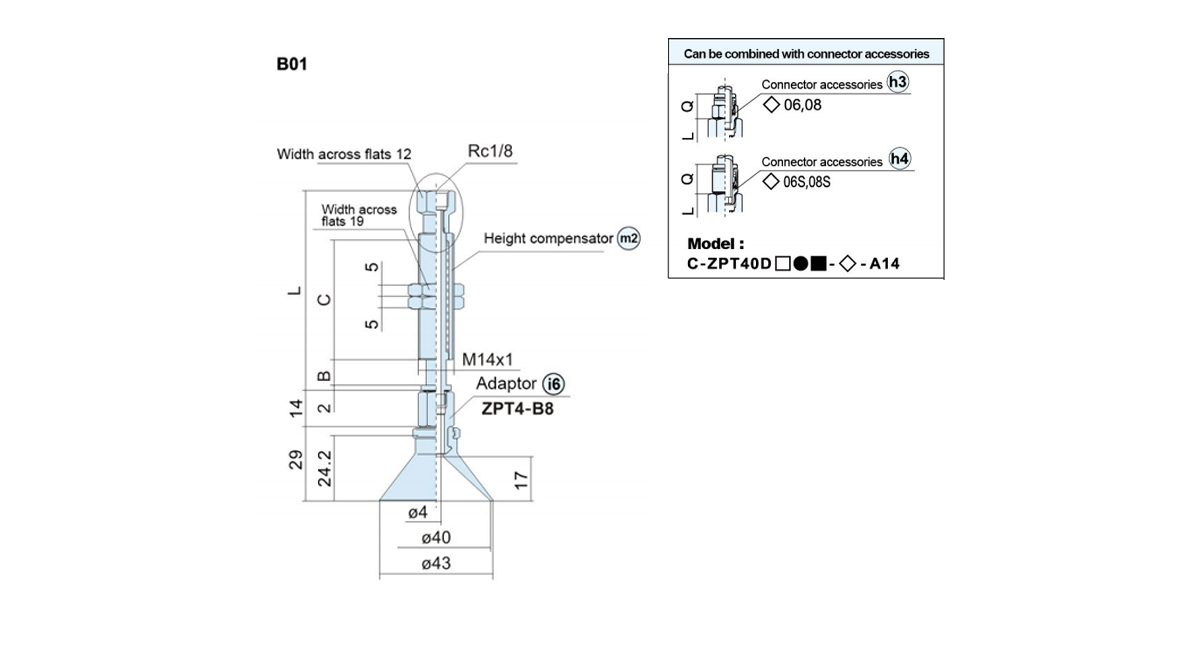

    Model B C L m2 i6
    Bumper Support Model
    C-ZPT40D□●10-B01-A14 10 50 78.5 ZPT4-●10-B01-A14
    C-ZPT40D□●20-B01-A14 20 84 ZPT4-●20-B01-A14
    C-ZPT40D□●30-B01-A14 30 94 ZPT4-●30-B01-A14
    C-ZPT40D□●50-B01-A14 50 75 139 ZPT4-●50-B01-A14
    □    Material:NBR(N),Silicone(S)
    ● Height compensator type:Rotative(J),Unable to rotate(K)
    ■ Buffer stroke(mm):10,20,30,50

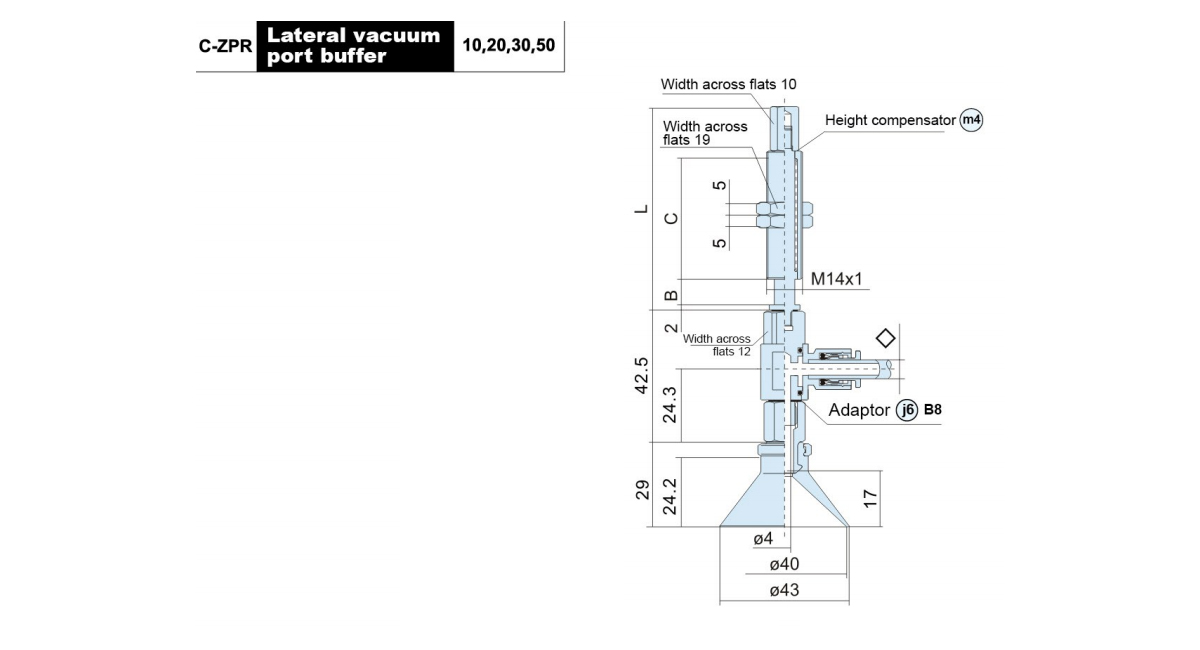

    Model B C L m4 j6
    Bumper Support Model
    C-ZPR40D□●10-◇-A14 10 50 80 ZPR4-●10-◇-A14
    C-ZPR40D□●20-◇-A14 20 77 ZPR4-●20-◇-A14
    C-ZPR40D□●30-◇-A14 30 87 ZPR4-●30-◇-A14
    C-ZPR40D□●50-◇-A14 50 75 132 ZPR4-●50-◇-A14
    □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:06,08
    ● Height compensator type:Rotative(J)
    Unable to rotate(K)

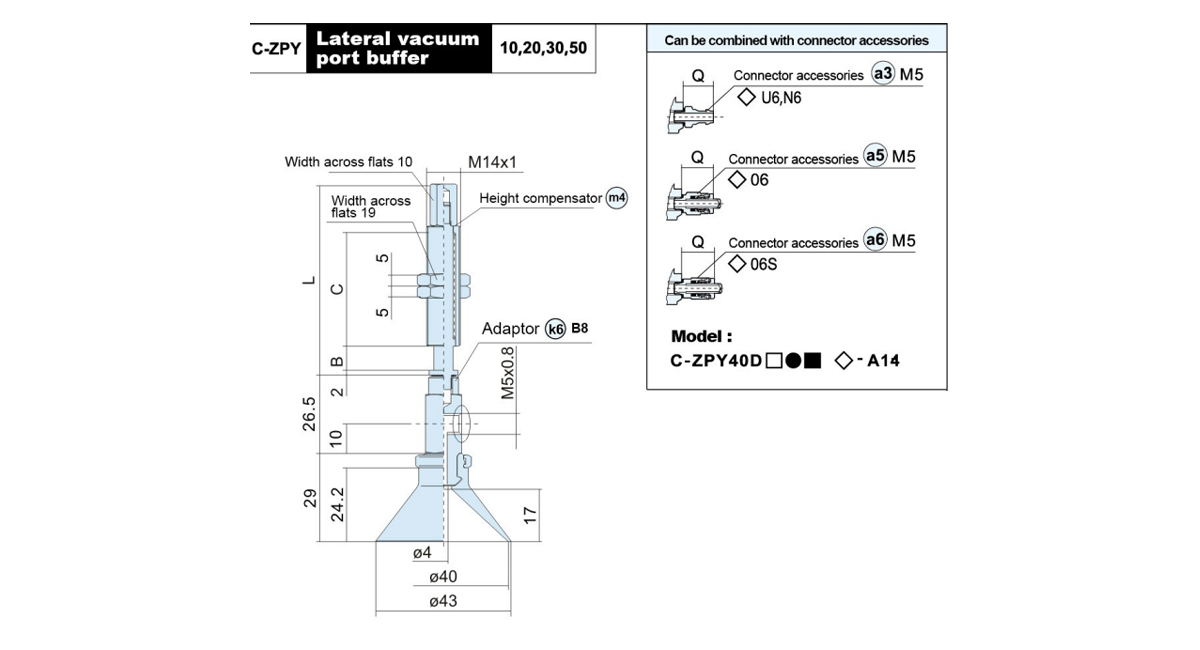

    Model B C L m4 k6
    Bumper Support Model
    C-ZPY40D□●10-◇-A14 10 50 80 ZPY4-●10-◇-A14
    C-ZPY40D□●20-◇-A14 20 77 ZPY4-●20-◇-A14
    C-ZPY40D□●30-◇-A14 30 87 ZPY4-●30-◇-A14
    C-ZPY40D□●50-◇-A14 50 75 132 ZPY4-●50-◇-A14
    □ Material:NBR(N),Silicone(S)
    ■Buffer stroke(mm):10,20,30,40,50
    ● Height compensator type:Rotative(J)
    Unable to rotate(K)

    Model A B C L ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPT○B□-A5 M5×0.8 7 4 26 16 18.5 20 ZPT2-A5
    C-ZPT○B□-A6 M6×1.0 8 3 31 ZPT2-A6
    C-ZPT○B□-A01 - - - ZPT2-A01
    ○Symbol of pad diameter:10,13,16     □ Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPT○B□-B5 M5×0.8 5 16 18.5 20 ZPT2-B5
    C-ZPT○B□-B6 M6×1.0 6 ZPT2-B6
    C-ZPT○B□-B01 - - ZPT2-B01
    ○Symbol of pad diameter:10,13,16     □ Material:NBR(N),Silicone(S)

    Model A D E L ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPR○B□-◇-A5 M5×0.8 4 7 55 16 18.5 20 ZPR2-◇-A5
    C-ZPR○B□-◇-A6 M6×1.0 3 8 60 ZPR2-◇-A6
    ○Symbol of pad diameter:10,13,16  □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

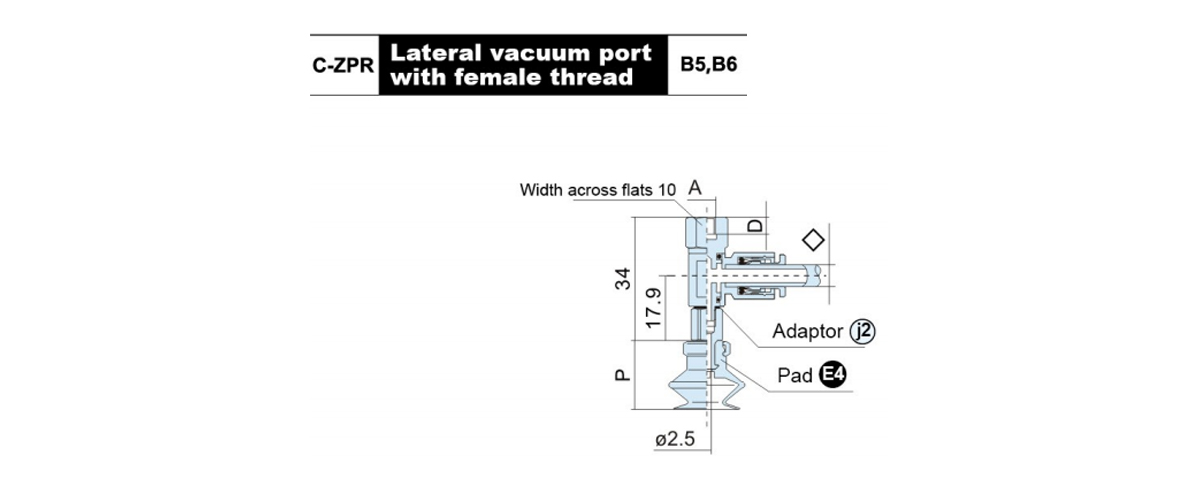

    Model A D ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPR○B□-◇-B5 M5×0.8 5 16 18.5 20 ZPR2-◇-B5
    C-ZPR○B□-◇-B6 M6×1.0 6 ZPR2-◇-B6
    ○Symbol of pad diameter:10,13,16  □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

    Model A B C L ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPY○B□-B5-A5 M5×0.8 7 4 47 16 18.5 20 ZPY2-B5-A5
    C-ZPY○B□-B5-A6 M6×1.0 8 3 52 ZPY2-B5-A6
    ○Symbol of pad diameter:10,13,16 Material:NBR(N),Silicone(S)

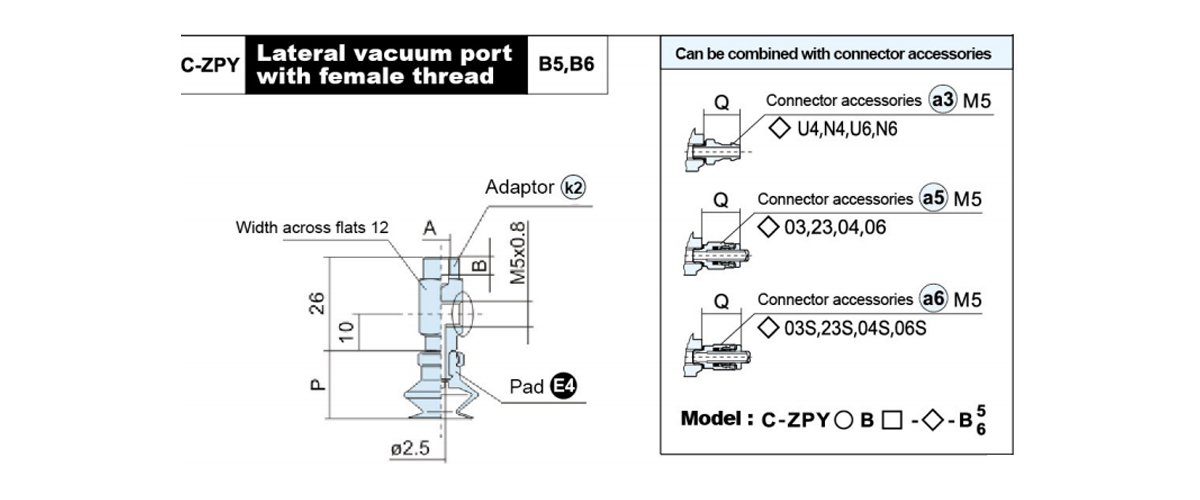

    Model A B ○Pad Diameter P Adaptor
    Model
    10 13 16
    C-ZPY○B□-B5-B5 M5×0.8 5 16 18.5 20 ZPY2-B5-B5
    C-ZPY○B□-B5-B6 M6×1.0 6 ZPY2-B5-B6
    ○Symbol of pad diameter:10,13,16  □ Material:NBR(N),Silicone(S)

    Model B C L ○Pad Diameter  P m1 i2
    Bumper Support Model
    10 13 16
    C-ZPT○ B□ J10-B5-A10 10 23 47 16 18.5 20 ZPT2-J10-B5-A10
    C-ZPT○ B□ J20-B5-A10 20 51 85 ZPT2-J20-B5-A10
    C-ZPT○ B□ J30-B5-A10 30 95 ZPT2-J30-B5-A10
    C-ZPT○ B□J40-B5-A10 40 77 131 ZPT2-J40-B5-A10
    C-ZPT○ B□J50-B5-A10 50 141 ZPT3-J50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □    Material:NBR(N),Silicone(S)
    ■  Buffer  stroke(mm):10,20,30,40,50
    ●  Height  compensator type:Rotative(J) Unable to rotate(K)

    Model B C L ○Pad Diameter P m1 i2
    Bumper Support Model
    10 13 16
    C-ZPT○ B□K10-B5-A10 10 23 47 16 18.5 20 ZPT2-K10-B5-A10
    C-ZPT○ B□K20-B5-A10 20 51 85 ZPT2-K20-B5-A10
    C-ZPT○ B□K30-B5-A10 30 95 ZPT2-K30-B5-A10
    C-ZPT○ B□K40-B5-A10 40 77 131 ZPT2-K40-B5-A10
    C-ZPT○ B□K50-B5-A10 50 141 ZPT3-K50-B5-A10
    ○ Symbol of pad diameter:10,13,16
    □    Material:NBR(N),Silicone(S)
    ■  Buffer  stroke(mm):10,20,30,40,50
    ●  Height  compensator type:Rotative(J) Unable to rotate(K)

    Model B C L ○ Pad Diameter P m3 j2
    Bumper Support Model
    10 13 16
    C-ZPR○ B□●10-◇-A10 10 23 45 16 18.5 20 ZPR2-●10-◇-A10
    C-ZPR○ B□●20-◇-A10 20 51 83 ZPR2-●20-◇-A10
    C-ZPR○ B□●30-◇-A10 30 93 ZPR2-●30-◇-A10
    C-ZPR○ B□●40-◇-A10 40 77 129 ZPR2-●40-◇-A10
    C-ZPR○ B□●50-◇-A10 50 139 ZPR2-●50-◇-A10
    ○  Symbol of pad diameter:10,13,16
    ◇Vacuum port connection:04,06
    □ Material:NBR(N),Silicone(S)
    ● Height compensator type:Rotative(J)
    Unable to rotate(K)

    Model B C L ○ Pad Diameter P m3 j2
    Bumper Support Model
    10 13 16
    C-ZPY○B□●10-B5-A10 10 23 45 16 18.5 20 ZPY2-●10-B5-A10
    C-ZPY○B□●20-B5-A10 20 51 83 ZPY2-●20-B5-A10
    C-ZPY○B□●30-B5-A10 30 93 ZPY2-●30-B5-A10
    C-ZPY○B□●40-B5-A10 40 77 129 ZPY2-●40-B5-A10
    C-ZPY○B□●50-B5-A10 50 139 ZPY2-●50-B5-A10
    ○  Symbol  of  pad  diameter:10,13,16    □       Material:NBR(N),Silicone(S)
    ◇Vacuum   port   connection:04,06               Buffer   stroke(mm):10,20,30,40,50

    Model A B C D L ○Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPT○B□-A6 M6×1.0 5 8 8 31 23.5 24 29 ZPT3-A6
    C-ZPT○B□-A8 M8×1.0 10 12 12 26 ZPT3-A8
    C-ZPT○B□-A01 - - - - - ZPT3-A01
    ○ Symbol of pad diameter:20,25,32     □ Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPT○B□-B5 M5×0.8 5 23.5 24 29 ZPT3-B5
    C-ZPT○B□-B6 M6×1.0 6 ZPT3-B6
    C-ZPT○B□-B6 M8×1.25 8 ZPT3-B8
    C-ZPT○B□-B01 Rc1/8 6.2 ZPT3-B01
    ○ Symbol of pad diameter:20,25,32     □ Material:NBR(N),Silicone(S)

    Model A E L ○Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPR○B□-◇-A6 M6×1.0 8 69.5 23.5 24 29 ZPR3-◇-A6
    C-ZPR○B□-◇-A8 M8×1.0 12 59.5 ZPR3-◇-A8
    ○ Symbol of pad diameter:20,25,32   □  Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06,08

    Model A D ○Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPR○B□-◇-B5 M5×0.8 5 23.5 24 29 ZPR3-◇-B5
    C-ZPR○B□-◇-B6 M6×1.0 6 ZPR3-◇-B6
    C-ZPR○B□-◇-B8 M8×1.25 8 ZPR3-◇-B8
    ○  Symbol  of  pad  diameter:20,25,32       □ Material:NBR(N),Silicone(S)
    ◇ Vacuum  port  connection:04.06.08

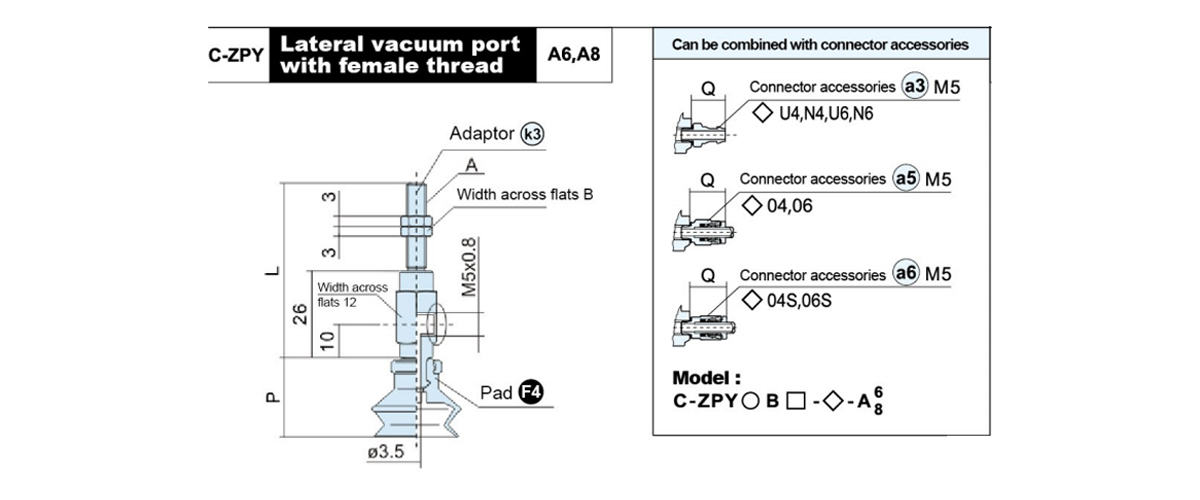

    Model A B L ○Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPY○B□-B5-A6 M6×1.0 8 54 23.5 24 29 ZPY3-B5-A6
    C-ZPY○B□-B5-A8 M8×1.0 12 44 ZPY3-B5-A8
    ○ Symbol of pad diameter:20,25,32     □ Material:NBR(N),Silicone(S)

    Model A B ○ Pad Diameter P Adaptor
    Model
    20 25 32
    C-ZPY○B□-B5-B5 M5×0.8 5 23.5 24 29 ZPY3-B5-B5
    C-ZPY○B□-B5-B6 M6×1.0 6 ZPY3-B5-B6
    C-ZPY○B□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    ○ Symbol of pad diameter:20,25,32     □ Material:NBR(N),Silicone(S)

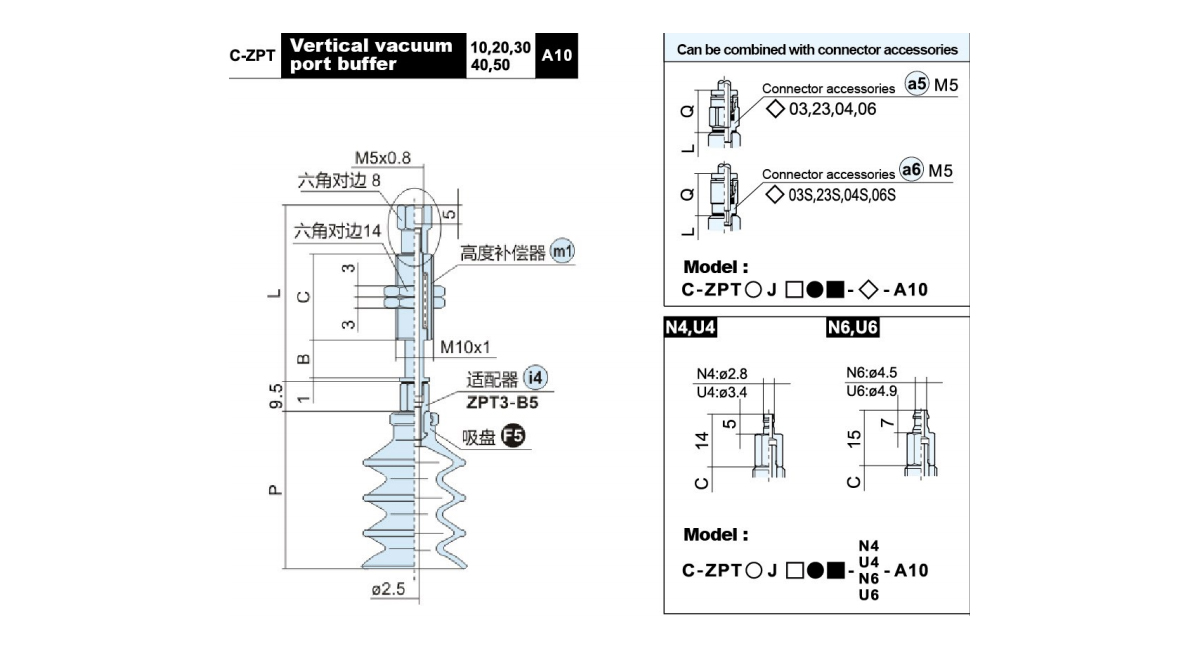

    Model B C L ○ Pad Diameter P m1 i4
    Bumper Support Model
    20 25 32
    C-ZPT○B□●10-B5-A10 10 23 47 23.5 24 29 ZPT3-●10-B5-A10
    C-ZPT○B□●20-B5-A10 20 51 85 ZPT3-●20-B5-A10
    C-ZPT○B□●30-B5-A10 30 95 ZPT3-●30-B5-A10
    C-ZPT○B□●40-B5-A10 40 77 131 ZPT3-●40-B5-A10
    C-ZPT○B□●50-B5-A10 50 141 ZPT3-●50-B5-A10
    ○ Symbol of pad diameter:20,25,32
    ■  Buffer  stroke(mm):10,20,30,40,50
    □     Material:NBR(N),Silicone(S)
    ●Height  compensator  type:Rotative(J)
    Unable to rotate(K)

    Model B C L ○Pad diameter P m2 i4
    Bumper Support Model
    20 25 32
    C-ZPT○B□●10-B5-A14 10 50 77 23.5 24 29 ZPT3-●10-B5-A14
    C-ZPT○B□●20-B5-A14 20 81 ZPT3-●20-B5-A14
    C-ZPT○B□●30-B5-A14 30 91 ZPT3-●30-B5-A14
    C-ZPT○B□●50-B5-A14 50 75 136 ZPT3-●50-B5-A14
    C-ZPT○B□●10-B01-A14 10 50 78.5 ZPT3-●10-B01-A14
    C-ZPT○B□●20-B01-A14 20 84 ZPT3-●20-B01-A14
    C-ZPT○B□●30-B01-A14 30 94 ZPT3-●30-B01-A14
    C-ZPT○B□●50-B01-A14 50 75 139 ZPT3-●50-B01-A14
    ○ Symbol of pad diameter:20,25,32
    ■ Buffer stroke(mm):10,20,30,40,50
    □        Material:NBR(N),Silicone(S)
    ● Height compensator type:Rotative(J)
    Unable to rotate(K)

    Model B C L ○Pad diameter m3 j4
    Bumper Support Model
    20 25 32
    C-ZPR○B□O10-◇-A10 10 23 45 23.5 24 29 ZPR3-●10-◇-A10
    C-ZPR○B□● 20-◇-A10 20 51 83 ZPR3-●20-◇-A10
    C-ZPR○B□●30-◇-A10 30 93 ZPR3-●30-◇-A10
    C-ZPR○B□● 40-◇-A10 40 77 129 ZPR3-●40-◇-A10
    C-ZPR○B□● 50-◇-A10 50 139 ZPR3-●50-◇-A10
    ○ Symbol of pad diameter:20,25,32
    ◇ Vacuum
    port connection:04,06,08
    □ Material:NBR(N),Silicone(S)
    ●Height compensator type:Rotative(J)  Unable to rotate(K)

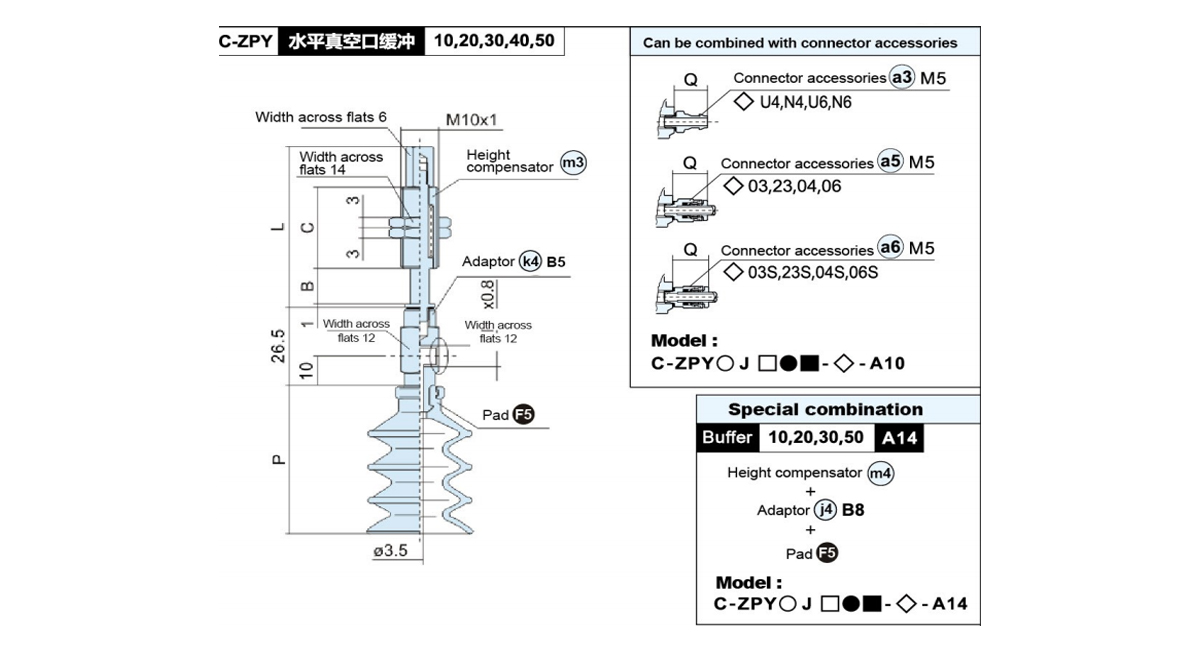

    Model B C L ○ Pad Diameter P m3 k4
    Bumper Support Model
    20 25 32
    C-ZPY○B□●10-B5-A10 10 23 45 23.5 24 29 ZPY3-●10-B5-A10
    C-ZPY○B□●20-B5-A10 20 51 83 ZPY3-●20-B5-A10
    C-ZPY○B□●30-B5-A10 30 93 ZPY3-●30-B5-A10
    C-ZPY○B□●40-B5-A10 40 77 129 ZPY3-●40-B5-A10
    C-ZPY○B□●50-B5-A10 50 139 ZPY3-●50-B5-A10
    ○  Symbol  of  pad  diameter:20,25,32
    □  Material:NBR(N),Silicone(S)
    ■  Buffer   stroke(mm):10,20,30,40,50    ●Height   compensator   type:Rotative(J) Unable to rotate(K)

    Model A ØB C L ○Pad Diameter P Adaptor
    Model
    40 50
    C-ZPT○B□-A6 M6×1.0 3.5 8 32 34 38 ZPT4-A6
    C-ZPT○B□-A8 M8×1.0 4.5 12 22 ZPT4-A8
    C-ZPT○B□-A01 - - - ZPT4-A01
    ○ Symbol of pad diameter:40,50       □ Material:NBR(N),Silicone(S)

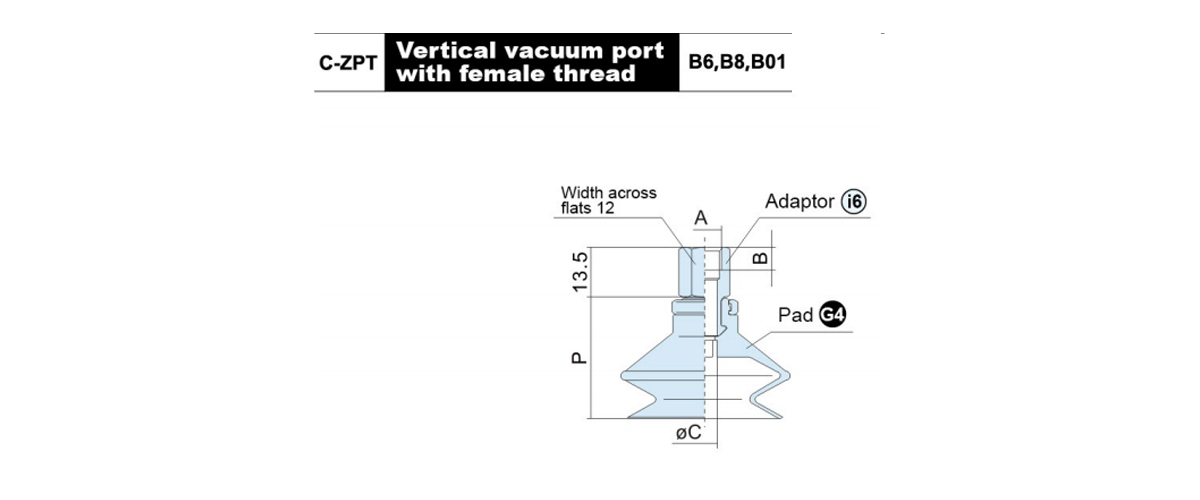

    Model A B oC ○Pad Diameter P Adaptor
    Model
    40 50
    C-ZPT○OB□-B6 M6×1.0 6 4.5 34 38 ZPT4-B6
    C-ZPT○B□-B8 M8×1.25 8 6.8 ZPT4-B8
    C-ZPT○B□-B01 Rc1/8 6.2 ZPT4-B01
    ○ Symbol of pad diameter:40,50      □ Material:NBR(N),Silicone(S)

    Model A E L ○Pad Diameter P Adaptor
    Model
    40 50
    C-ZPR○B□-◇ -A6 M6×1.0 8 68 34 38 ZPR4-◇-A6
    C-ZPR○B□-◇-A8 M8×1.0 12 58 ZPR4-◇-A8
    ○ Symbol of pad diameter:40,50      □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:06,08

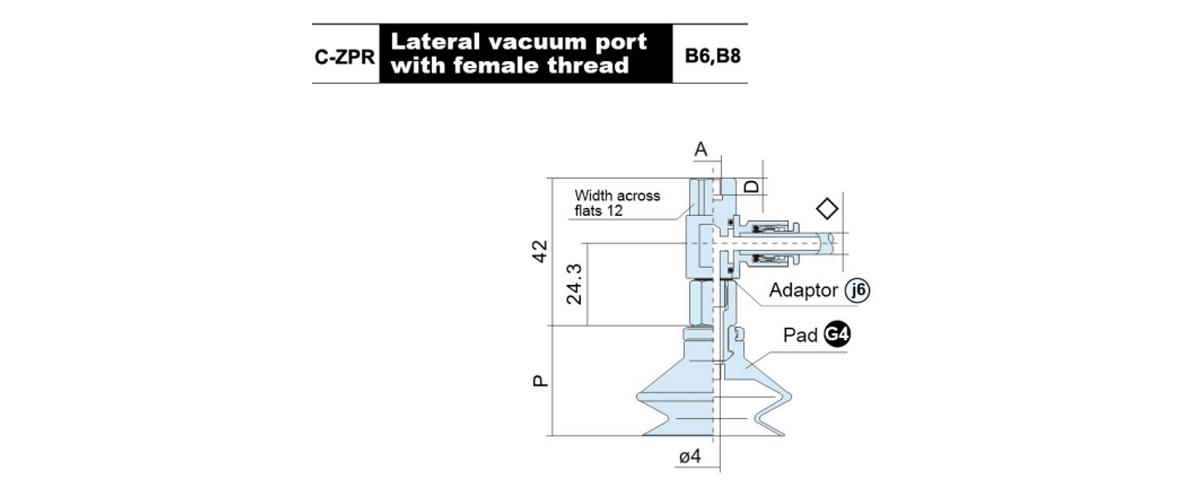

    Model A D ○Pad Diameter P Adaptor
    Model
    40 50
    C-ZPR○B□-◇-B6 M6×1.0 6 34 38 ZPR4-◇-B6
    C-ZPR○B□-◇-B8 M8×1.25 8 ZPR4-◇-B8
    ○ Symbol of pad dameter:40,50       □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:06,08

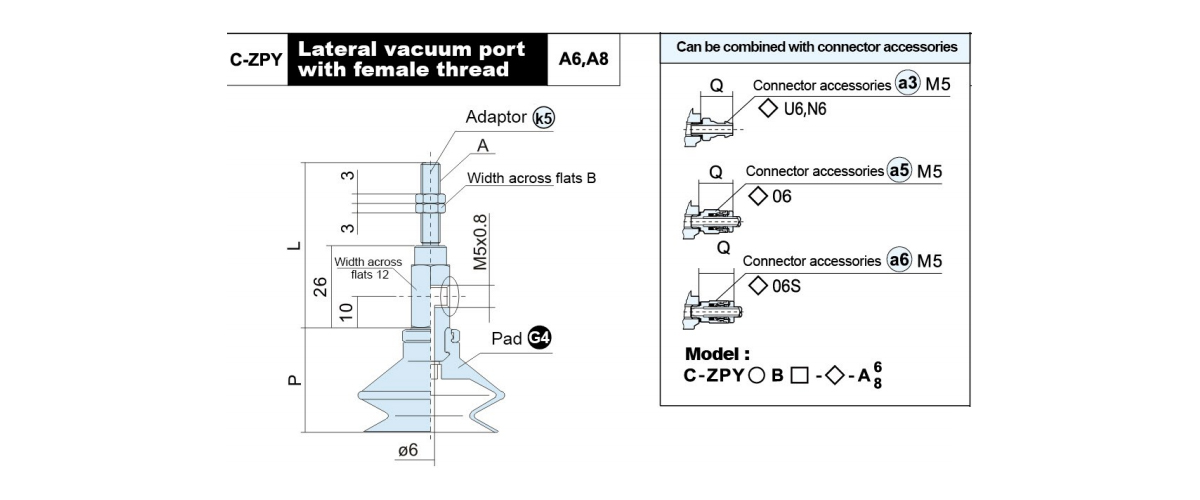

    Model A B L ○Pad Diameter P Adaptor
    Model
    40 50
    C-ZPY○B□-B5-A6 M6×1.0 8 54 34 38 ZPY4-B5-A6
    C-ZPY○B□-B5-A8 M8×1.0 12 44 ZPY4-B5-A8
    ○ Symbol of pad diameter:40,50      □ Material:NBR(N),Silicone(S)

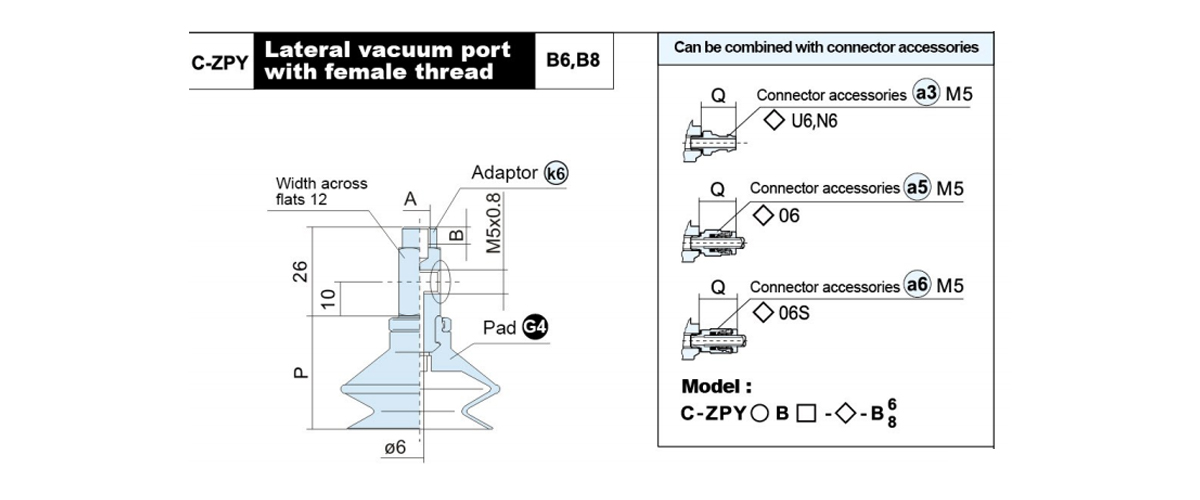

    Model A B ○Pad Diameter  P Adaptor
    Model
    40 50
    C-ZPY○B□-B5-B6 M6×1.0 6 34 38 ZPY3-B5-B6
    C-ZPY○B□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    ○ Symbol of pad diameter:40,50      □ Material:NBR(N),Silicone(S)

    Model B C L ○ Pad Diameter P m2 i6
    Bumper Support Model
    40 50
    C-ZPT○B□●10-B5-A14 10 50 77 34 38 ZPT4-●10-B5-A14
    C-ZPT○B□●20-B5-A14 20 81 ZPT4-●20-B5-A14
    C-ZPT○B□●30-B5-A14 30 91 ZPT4-●30-B5-A14
    C-ZPT○B□●50-B5-A14 50 75 136 ZPT4-●50-B5-A14
    ○ Symbol of pad diameter:40,50
    □ Material:NBR(N),Silicone(S)
    ■ Buffer stroke(mm):10,20,30,50
    ●Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○Pad Diameter P m2 i6
    Bumper Support Model
    40 50
    C-ZPT○B□●10-B01-A14 10 50 78.5 34 38 ZPT4-●10-B01-A14
    C-ZPT○B□●20-B01-A14 20 84 ZPT4-●20-B01-A14
    C-ZPT○B□●30-B01-A14 30 94 ZPT4-●30-B01-A14
    C-ZPT○B□●50-B01-A14 50 75 139 ZPT4-●50-B01-A14
    ○ Symbol of pad diameter:40,50
    □ Material:NBR(N),Silicone(S)
    ■ Buffer stroke(mm):10,20,30,50
    ●Height compensator type:Rotative(J),Unable to rotate(K)

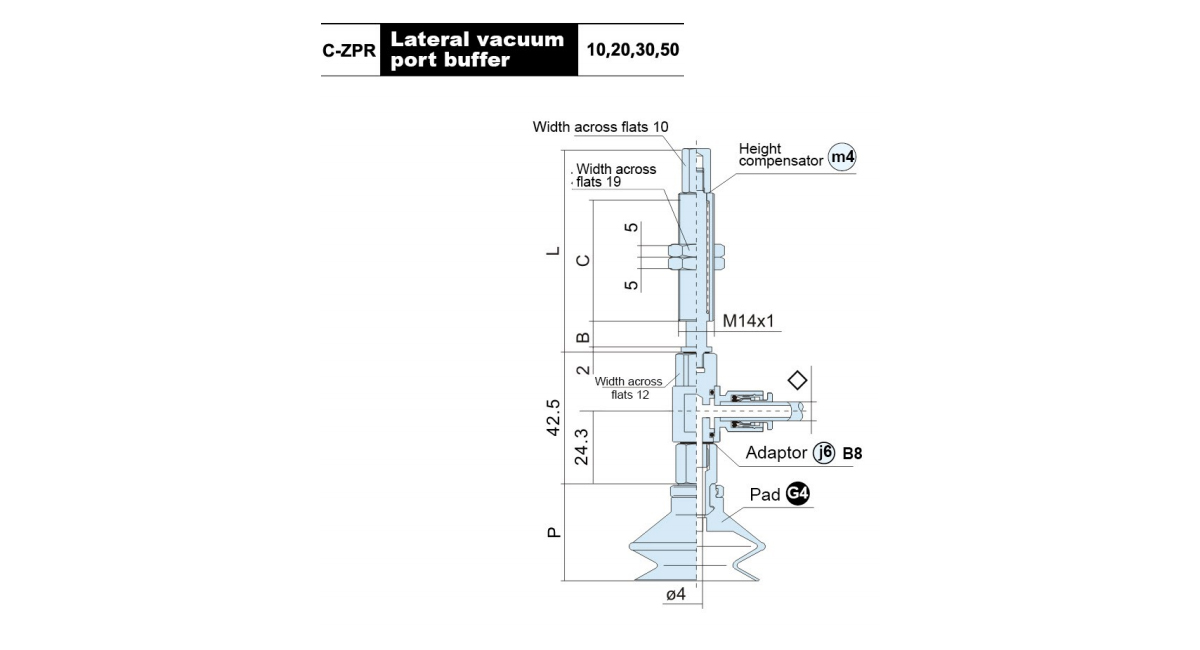

    Model B C L ○Pad Diameter P m4 j6
    Bumper Support Model
    40 50
    C-ZPR○B□●10-◇-A14 10 50 80 34 38 ZPR4-●10-◇-A14
    C-ZPR○B□●20-◇-A14 20 77 ZPR4-●20-◇-A14
    C-ZPR○B□●30-◇-A14 30 87 ZPR4-●30-◇-A14
    C-ZPR○B□●50-◇-A14 50 75 132 ZPR4-●50-◇-A14
    ○ Symbol of pad diameter:40,50
    ◇Vacuum port connection:06,08
    □ Material:NBR(N),Silicone(S)
    ●Height  compensator  type:Rotative(J) Unable to rotate(K)

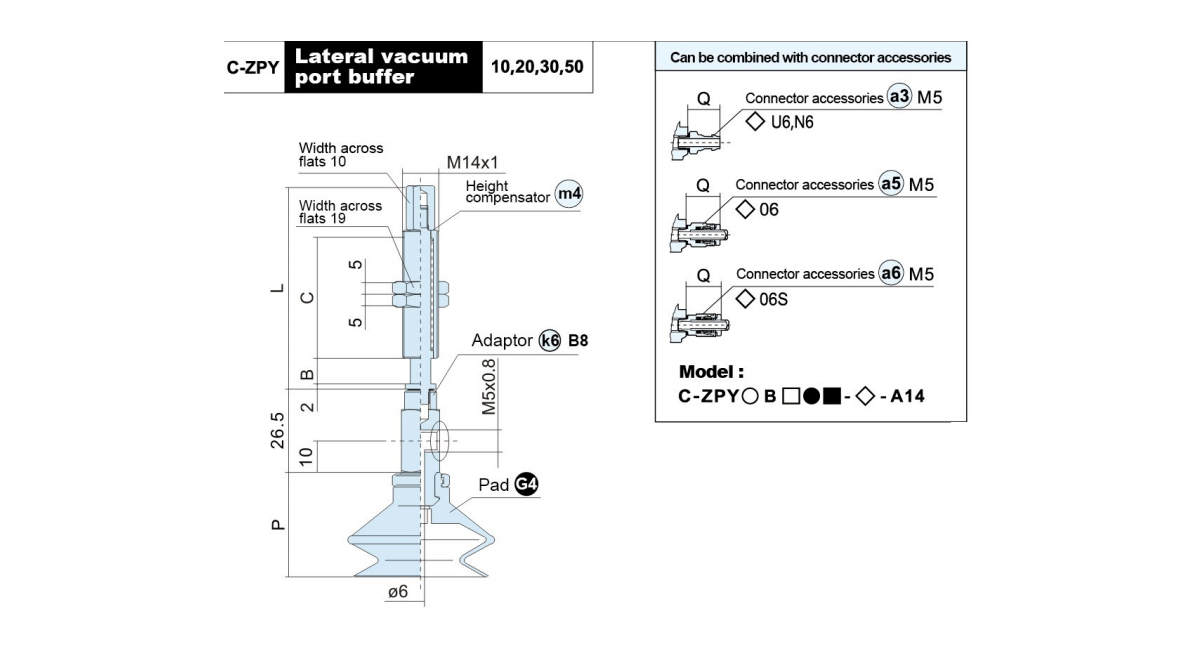

    Model B C L ○Pad Diameter P m4 k6
    Bumper Support Model
    40 50
    C-ZPY○B□●10-◇-A14 10 50 80 34 38 ZPY4-●10-◇-A14
    C-ZPY○B□●20-◇-A14 20 77 ZPY4-●20-◇-A14
    C-ZPY○B□●30-◇-A14 30 87 ZPY4-●30-◇-A14
    C-ZPY○B□●50-◇-A14 50 75 132 ZPY4-●50-◇-A14
    ○  Symbo  of  pad  diameter:40,50
    □  Material:NBR(N),Silicone(S)
    ■  Buffer stroke(mm):10,20,30,50
    ●Height compensator type:Rotative(J) Unable to rotate(K)

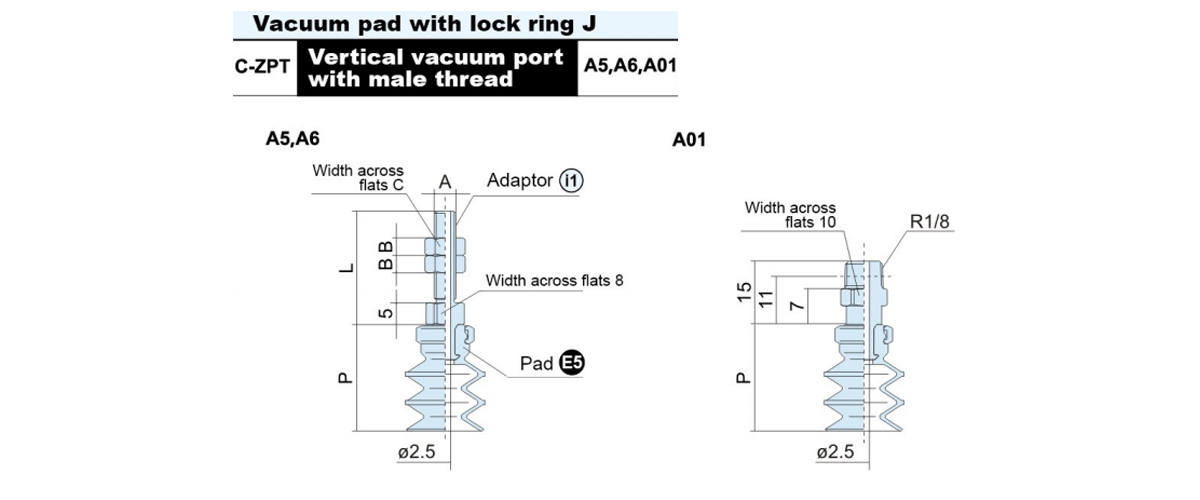

    Model A B C L ○ Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPT○J□-A5 M5×0.8 7 4 26 18 24 24 ZPT2-A5
    C-ZPT○J□-A6 M6×1.0 8 3 31 ZPT2-A6
    C-ZPT○J□-A01 - - - - ZPT2-A01
    ○ Symbol of pad diameter:09,14,16       □ Material:NBR(N),Silicone(S)

    Model A B ○Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPT○J□-B5 M5×0.8 5 18 24 24 ZPT2-B5
    C-ZPT○J□-B6 M6×1.0 6 ZPT2-B6
    C-ZPT○J□-B01 - - ZPT2-B01
    ○ Symbol of pad diameter:09,14,16         □ Material:NBR(N),Silicone(S)

    Model A D E L O Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPR○J□-◇-A5 M5×0.8 4 7 55 18 24 24 ZPR2-◇-A5
    C-ZPR○J□-◇-A6 M6×1.0 3 8 60 ZPR2-◇-A6
    ○ Symbol of pad diameter:09,14,16   □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

    Model A D ○Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPR○J□-◇-B5 M5×0.8 5 18 24 24 ZPR2-◇-B5
    C-ZPR○J□-◇-B6 M6×1.0 6 ZPR2-◇-B6
    ○ Symbol of pad diameter:09,14,16   □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06

    Model A B C L ○ Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPY○J□-B5-A5 M5×0.8 7 4 47 18 24 24 ZPY2-B5-A5
    C-ZPY○J□-B5-A6 M6×1.0 8 3 52 ZPY2-B5-A6
    ○ Symbol of pad diameter:09,14,16    □ Material:NBR(N),Silicone(S)

    Model A B ○ Pad Diameter P Adaptor
    Model
    09 14 16
    C-ZPY○J□-B5-B5 M5×0.8 5 18 24 24 ZPY2-B5-B5
    C-ZPY○J□-B5-B6 M6×1.0 6 ZPY2-B5-B6
    ○ Symbol of pad diameter:09,14,16    □ Material:NBR(N),Silicone(S)

    Model B C L ○Pad Diameter P m1 i2
    Bumper Support Model
    09 14 16
    C-ZPT○J□J10-B5-A10 10 23 47 18 24 24 ZPT2-J10-B5-A10
    C-ZPT○J□J20-B5-A10 20 51 85 ZPT2-J20-B5-A10
    C-ZPT○J□J30-B5-A10 30 95 ZPT2-J30-B5-A10
    C-ZPT○J□J40-B5-A10 40 77 131 ZPT2-J40-B5-A10
    C-ZPT○J□J50-B5-A10 50 141 ZPT3-J50-B5-A10
    ○ Symbol of pad diameter:09,14,16
    □  Material:NBR(N),Slicone(S)
    ■  Buffer stroke(mm):10,20,30,40,50
    ●  Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○ Pad Diameter P m1 i2
    Bumper Support Model
    09 14 16
    C-ZPT○J□K10-B5-A10 10 23 47 18 24 24 ZPT2-K10-B5-A10
    C-ZPT○J□K20-B5-A10 20 51 85 ZPT2-K20-B5-A10
    C-ZPT○J□K30-B5-A10 30 95 ZPT2-K30-B5-A10
    C-ZPT○J□K40-B5-A10 40 77 131 ZPT2-K40-B5-A10
    C-ZPT○J□K50-B5-A10 50 141 ZPT3-K50-B5-A10
    ○ Symbol of pad diameter:09,14,16
    □  Material:NBR(N),Slicone(S)
    ■  Buffer stroke(mm):10,20,30,40,50
    ●  Height compensator type:Rotative(J),Unable to rotate(K)

    Model B C L ○ Pad Diameter P m3 j2
    Bumper Support Model
    09 14 16
    C-ZPR○J□●10-◇-A10 10 23 45 18 24 24 ZPR2-●10-◇-A10
    C-ZPR○J□●20-◇-A10 20 51 83 ZPR2-●20-◇-A10
    C-ZPR○J□●30-◇-A10 30 93 ZPR2-●30-◇-A10
    C-ZPR○J□●40-◇-A10 40 77 129 ZPR2-●40-◇-A10
    C-ZPR○J□●50-◇-A10 50 139 ZPR2-●50-◇-A10
    ○ Symbol of pad diameter:09,14,16
    □ Material:NBR(N),Silicone(S)
    ◇Vacuum port connection:04,06
    ● Height compensator type:Rotative(J)   Unable to rotate(K)

    Model B C L ○ Pad Diameter P m3 j2
    Bumper Support Model
    09 14 16
    C-ZPY○J□●10-B5-A10 10 23 45 18 24 40 ZPY2-●10-B5-A10
    C-ZPY○J□●20-B5-A10 20 51 83 ZPY2-●20-B5-A10
    C-ZPY○J□●30-B5-A10 30 93 ZPY2-●30-B5-A10
    C-ZPY○J□●40-B5-A10 40 77 129 ZPY2-●40-B5-A10
    C-ZPY○J□●50-B5-A10 50 139 ZPY2-●50-B5-A10
    ○  Symbol  of  pad  diameter:09,14,16
    ◇Vacuum   port   connection:04,06
    □  Material:NBR(N),Silicone(S)
    ■   Buffer   stroke(mm):10,20,30,40,50

    Model A B C D L ○Pad Diameter P Adaptor
    Model
    25 30
    C-ZPT○J□-A6 M6×1.0 5 8 8 31 42.5 44.5 ZPT3-A6
    C-ZPT○J□-A8 M8×1.0 10 12 12 26 ZPT3-A8
    C-ZPT○J□-A01 - - - - - ZPT3-A01
    ○ Symbol of pad diameter:25,30       □ Material:NBR(N),Silicone(S)

    Model A B ○ Pad Diameter P Adaptor
    Model
    25 30
    C-ZPT○J□-B5 M5×0.8 5 42.5 44.5 ZPT3-B5
    C-ZPT○J□-B6 M6×1.0 6 ZPT3-B6
    C-ZPT○J□-B6 M8×1.25 8 ZPT3-B8
    C-ZPT○J□-B01 Rc1/8 6.2 ZPT3-B01
    ○Symbol of pad diameter:25,30             □ Material:NBR(N),Silicone(S)

    Model A E L ○.Pad Diameter P Adaptor
    Model
    25 30
    C-ZPR○J□-◇-A6 M6×1.0 8 69.5 42.5 44.5 ZPR3-◇-A6
    C-ZPR○J□-◇-A8 M8×1.0 12 59.5 ZPR3-◇-A8
    ○Symbol of pad diameter:25,30        □ Material:NBR(N),Silicone(S)
    ◇ Vacuum port connection:04,06,08

    Model A D ○ Pad Diameter P Adaptor
    Model
    25 30
    C-ZPR○J□-◇-B5 M5×0.8 5 42.5 44.5 ZPR3-◇-B5
    C-ZPR○J□-◇-B6 M6×1.0 6 ZPR3-◇-B6
    C-ZPR○J□-◇-B8 M8×1.25 8 ZPR3-◇-B8
    ○ Symbol of pad diameter:25,30            □ Material:NBR(N),Silicone(S)
    ◇ Vacuum port connection:04,06,08

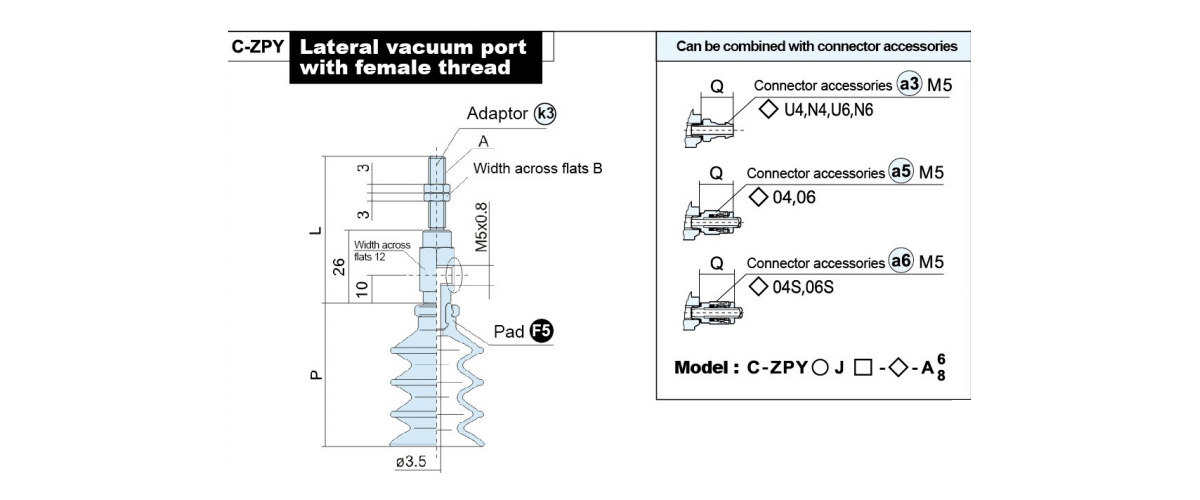

    Model A B L ○ Pad  Diameter       P Adaptor
    Model
    25 30
    C-ZPY○J□-B5-A6 M6×1.0 8 54 42.5 44.5 ZPY3-B5-A6
    C-ZPY○J□-B5-A8 M8×1.0 12 44 ZPY3-B5-A8
    ○ Symbol of pad diameter:25,30       □ Material:NBR(N),Silicone(S)

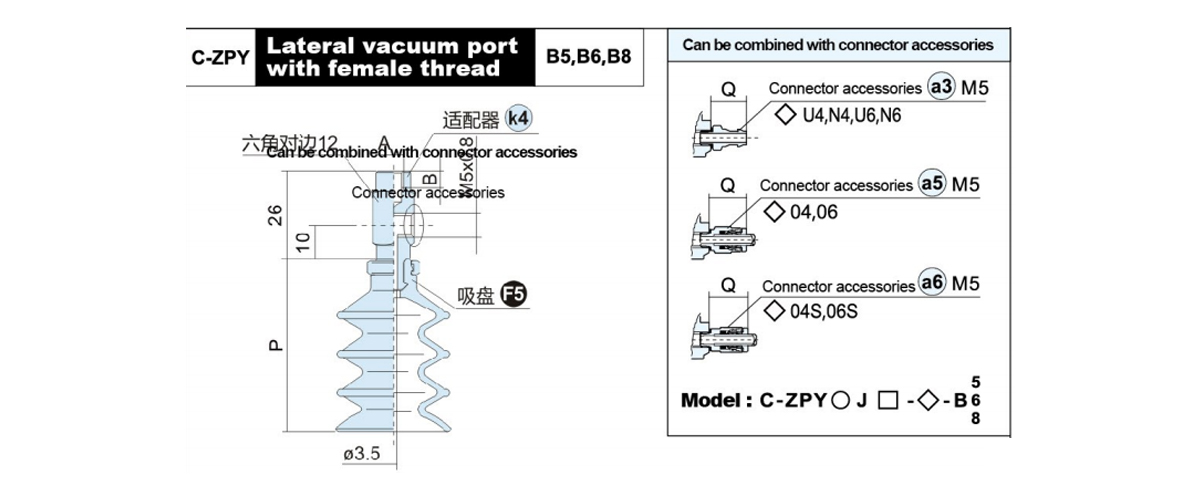

    Model A B ○ Pad Diameter P Adaptor
    Model
    25 30
    C-ZPY○J□-B5-B5 M5×0.8 5 42.5 44.5 ZPY3-B5-B5
    C-ZPY○J□-B5-B6 M6×1.0 6 ZPY3-B5-B6
    C-ZPY○J□-B5-B8 M8×1.25 8 ZPY3-B5-B8
    ○ Symbol of pad diameter:25,30       □ Material:NBR(N),Silicone(S)

    Model B C L ○ Pad Diameter P m1 i4
    Bumper Support Model
    25 30
    C-ZPT○J□●10-B5-A10 10 23 47 42.5 44.5 ZPT3-●10-B5-A10
    C-ZPT○J□●20-B5-A10 20 51 85 ZPT3-●20-B5-A10
    C-ZPT○J□●30-B5-A10 30 95 ZPT3-●30-B5-A10
    C-ZPT○J□●40-B5-A10 40 77 131 ZPT3-●40-B5-A10
    C-ZPT○J□●50-B5-A10 50 141 ZPT3-●50-B5-A10
    ○ Symbol of pad diameter:25,30
    □ Buffer stroke(mm):10,20,30,40,50
    ■ Material:NBR(N),Silicone(S)
    ● Height    compensator    type:Rotative(J)  Unable   to   rotate(K)

    Model B C L ○ Pad Diameter P m2 i4
    Bumper Support Model
    25 30
    C-ZPT○J□●10-B5-A14 10 50 77 42.5 44.5 ZPT3-●10-B5-A14
    C-ZPT○J□●20-B5-A14 20 81 ZPT3-●20-B5-A14
    C-ZPT○J□●30-B5-A14 30 91 ZPT3-●30-B5-A14
    C-ZPT○J□●50-B5-A14 50 75 136 ZPT3-●50-B5-A14
    C-ZPT○J□●10-B01-A14 10 50 78.5 ZPT3-●10-B01-A14
    C-ZPT○J□●20-B01-A14 20 84 ZPT3-●20-B01-A14
    C-ZPT○J□●30-B01-A14 30 94 ZPT3-●30-B01-A14
    C-ZPT○J□●50-B01-A14 50 75 139 ZPT3-●50-B01-A14
    ○ Symbol of pad diameter:25,30
    ■ Buffer stroke(mm):10,20,30,40,50
    □     Material:NBR(N),Slicone(S)
    ●  Height  compensator  type:Rotative(J)
    Unable to rotate(K)

    Model B C L ○ Pad Diameter     P m3 j4
    Bumper Support Model
    25 30
    C-ZPR○J□●10-◇-A10 10 23 45 42.5 44.5 ZPR3-●10-◇-A10
    C-ZPR○J□●20-◇-A10 20 51 83 ZPR3-●20-◇-A10
    C-ZPR○J□●30-◇-A10 30 93 ZPR3-●30-◇-A10
    C-ZPR○J□●40-◇-A10 40 77 129 ZPR3-●40-◇-A10
    C-ZPR○J□●50-◇-A10 50 139 ZPR3-●50-◇-A10
    ○  Symbol  of  pad  diameter:25,30         □       Material:NBR(N),Silicone(S)
    ◇Vacuum   port   connection:04,06,08    ●   Height   compensator  type:Rotative(J) Unable  to  rotate(K)

    Model B C L ○ Pad Diameter     P m3 k4
    Bumper Support Model
    25 30
    C-ZPY○J□●10-B5-A10 10 23 45 42.5 44.5 ZPY3-●10-B5-A10
    C-ZPY○J□●20-B5-A10 20 51 83 ZPY3-●20-B5-A10
    C-ZPY○J□●30-B5-A10 30 93 ZPY3-●30-B5-A10
    C-ZPY○J□●40-B5-A10 40 77 129 ZPY3-●40-B5-A10
    C-ZPY○J□●50-B5-A10 50 139 ZPY3-●50-B5-A10
    ○  Symbol of pad diameter:25,30
    □ Material:NBR(N),Silicone(S)
    ■ Buffer stroke(mm):10,20,30,40,50
    ● Height compensator type:Rotative(J) Unable to rotate(K)

Relaterade produkter

Blogg & Nyheter

Våra senaste nyheter &
Blogg

Visa mer

Äkta pålitlig kvalitet utmärker sig naturligt.

Val kommer från förtroende, och samarbete kommer från ärlighet.

  • F: Hur snart kan vi få svar efter att vi skickat en förfrågan till dig?

    Vi kommer att svara dig inom 24 timmar efter att vi mottagit förfrågan inom arbetsdagar.

  • F: Är du en direkt tillverkare eller ett handelsföretag?

    Vi är en tillverkare och vi har en egen internationell försäljningsavdelning. Så vi kan producera och sälja helt själva.

  • F: Kan du göra skräddarsydda produkter?

    Ja, vi kan utveckla och producera produkter enligt ritningar eller prover från kunderna.

  • F: Hur garanterar ditt företag produktkvalitet?

    Först och främst kommer vi att göra inspektionen efter varje process. För de färdiga produkterna kommer vi att göra 100 % inspektion enligt kundernas krav och den internationella standarden.

  • F: Var exporteras dina produkter huvudsakligen till?

    Våra produkter exporteras huvudsakligen till Tyskland, USA, Danmark och mer än ett dussin länder i Europa och Nordamerika
